SKU:

KEK00F

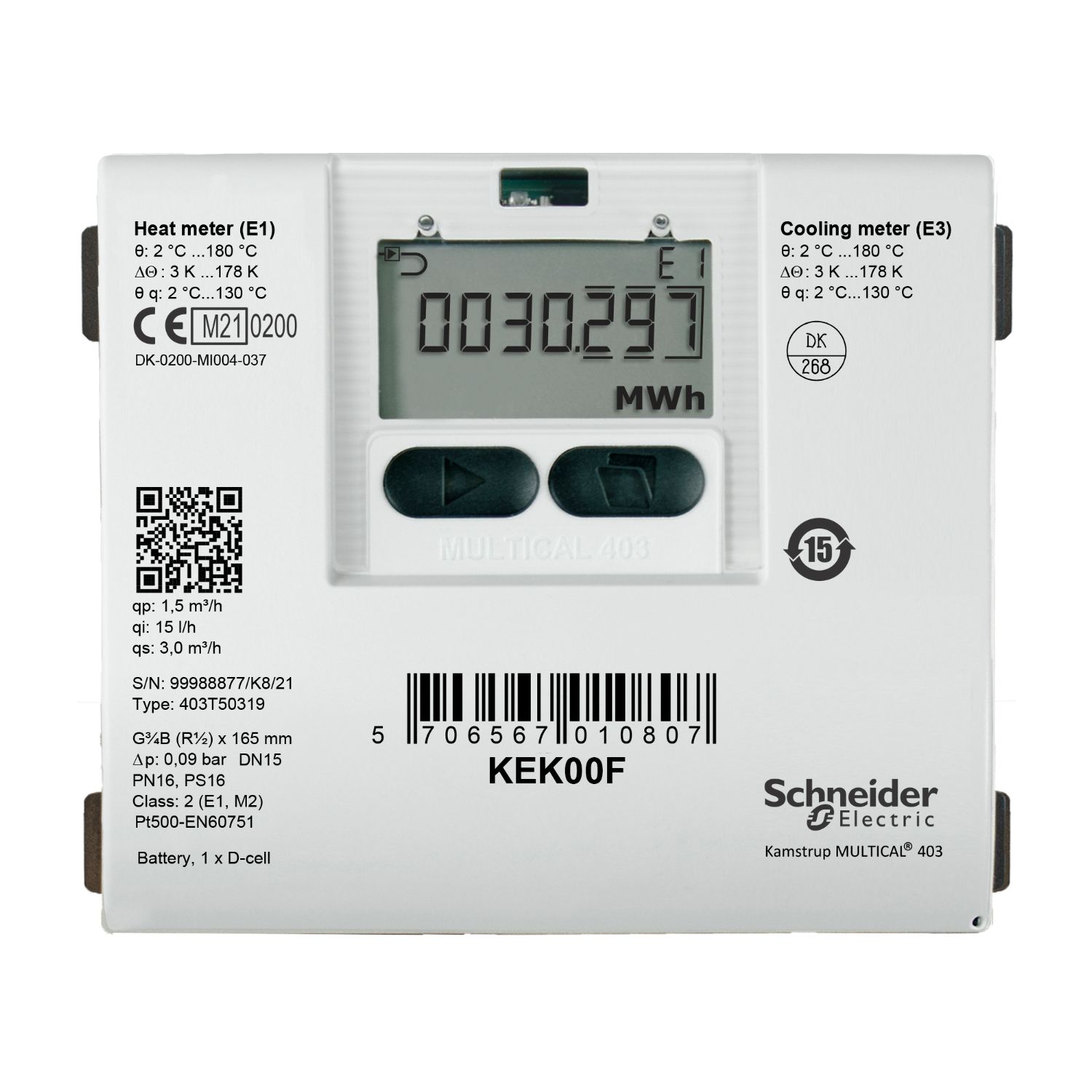

KE Series Heating And Cooling Meter, R½ Threaded Brass, 1.5 m³/h Nominal, Flow Meter

$1,352.59
Available for Shipping : 28-Nov-2024
KE Series Heating And Cooling Meter, R½ Threaded Brass, 1.5 m³/h Nominal, Flow Meter
Manufacturer: Schneider Electric
KE Series Heating And Cooling Meter, R½ Threaded Brass, 1.5 m³/h Nominal, Flow Meter

Products specifications

Attribute name Attribute value
Main
Device application sub-metering, energy metering
Device composition keypad
Fitting material brass
Operating fluid temperature 2-130 °C
Depth 48 mm
Fitting type threaded
Colour off white
Display type LCD
Output type analog
Width 110 mm
Enclosure material thermoplastic, PC 10 % GF with TPE
IP degree of protection IP65
Measurement temperature 2-130 °C
Sensor type thermistor temperature, ultrasonic sensor flow
Relative humidity 0-100 % RH, non-condensing
Flow measurement range 0.015...3 m3/h
Temperature measurement accuracy +/- 4 %
Ambient air temperature for storage -25-60 °C
Pipe material polymer, metallic
Flow measurement accuracy +/- 2 %
Net weight 0.9 kg
Controlled fluid water
Location plant room
Product or component type heat and cool energy meter
[Ui] rated insulation voltage 3.75 kV
Type of measurement heating & cooling
Fitting size G3/4B (R1/2)
Standards EN 1434 class C (MID Class E2), EN 1434 class A (MID Class E1)
Range of product KE Series
Calibration certificate yes
Ambient air temperature for operation 5-55 °C
Height 67 mm
[Us] rated supply voltage 12...36 V AC, 161...264 V AC, 24 V AC, 230 V AC
Network frequency 60 Hz, 50 Hz
Storage Relative Humidity 0-100 % RH, non-condensing
Product certifications MID, BEK1178
Complementary
Function available totalizer resetable, logging
Display resolution 7 digits
Power consumption in W 1 W
Maximum sensing distance 110 mm
Clamping connection capacity <= 1 mm²
Pressure drop 0.14 bar
Totalizer quantities 1
Product brand Schneider Electric
Field programmable Yes
Energy units GJ, kWh, MWh
Meter location flow line
Pressure rating PN16
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.0 cm
Package 1 Width 24.6 cm
Package 1 Length 24.5 cm
Package 1 Weight 900.0 g
