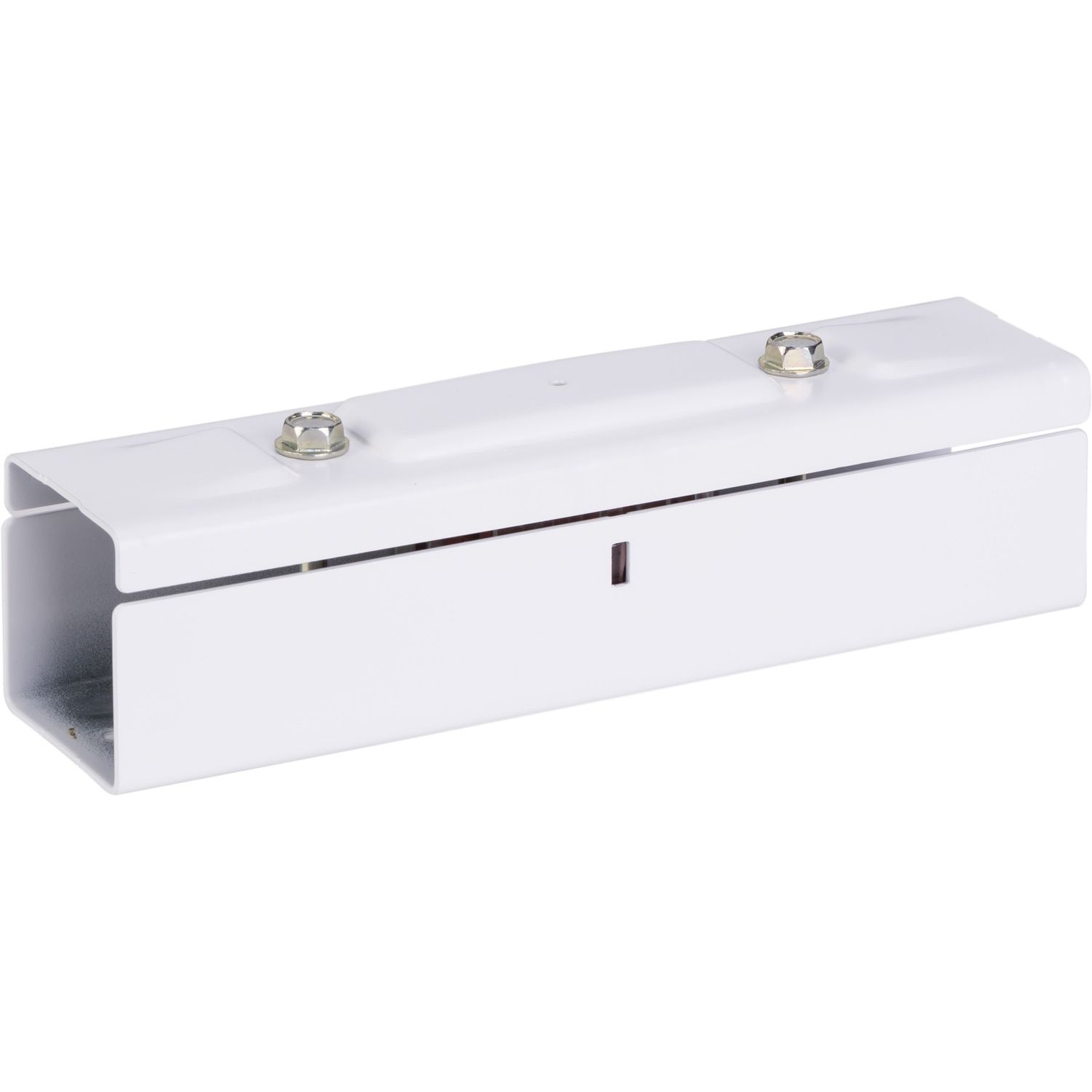

Picture of Additional jointing unit, Canalis KBB, 2 circuits
SKU:

KBB40ZJ44W

Additional jointing unit, Canalis KBB, 2 circuits

$40.52 INC GST
Available for Shipping : 30-Mar-2026
Additional jointing unit, Canalis KBB, 2 circuits
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 30-Mar-2026
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is an additional jointing unit for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This element is clipped on the lines to make the electrical junction. It embeds 2 independent electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
Product compatibility KBB
Colour white (RAL 9003)
[Ie] rated operational current 40 A, 25 A
Range Canalis
Product or component type feed unit jointing
Range of product Canalis
Complementary
[Ue] rated operational voltage 230...400 V
Device application lighting, power socket distribution
Control type without
Net weight 640 g
Number of circuits 2
Environment
IP degree of protection IP55 conforming to IEC 60529
Standards IEC 61439-6, IEC 60439-2
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.900 cm
Package 1 Width 5.500 cm
Package 1 Length 20.000 cm
Package 1 Weight 536.900 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.784 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 43.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 47.104 kg
