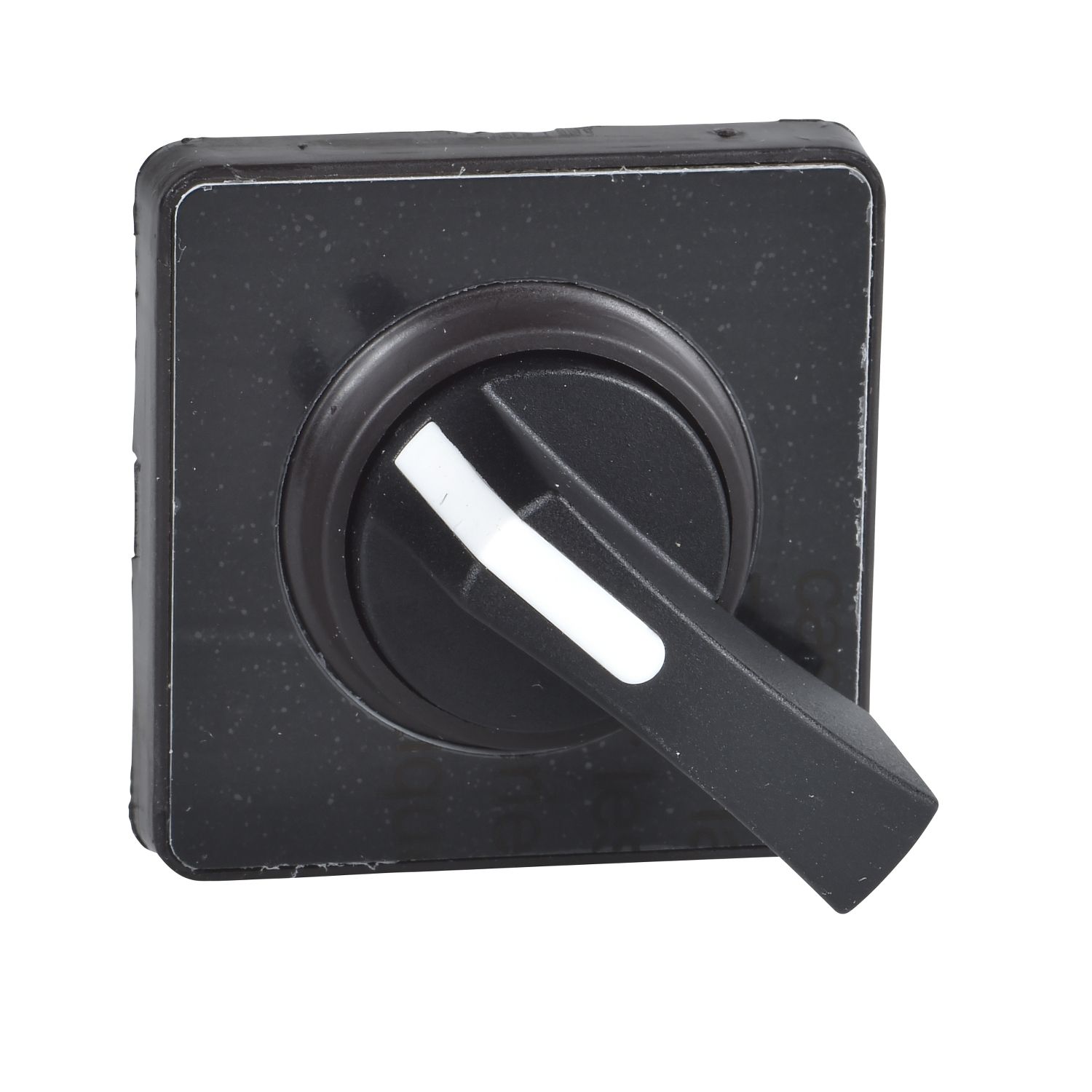

Picture of Cam switch Operating head, Harmony K, for rear mounting, plastic, matt black, 45 x 45 mm, black handle, blank for engraving
SKU:

KAE1H

Cam switch Operating head, Harmony K, for rear mounting, plastic, matt black, 45 x 45 mm, black handle, blank for engraving

Old price: $58.52 INC GST
$45.65 INC GST
Available for Shipping : 06-Jan-2026
Cam switch Operating head, Harmony K, for rear mounting, plastic, matt black, 45 x 45 mm, black handle, blank for engraving
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This Harmony KAE1H is a black operating head 45 x 45mm with black handle, blank for engraving. It is part of the range Harmony K diameter 16-22mm rotary cam switches.

Products specifications

Attribute name Attribute value
Main
Rotary handle padlocking without
Cam switch head type with front plate 45 x 45 mm
Product compatibility rear mounting bodies 12 and 20 A by 4 holes
Type of operator black handle, length = 35 mm
Component name KAE
Product or component type cam switch operating head
Presentation of legend with mat black legend
Range of product Harmony Series K
Complementary
CAD overall depth 60 mm
CAD overall width 45 mm
Compatibility code KAE
Mechanical durability 1000000 cycles
CAD overall height 45 mm
Net weight 0.029 kg
Length 35 mm
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP40 conforming to NF C 20-010, IP40 conforming to IEC 529
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 6.6 cm
Package 1 Length 8.0 cm
Package 1 Weight 46.0 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.79 kg
