SKU:

KAC1S

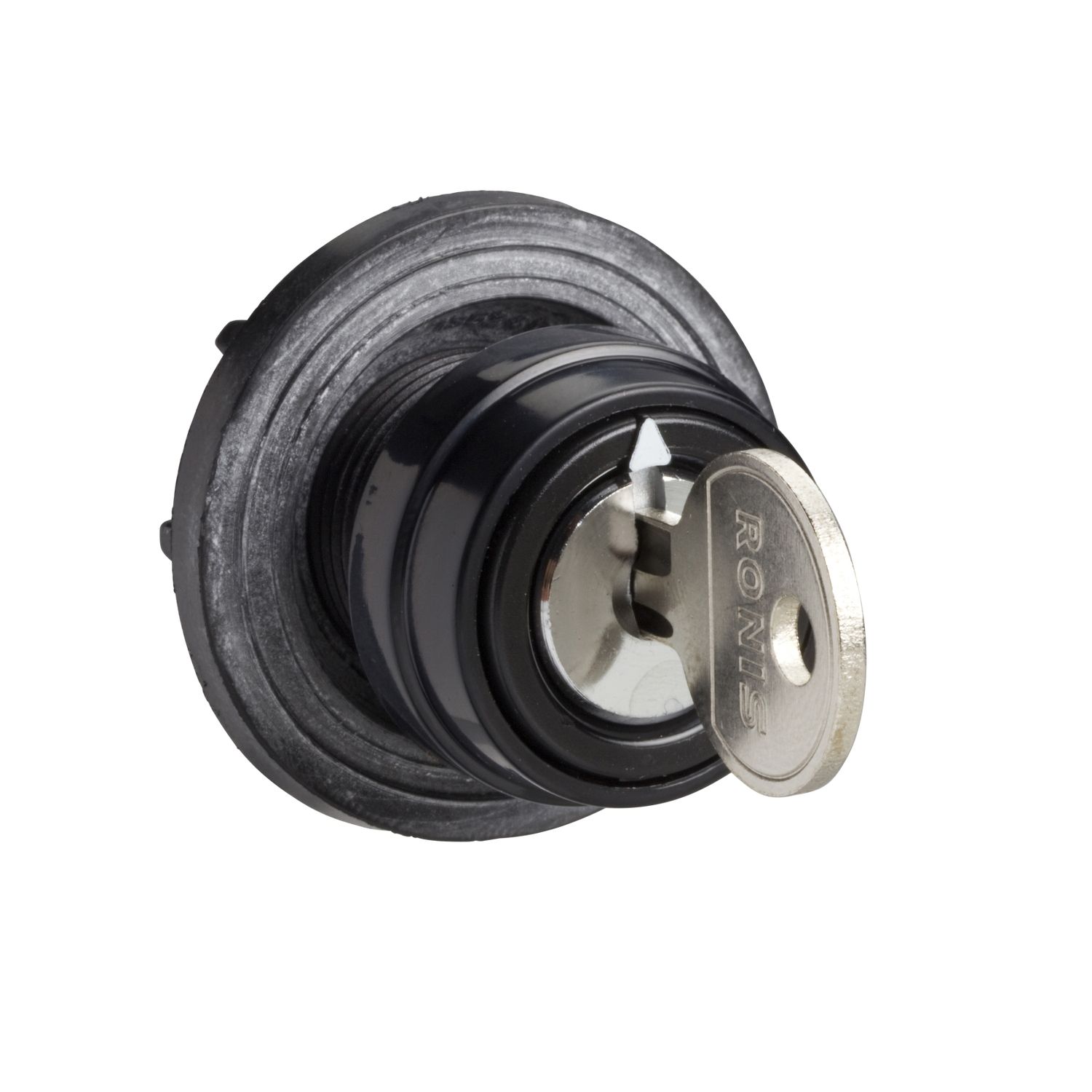

Cam switch operating head, Harmony K, Ã˜ 22mm, plastic, 45x45mm plate, matt black legend, key operated, 601 A

Old price: $163.68 INC GST

Price: $127.67 INC GST

Qty:

Available for Shipping : 06-Jan-2026

Cam switch operating head, Harmony K, Ã˜ 22mm, plastic, 45x45mm plate, matt black legend, key operated, 601 A

Manufacturer: Schneider Electric

Delivery date: 06-Jan-2026

Declaration of conformity

Catalog

Environmental Disclosure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Rotary handle padlocking	without
Cam switch head type	with front plate 45 x 45 mm
Product compatibility	front mounting bodies 12 and 20 A by Ø 22 mm hole
Switching angle	90 °, 45 °
Type of operator	key 601A
Component name	KAC
Product or component type	cam switch operating head
Presentation of legend	with mat black legend
Range of product	Harmony Series K
Complementary
CAD overall depth	69 mm
CAD overall width	45 mm
Compatibility code	KAC
Mechanical durability	1000000 cycles
CAD overall height	45 mm
Net weight	0.063 kg
Environment
Protective treatment	TC
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP65 conforming to NF C 20-010, IP65 conforming to IEC 529
Shock resistance	30 gn conforming to IEC 68-2-27
Vibration resistance	5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Ambient air temperature for operation	-25-55 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.6 cm
Package 1 Width	6.6 cm
Package 1 Length	8.0 cm
Package 1 Weight	69.0 g
Unit Type of Package 2	2
Number of Units in Package 2	60
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	4.67 kg
