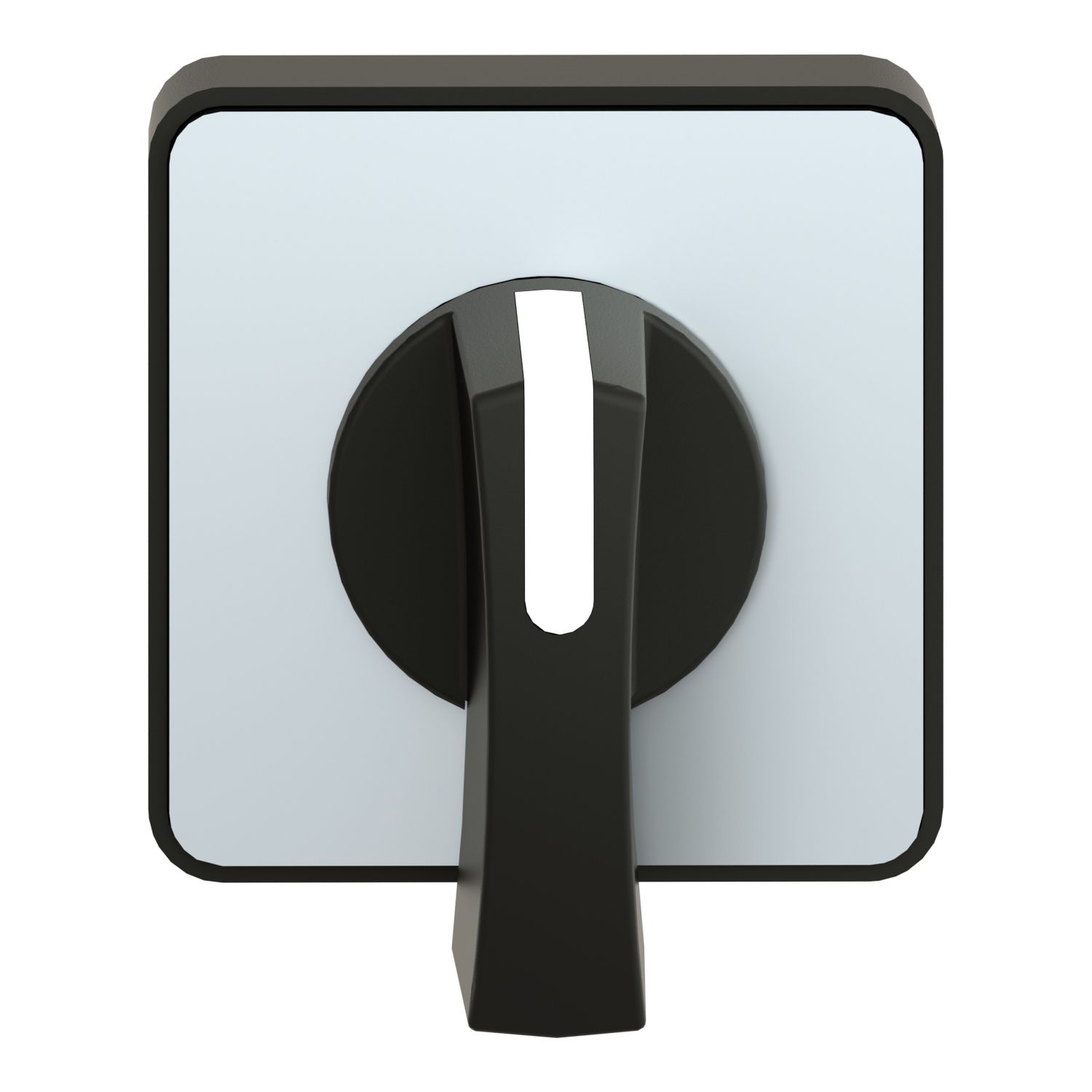

Picture of Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle

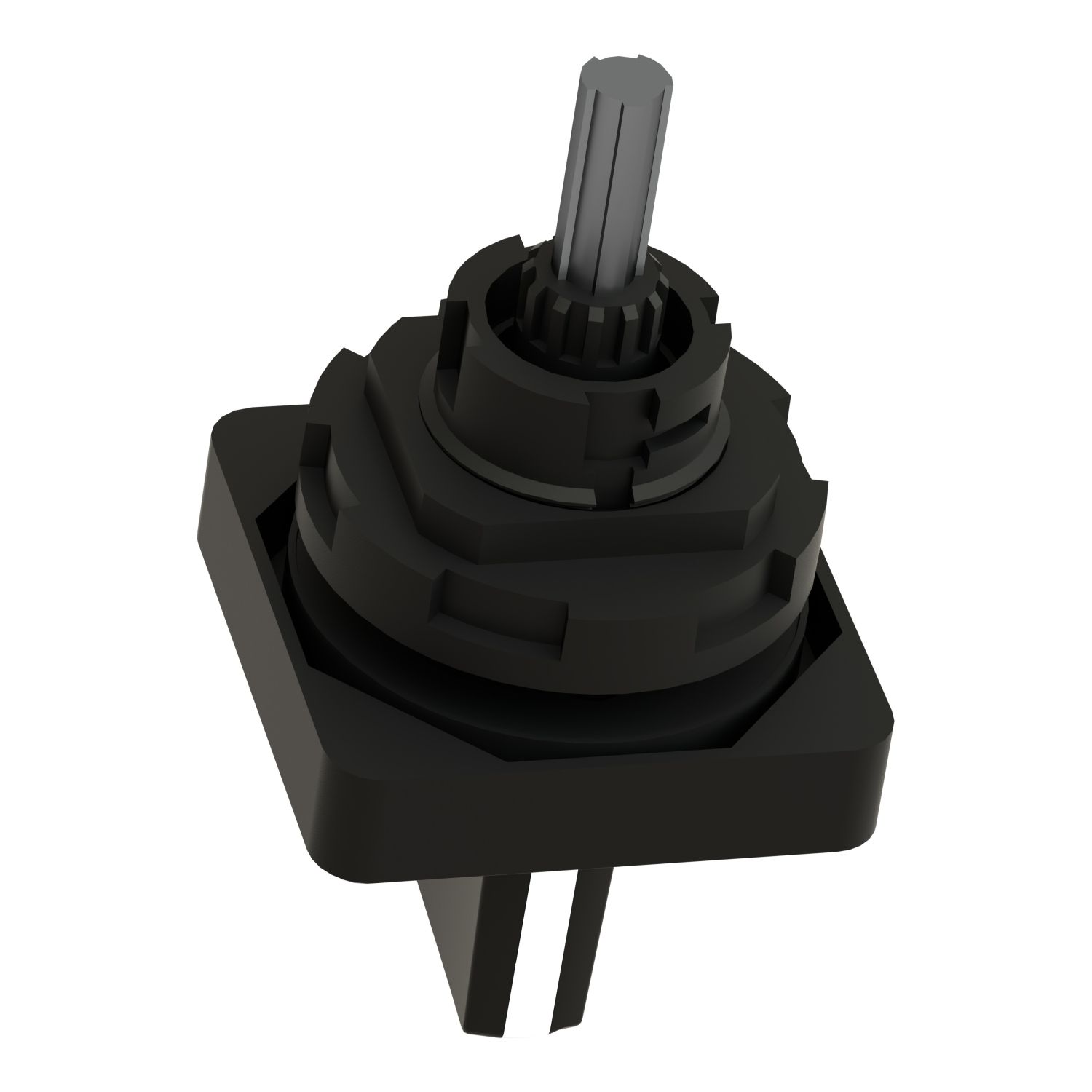

Picture of Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle

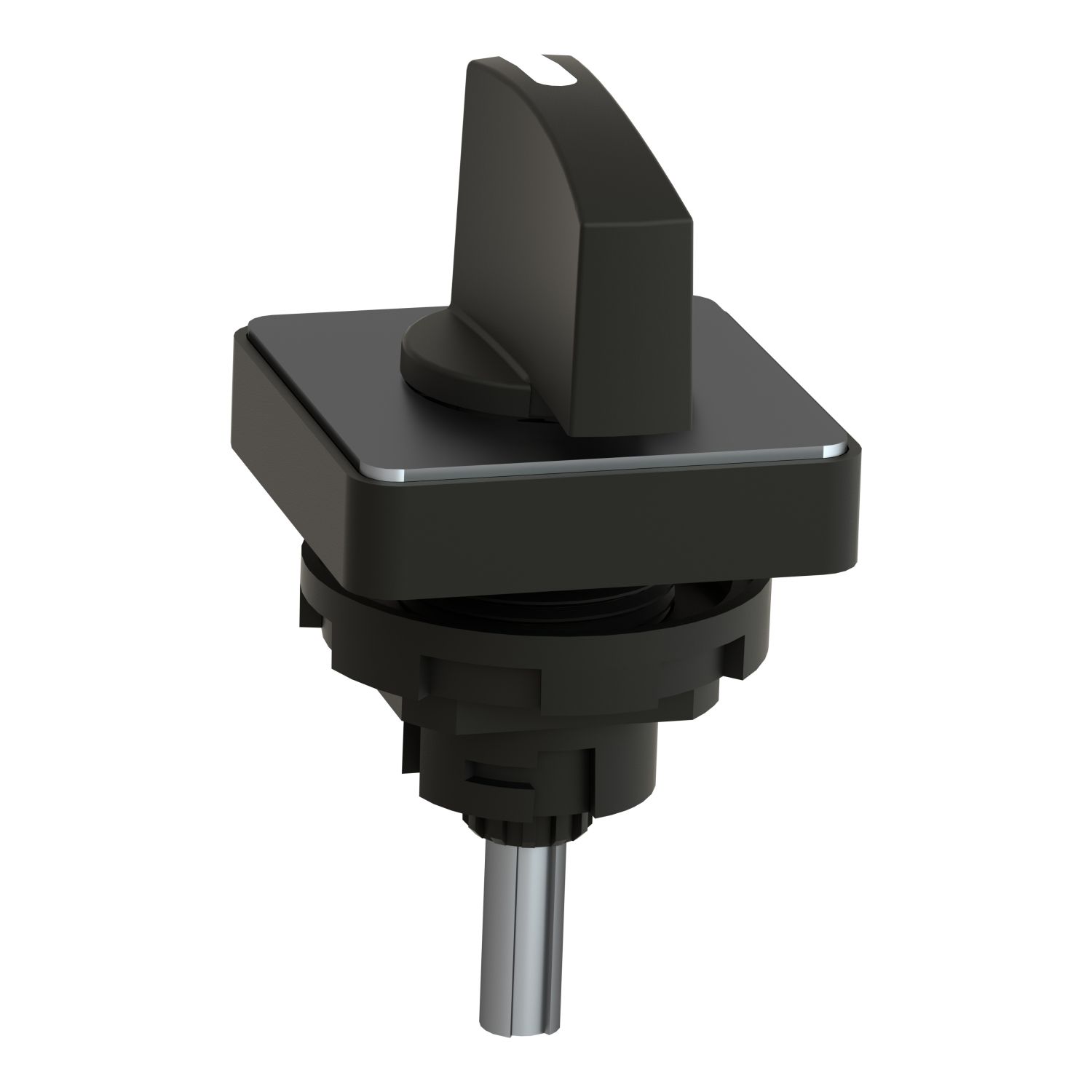

Picture of Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle

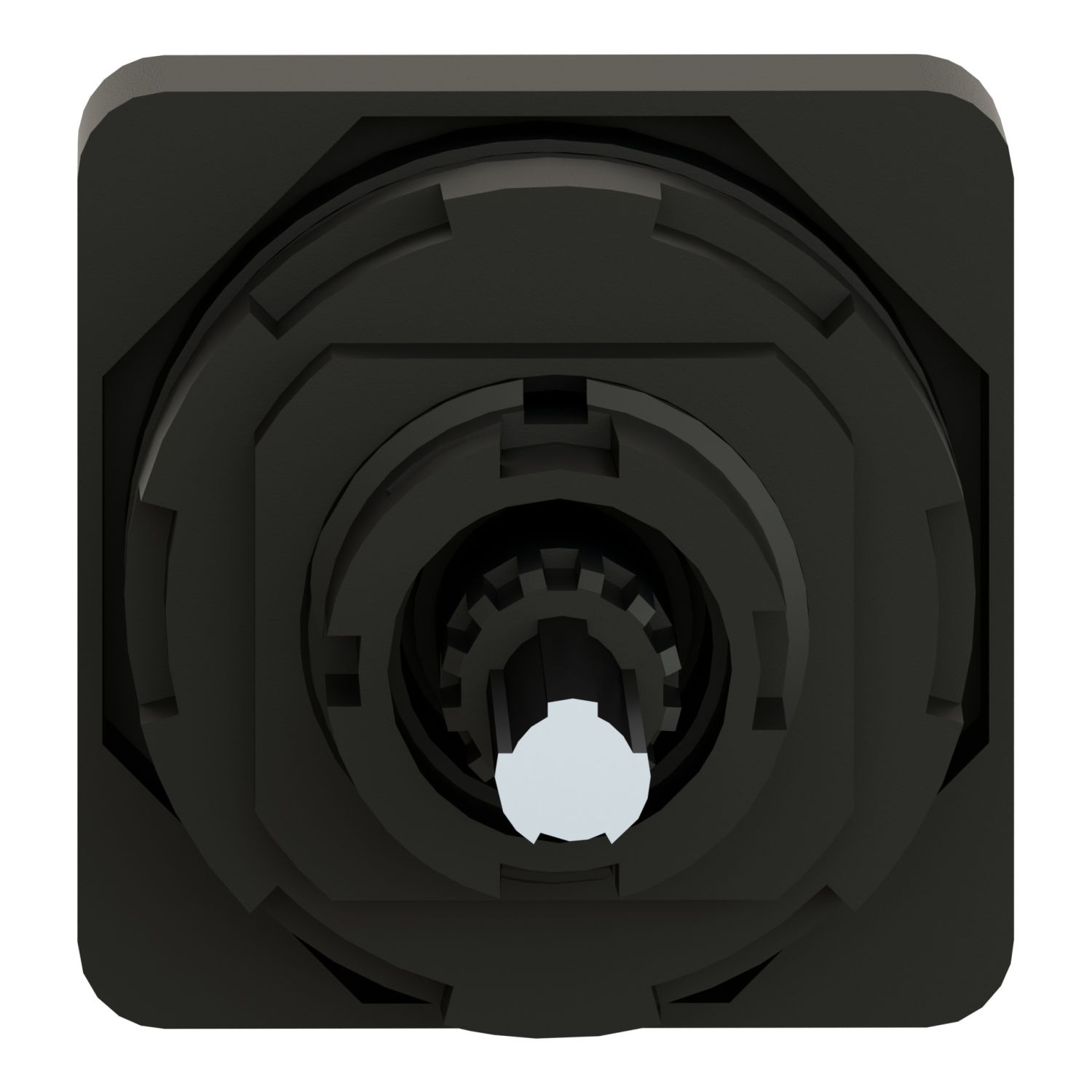

Picture of Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle

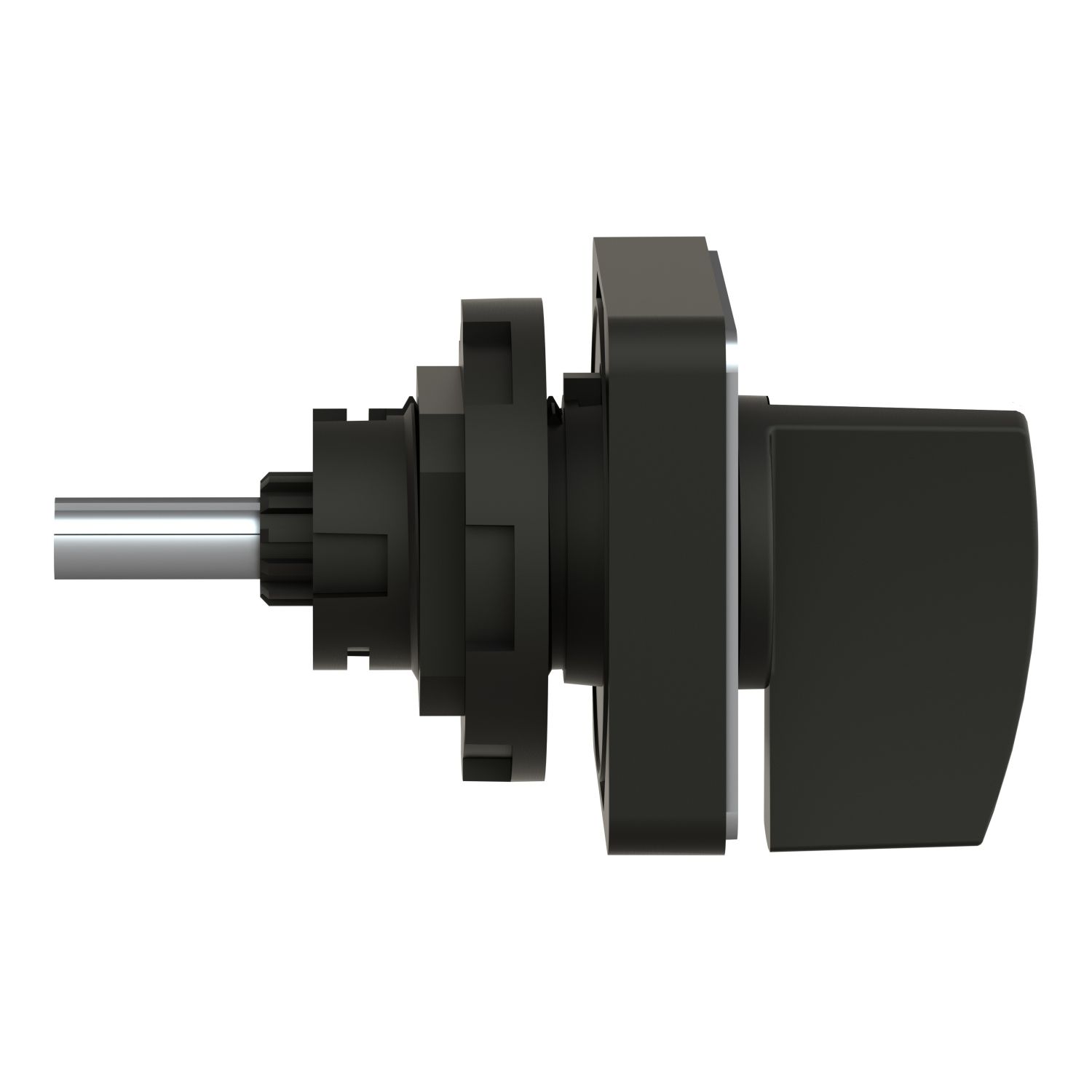

Picture of Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle

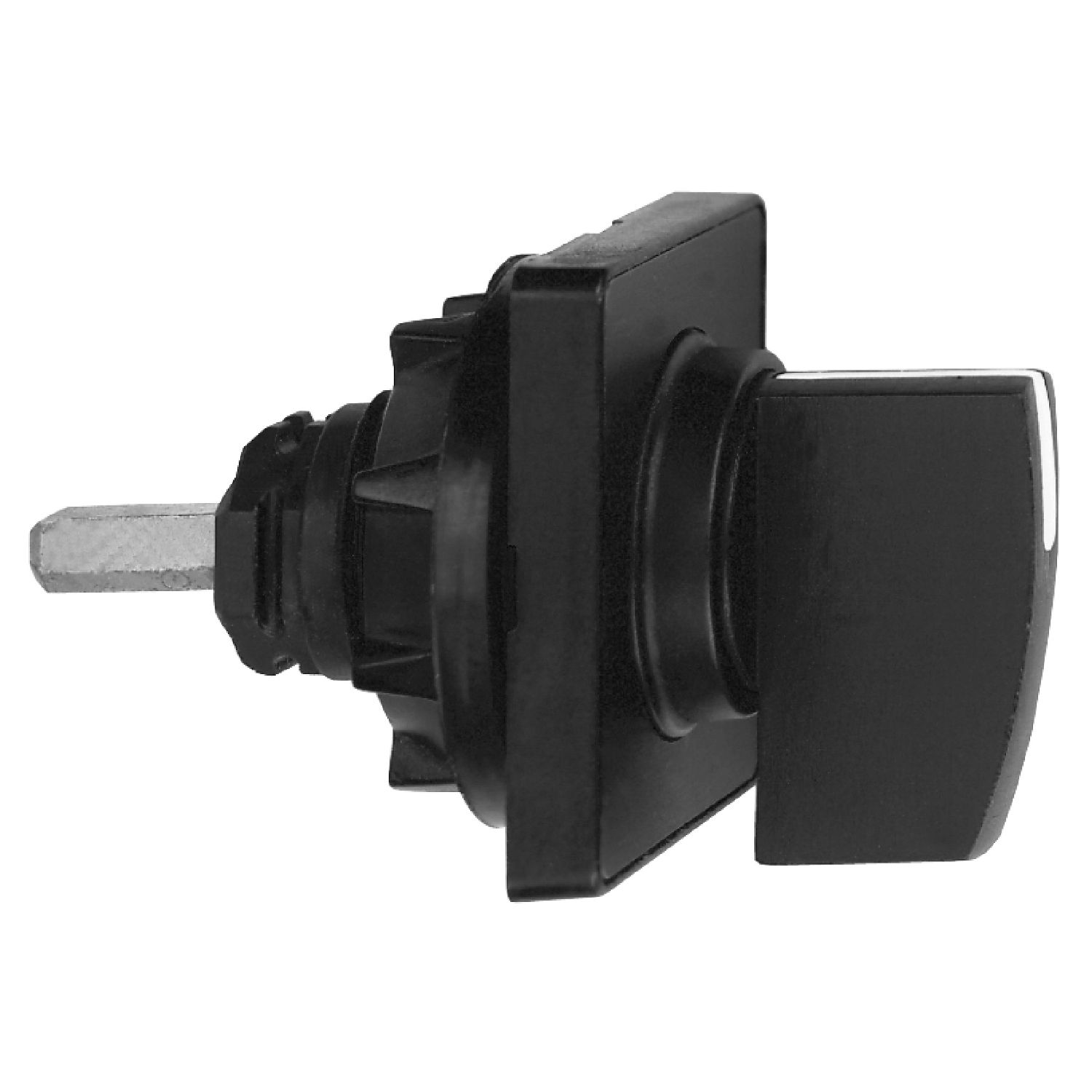

Picture of Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle

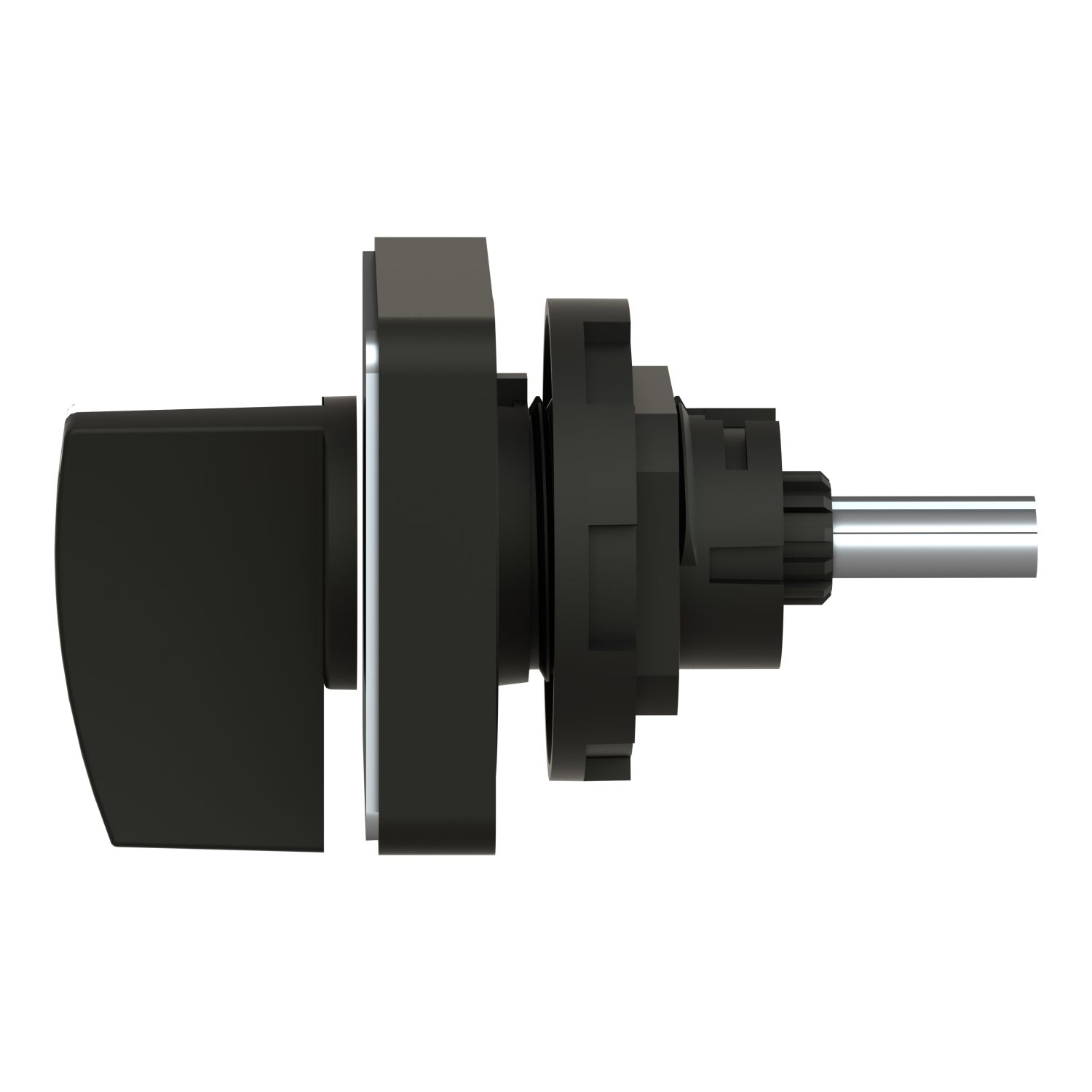

Picture of Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle
Picture of Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle
SKU:

KAC1H

Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle

Old price: $42.79 INC GST
$33.38 INC GST
Available for Shipping : 06-Apr-2026
Cam switch operating head, Harmony K1, K2, 22mm, plastic, 45x45mm plate, mat black legend, black handle
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony KAC operating head is part of the range Harmony K rotary cam switches It is supplied with 45mm x 45mm front plate and black handle 35mm length. It is compatible with diameter 22mm front mounting bodies. It is supplied with blank legend (for engraving by user). It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 48g.

Products specifications

Attribute name Attribute value
Main
Rotary handle padlocking without
Cam switch head type with front plate 45 x 45 mm
Product compatibility front mounting bodies 12 and 20 A by Ø 22 mm hole
Type of operator black handle, length = 35 mm
Component name KAC
Product or component type cam switch operating head
Presentation of legend with mat black legend
Range of product Harmony Series K
Complementary
CAD overall depth 77 mm
CAD overall width 45 mm
Compatibility code KAC
Mechanical durability 1000000 cycles
CAD overall height 45 mm
Net weight 0.048 kg
Length 35 mm
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to NF C 20-010, IP65 conforming to IEC 529
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.100 cm
Package 1 Width 7.100 cm
Package 1 Length 8.500 cm
Package 1 Weight 59.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.064 kg
Unit Type of Package 3 3
Number of Units in Package 3 480
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 42.524 kg
