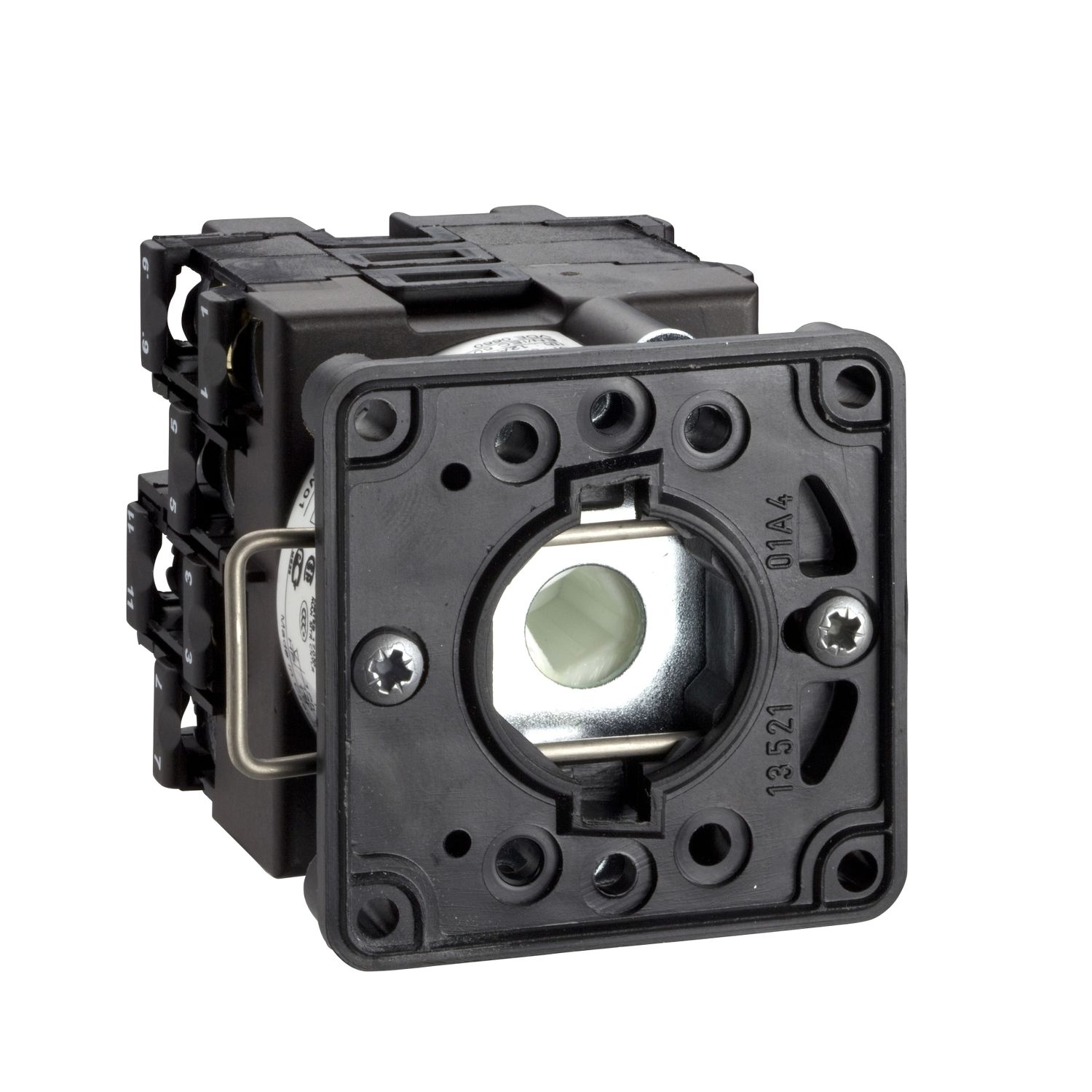

Picture of Cam switch body for BCD encoded withoutput switch, Harmony K, Ø 22mm, plastic, 1 pole, 12 positions without 0 position, 45°, 12A
SKU:

K1D032B

Cam switch body for BCD encoded withoutput switch, Harmony K, Ø 22mm, plastic, 1 pole, 12 positions without 0 position, 45°, 12A

Old price: $159.94 INC GST
$124.75 INC GST
Available for Shipping : 15-Dec-2025
Cam switch body for BCD encoded withoutput switch, Harmony K, Ø 22mm, plastic, 1 pole, 12 positions without 0 position, 45°, 12A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Off position without Off position
Bezel material plastic
Switching positions right: 0°-30°-60°-90°-120°-150°-180°-210°-240°-270°-300°-330°
Mounting location front
Component name K1
Cam switch function BCD encoded output switch
[Ith] conventional free air thermal current 12 A
Product or component type cam switch body
Sub-assembly composition contact blocks + fixing plate
Fixing mode Ø 22 mm hole
Range of product Harmony K
Complementary
[Ie] rated operational current AC 3 A at 230 V AC-15 conforming to IEC 947-5-1, 2 A at 400 V AC-15 conforming to IEC 947-5-1, 1 A at 500 V AC-15 conforming to IEC 947-5-1, 5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3, 4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3, 4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3, 3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3, 3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3, 2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3, 2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3, 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
Rated operational power in W 8300 W AC-21, 400 V 3 phases conforming to IEC 947-3, 600 W AC-3, 230 V 1 phase conforming to IEC 947-3, 4800 W AC-21, 230 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 690 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 500 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 400 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 400 V 1 phase conforming to IEC 947-3, 1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3, 1100 W AC-3, 230 V 3 phases conforming to IEC 947-3, 10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3
Compatibility code K1D
Mechanical durability 1000000 cycles
Contact operation slow-break
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 10000 A
Maximum operating rate 8.333 cyc/mn AC-15, 2.5 cyc/mn AC-3, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-21
Electrical durability 500000 cycles AC-3, 500000 cycles AC-23, 1000000 cycles AC-21, 1000000 cycles AC-15
Electrical connection captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Switching angle 30 °
Number of decimal 12
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 4 kV in isolating function
Net weight 0.11 kg
[Ithe] conventional enclosed thermal current 10 A
Short-circuit protection 16 A cartridge fuse, type gG
Environment
Protective treatment TC
Overvoltage category class II conforming to NF C 20-030, class II conforming to IEC 536
Ambient air temperature for storage -40-70 °C
Standards CENELEC EN 50013, IEC 60947-5-1 for control circuit, IEC 60947-3 for power circuit
Product certifications UL 240 V 0.33 hp 1 phase 2 -pole(s), UL 240 V 1 hp 3 phases, CSA 240 V 3 hp 3 phases 2 -pole(s), CSA 240 V 1 hp 1 phase
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 6.500 cm
Package 1 Length 8.000 cm
Package 1 Weight 119.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.101 kg
