Picture of Thorsman installation material, nail plug, with 72 mm screw, TPH-10x67,set of 20
SKU:

IMT39082

Thorsman installation material, nail plug, with 72 mm screw, TPH-10x67,set of 20

$7.99 INC GST
This product has a minimum quantity of 20
Available for Shipping : 13-Jan-2026
Thorsman installation material, nail plug, with 72 mm screw, TPH-10x67,set of 20
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Catalog
Brochure
Product Page Link
Product Data Sheet

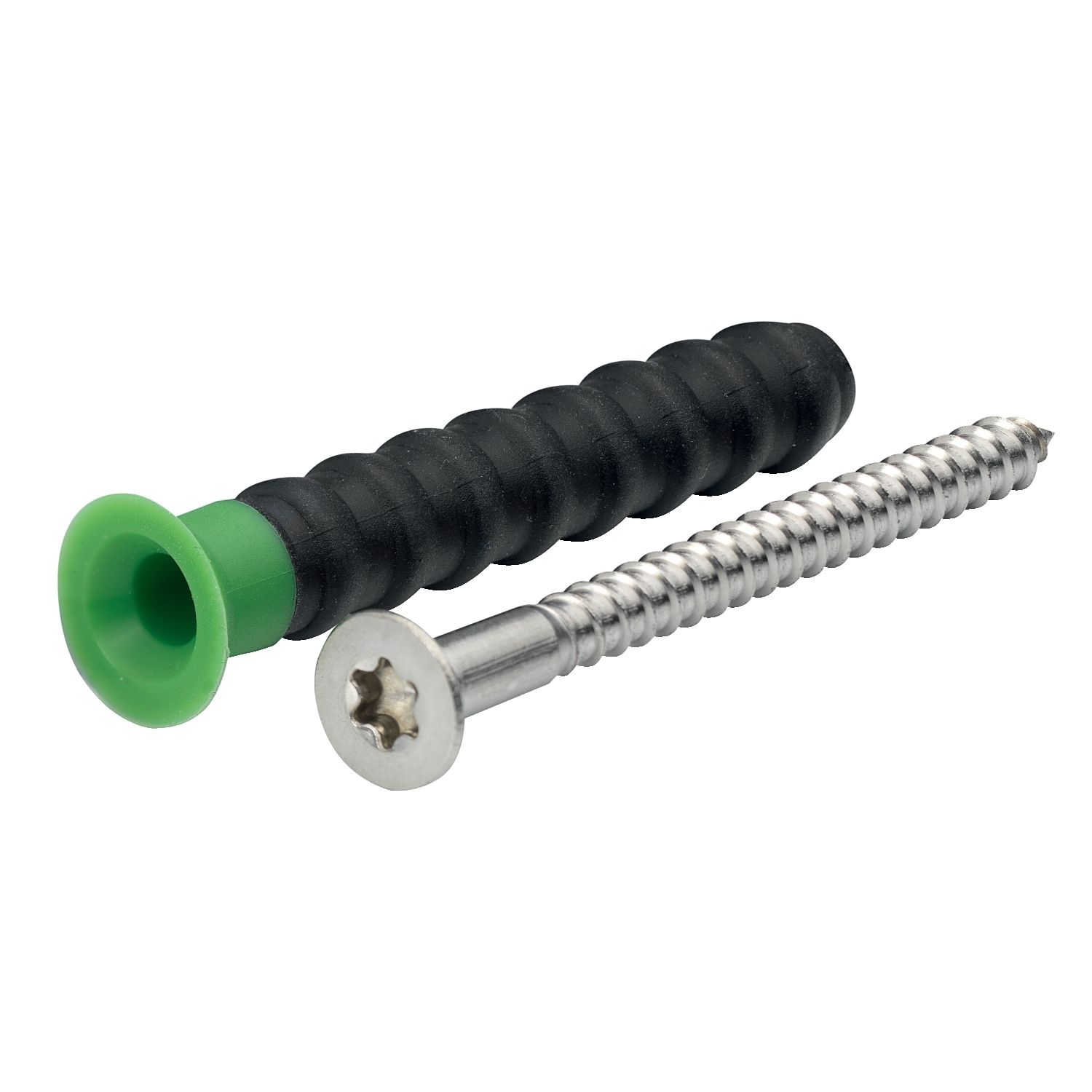

This Thorsman nail plug is green/black in colour. It comes with a screw. The dimension (L) 67 mm. It is made of acid-proof stainless steel making it resistant and durable. It is sold in set of 20.

Products specifications

Attribute name Attribute value
Main
Screw length 72 mm
Minimum drilling depth 70 mm
Device short name TPH
Provided equipment screw
Product or component type nail plug
Drilling diameter 10 mm
Range of product Thorsman
Complementary
Colour tint green/black
Length 67 mm
Thickness 0-10 mm fixture
Material plug: PA + TPR, screw: acid-proof stainless steel
Practical load capacity shear: 1 kN for concrete C25 2.5 ), pull-out load: 0.8 kN for concrete C25 3 ), shear: 0.7 kN for low density concrete 500 and expanded clay 2.5 ), pull-out load: 0.6 kN for low density concrete 500 and expanded clay 3 )
Atmospheric-corrosivity category C5-M
Diameter 10 mm
Ambient air temperature for operation -20-60 °C
Environment
Quantity per set set of 20
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.200 cm
Package 1 Width 10.600 cm
Package 1 Length 21.800 cm
Package 1 Weight 17.100 g
Unit Type of Package 2 2
Number of Units in Package 2 320
Package 2 Height 15.200 cm
Package 2 Width 29.800 cm
Package 2 Length 39.800 cm
Package 2 Weight 5.802 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 15.200 cm
Package 3 Width 29.800 cm
Package 3 Length 39.800 cm
Package 3 Weight 5.802 kg
Unit Type of Package 4 4
Number of Units in Package 4 15360
Package 4 Height 90.000 cm
Package 4 Width 80.000 cm
Package 4 Length 120.000 cm
Package 4 Weight 262.502 kg
