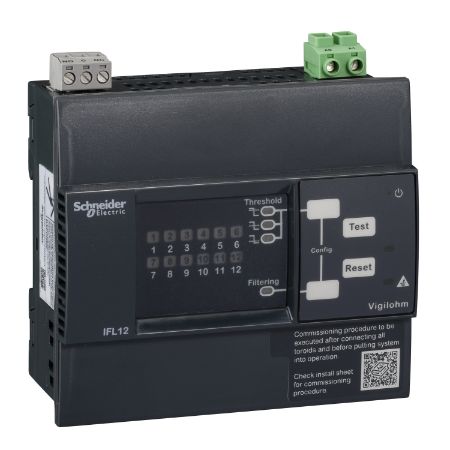

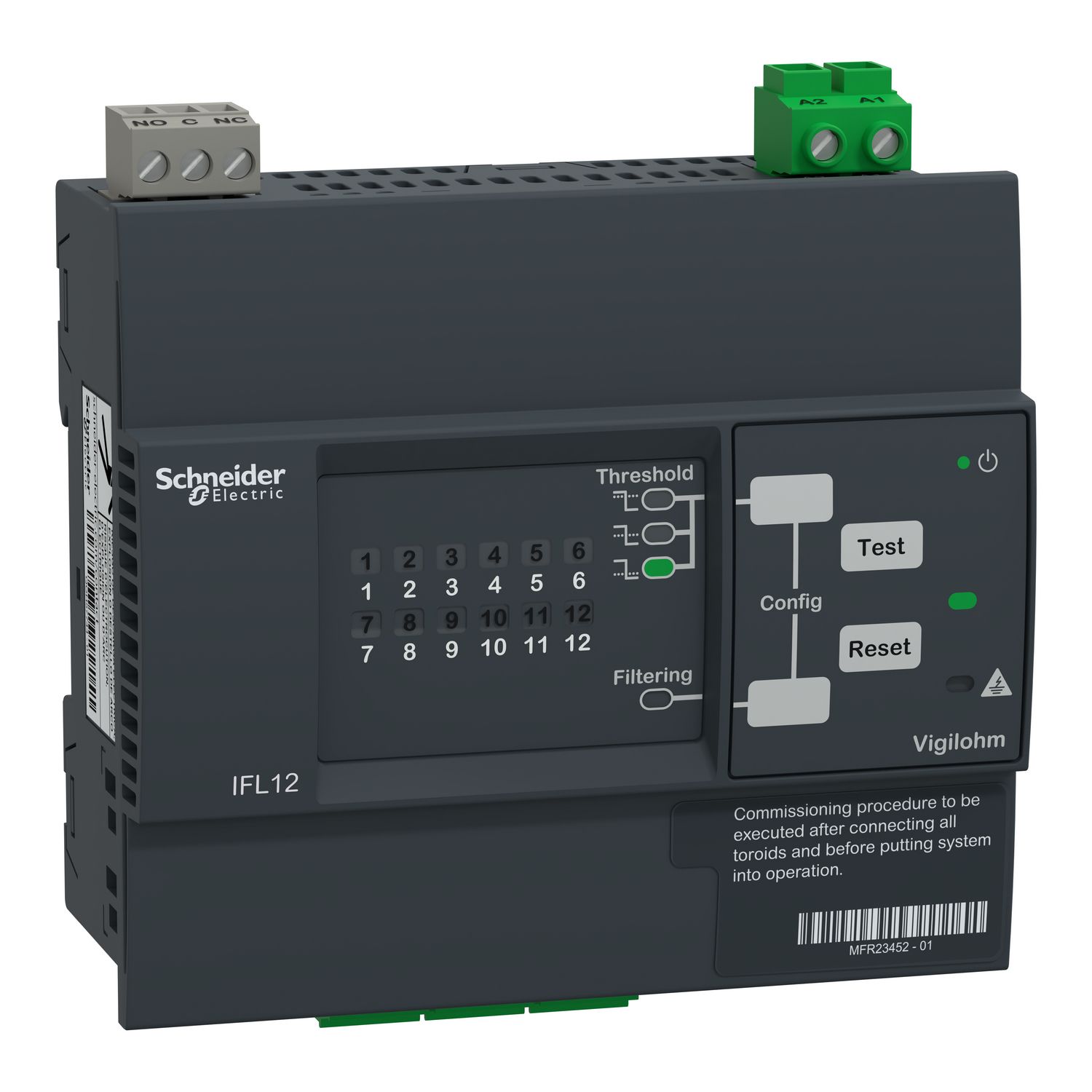

Picture of VIGILOHM 12 CHANNEL FAULT LOCATOR - 100-440VAC/DC
SKU:

IMDIFL12

VIGILOHM 12 CHANNEL FAULT LOCATOR - 100-440VAC/DC

Old price: $2,373.80 INC GST
$2,017.73 INC GST
Available for Shipping : 16-Feb-2026
Product Selector
VIGILOHM 12 CHANNEL FAULT LOCATOR - 100-440VAC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Feb-2026
Circularity Profile
Instruction sheet
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This device belongs to the Vigilohm range designed to monitor ungrounded/IT electrical networks at feeder level, in accordance to installation and products standards This insulation fault location is only possible when it is associated to IM400 series, XM300 or XM200. This device is dedicated to monitoring 12 feeders, AC, DC and ACDC, up to the toroid limit, 1000V. Configuration is set from the front of the device, through the HMI screen. Settings are related to alarm thresholds. It displays which feeder has an insulation fault. Auto-test starts automatically every 5 hours, and on demand. In case the insulation resistance drops below the set threshold, an alarm is triggered thru the IFL output relay and HMI. Once no fault is monitored, the alarm is cleared, the alarm relay is back to normal. The device can be supplied by a 110VAC to 440VAC source or a 110VDC to 440VDC, all with a tolérence of plus or minus 15%.

Products specifications

Attribute name Attribute value
Main
Device short name IFL12
Device application standard environment application, marine application
Electrical circuit type power circuit
Range Vigilohm
Product name Vigilohm IFL
Application medium or low disturbed network
Product or component type insulation fault locator
Earthing system IT
Range of product Vigilohm
Complementary
Threshold setting alarm: high, medium, low
Type of setting alarm threshold: common to all feeders
Signal contacts composition 1 C/O standard
Depth 59 mm
Overvoltage category III
Width 108 mm
Mounting position vertical, horizontal
Insulation shield no
Test function auto test at start and every 5h, manual
Response time <= 5 s
Number of channels 12
Cut-out dimensions 92 x 104 mm
Local signalling yellow flashing 1 LED per channel: transient fault/toroid disconnected, yellow steady 1 LED per channel: insulation fault, green indicator light: configured filtering LED, green indicator light: configured threshold LED, yellow flashing indicator light: transient fault, green indicator light: satisfactory insulation, green/red indicator light: product status, yellow indicator light: insulation fault
Mounting mode clip-on, flush-mounted
Communication port protocol -
[Us] rated supply voltage 100...440 V AC 45...65 Hz +/- 15 %, 100...440 V DC +/- 15 %
Power consumption in VA 20 VA
Net weight 0.5 kg
Material thermoplastic
Connections - terminals toroids inputs: removable screw terminal block0.2-1.5 mm², output relay: removable screw terminal block0.2-2.5 mm², power supply: removable screw terminal block0.2-2.5 mm²
Signalling circuit voltage 48 V - DC at 1 A, 250 V - AC at 6 A
Network rated voltage 0-1000 V - DC, 0-1000 V - AC at 45...65 Hz
Power consumption in W 6 W
Mounting support DIN rail, panel
Height 110 mm
Environment
Operating altitude <= 3000 m
IP degree of protection front face: IP54, case: IP20
Relative humidity 5-92 %
Ambient air temperature for storage -40-85 °C
Standards IEC 61557-9, IEC 60364-5-51, IEC 61010-1, IEC 60364-4-41
Type of installation indoor
Environmental characteristic salt mist conforming to IEC 60068-2-52, exposure to damp heat in service conforming to IEC 60068-2-56, exposure to damp heat not in service conforming to IEC 60068-2-30
Pollution degree 2
Ambient air temperature for operation -25-55 °C
Product certifications cULus, UL, EAC, CE, DNV-GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.500 cm
Package 1 Width 13.500 cm
Package 1 Length 18.500 cm
Package 1 Weight 522.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.690 kg
