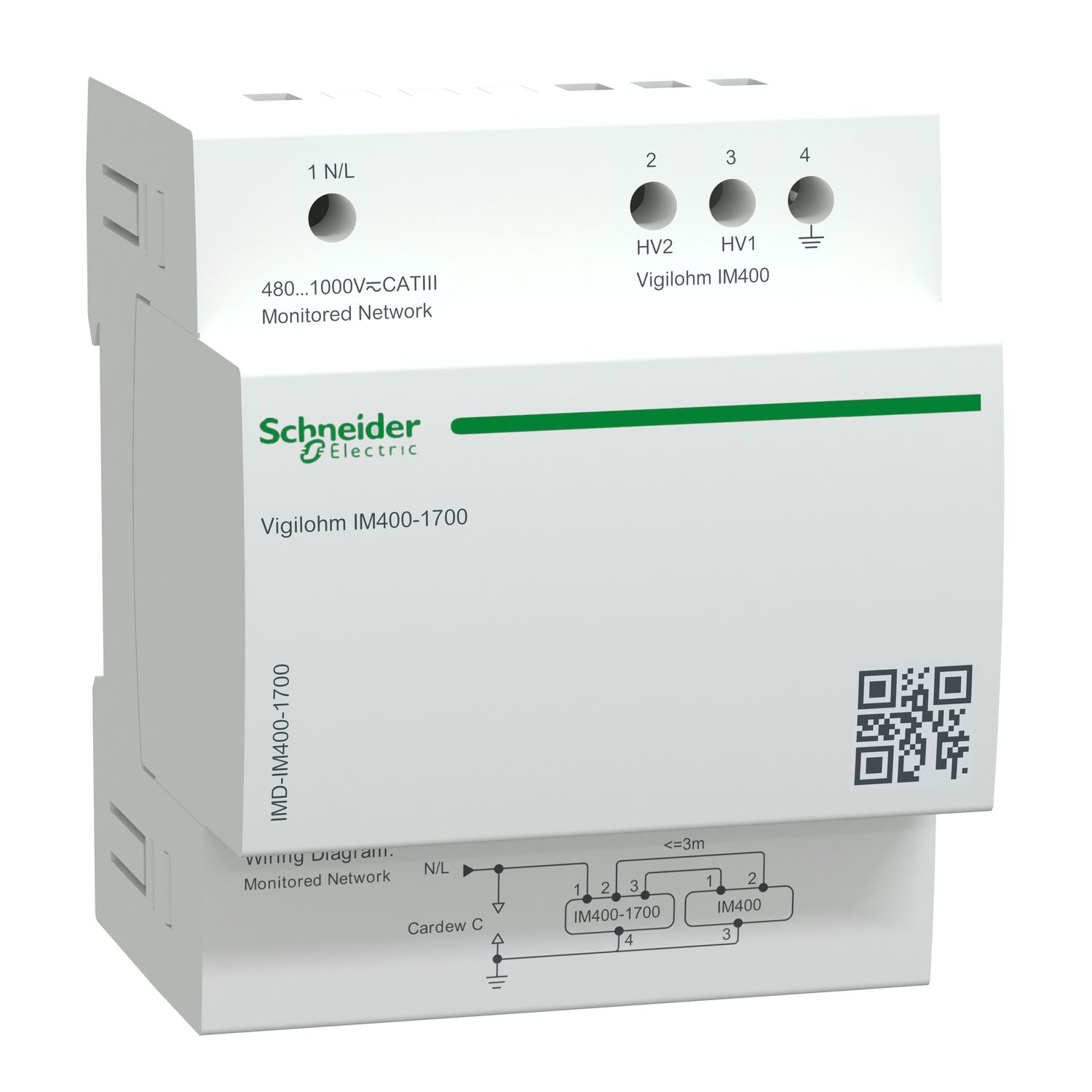

Picture of Voltage adpator - IM400
SKU:

IMD-IM400-1700

Voltage adpator - IM400

Old price: $875.60 INC GST
$744.26 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Voltage adpator - IM400
  • Industrial ungrounded networks
  • allow to monitor insulation level of networks with a higher voltage level
  • connected between the network and the monitoring device
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Declaration of conformity
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
This accessory belongs to the Vigilohm range designed to monitor ungrounded/IT electrical networks at feeder level, in accordance to installation and products standards. This accessory is a voltage adaptor connected between the monitored network, and the insulation monitoring device. It allow to monitor insulation level of networks with a higher voltage level than what the devices can natively stand. This product can be used in industrial environement. For use with a IM400 insulation monitoring device on a 830V AC to 1700V AC network, between phases if neutral is accessible. Or on a 480V AC to 1000V AC network, between phases if neutral is not accessible. Compaitble with 480V DC to 1000V DC networks as well. The dimensions of this voltage adaptor are 90mm in height, 71mm in width, 67.5mm in depth for a product weight of 200 grams.

Products specifications

Attribute name Attribute value
Main
Device short name IM400-1700
Device application large network
Range Vigilohm
Product or component type network adaptor subassembly
Range compatibility Vigilohm Vigilohm IM IM400L insulation monitoring device, Vigilohm Vigilohm IM IM400 insulation monitoring device
Range of product Vigilohm
Complementary
Average impedance 400 kOhm
Depth 67.5 mm
Width 71 mm
Compatibility code HV-IM400, IM400
[Sa] assured operating distance IM400: 3 m
Mounting mode clip-on
Net weight 0.2 kg
Network rated voltage 480-1000 V - DC, 480-1000 V - AC (neutral not distributed) , 830-1700 V - AC (neutral distributed)
Mounting support DIN rail
Height 90 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.8 cm
Package 1 Width 8.0 cm
Package 1 Length 9.5 cm
Package 1 Weight 150.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.133 kg
