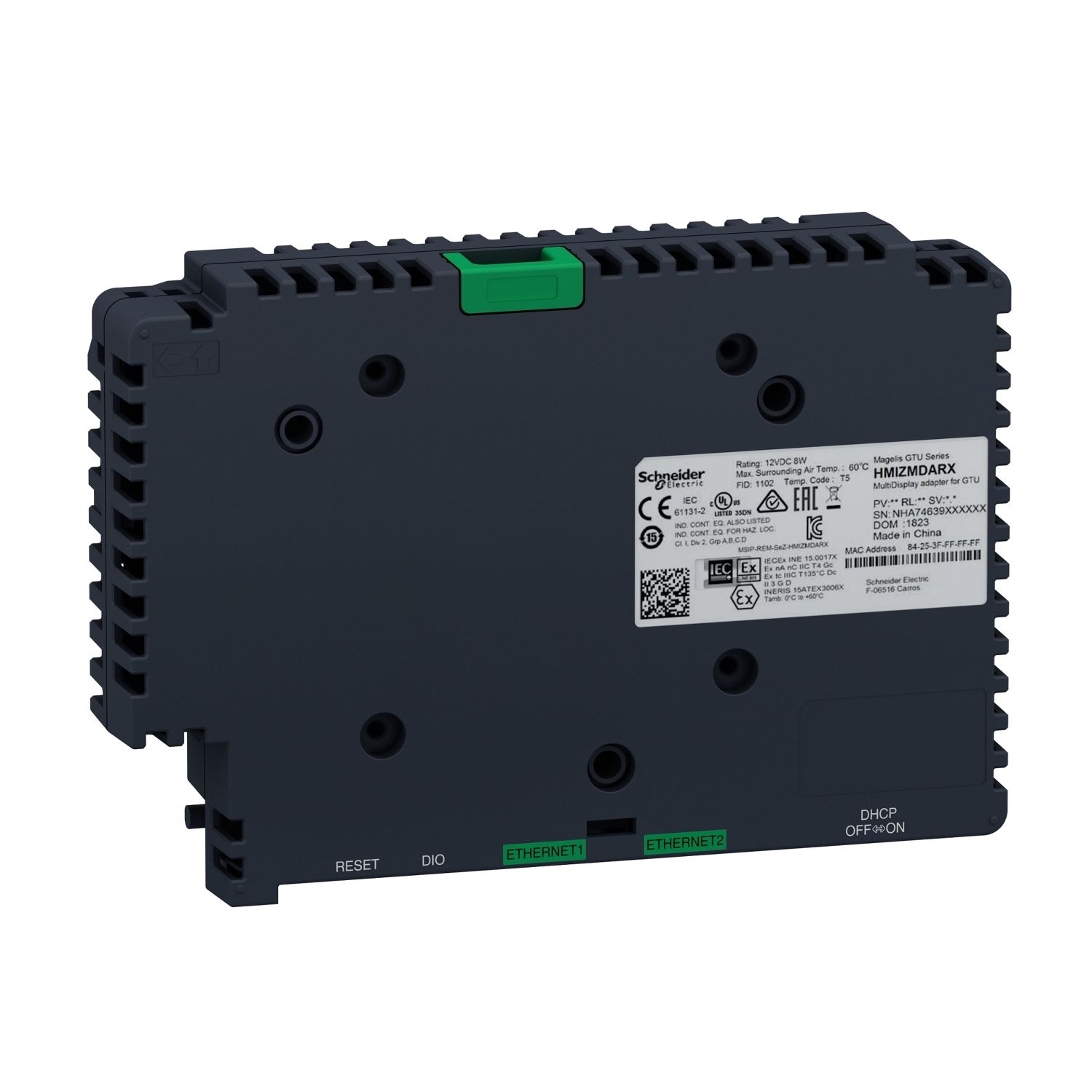

Picture of Multi Display Adapter for Harmony GTU
SKU:

HMIZMDARX

Multi Display Adapter for Harmony GTU

$1,268.08 INC GST
Available for Shipping : 13-Jan-2026
Multi Display Adapter for Harmony GTU
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
User guide
Instruction sheet
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type adaptor
Product compatibility Harmony iPC industrial PCs,  Harmony GTU open
Accessory / separate part category adaptation accessory
Range of product Harmony GTU
Complementary
Input voltage 24 V DC, 12 V DC module supply
Depth 35 mm
Width 188 mm
Output voltage 24 V
Integrated connection type 2 Ethernet TCP/IP type RJ45 jack, 1 DIO type terminal block 3 inputs + 1 output
Type of cooling natural
Local signalling LED green, orange and red, alternate for ERROR (fault), LED red, steady for power ON, LED orange, flashing for establishing communication connection, LED green/orange, alternate for program mode, LED green, faded for stand-by, LED green, steady for operating status (RUN)
Accessory / separate part destination Harmony GTU display
Net weight 0.8 kg
Output voltage type DC
[Us] rated supply voltage 12 V DC module supply
Output current 50 mA
Height 131 mm
Power consumption in W 8 W
Environment
Operating altitude 2000 m
Resistance to fast transients 2 kV (power ports) conforming to IEC 61000-4-4, 1 kV (signal ports) conforming to IEC 61000-4-4
Relative humidity 10-90 % non-condensing
Environmental characteristic dustproof, corrosive gas free
Ambient air temperature for storage -20-60 °C
Vibration resistance 9.8 m/s² constant acceleration (f= 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2, 3.5 mm constant amplitude (f= 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance 147 m/s² for X, Y, Z directions for 3 times conforming to EN/IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Pollution degree 2
Ambient air temperature for operation 0-60 °C
Product certifications UKEX, UKCA, EAC, ATEX zone 2/22, IEC-Ex, cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01, CSA C22-2 No 213, CSA C22-2 No 142, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14 cm
Package 1 Width 21 cm
Package 1 Length 26.5 cm
Package 1 Weight 1.054 kg
