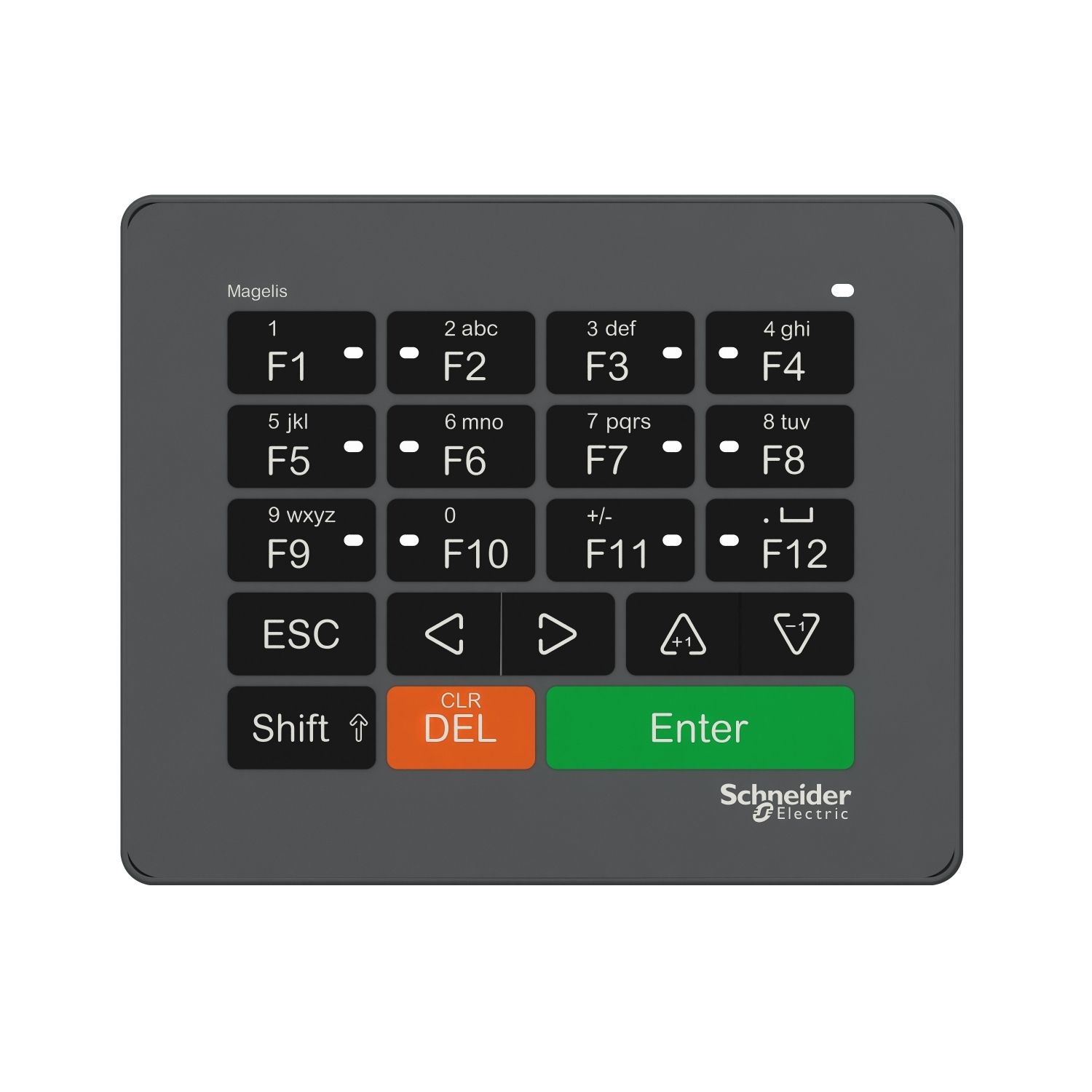

Picture of USB keyboard - 12 function - keys with LEDs integrated - alphanumeric input
SKU:

HMIZKB1

USB keyboard - 12 function - keys with LEDs integrated - alphanumeric input

$305.80 INC GST
Availability: Please contact our sales team on 1300 724 622.
USB keyboard - 12 function - keys with LEDs integrated - alphanumeric input
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalog
CAD
Instruction sheet
Product Page Link
Product Data Sheet
This USB keypad accessory is connected via a USB cable and compatible with Harmony HMI range terminals. HMIZKB1 is ideally used as function keys together with an HMI terminal where repetitive and reliable operations in dirty environments are required, while keeping the touch panel clean and protected. It is IP65 protected and has 12 function keys. The Keyboard keys can be used in two modes namely the function key mode and the entry mode with alphanumeric. It enables operators to have continuous control on the process without finger contact on potentially contaminated screens in industries such as food & beverage. It offers water-resistance and can operate in harsh environments. The users can select small size HMIs and use USB Keyboard to save the control panel space. It weighs 0.150Kg. It is intended for use in industrial applications like food and beverage, machine tool, and packaging. It is compatible with HMIGTO, HMIGXO, HMISTU, and HMISCU terminals. It is an Ideal complement to Harmony HMI series for direct access to functions without the need to touch the screen.

Products specifications

Attribute name Attribute value
Main
Device application food and beverage, industrial machines
Product compatibility HMISCU, HMIGTO, HMISTO, HMISTU, HMIGXO
Provided equipment 1 x replaceable label for function keys, 1 x fixing nut, 1 x USB type mini-B cable clamp, 1 x USB cable type A/mini-B (with 1.8 m, 1 x anti-rotation tee, 1 x tightening wrench, 1 x user manual
Product or component type keyboard
Range of product Harmony HMIZ
Complementary
Depth 31.5 mm
Width 97.6 mm
Quantity per set 1 piece
Number of key 20
Supply voltage limits 4.75-5.25 V DC
Colour of cover front dark grey cover
Connector type mini B USB
Mounting location flat surface
Net weight 0.15 kg
Shock resistance 147 m/s² for 3 chocks in each direction X, Y and Z conforming to IEC 61131-2
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Power consumption in W 0.75 W
[Us] rated supply voltage 5 V DC, connector type: USB 2.0
Software designation Vijeo Designer version >= V6.2
Number of customisable keys 12 with integrated LEDs
Height 80 mm
Environment
Operating altitude <= 2000 m
NEMA degree of protection NEMA 4X for enclosed outdoor installation, NEMA 4X for indoor installation installation
Level or class Class I Division 2 Groups A/B/C/D
Relative humidity 10-90 % at 0-39 °C non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
IP degree of protection IP65 (front panel (in enclosure))
Vibration resistance 3.5 mm (f= 5-9 Hz) conforming to IEC 61131-2
Pollution degree 2
Standards UL 508, EMC 2004/108/EC, ANSI/ISA 12.12.01, CSA C22.2 No 142, EN 61000-6-2, CSA C22.2 No 213, EN 61000-6-4
Ambient air temperature for operation 0-55 °C
Product certifications UL/cUL listed, EAC, RCM, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.37 cm
Package 1 Width 13.21 cm
Package 1 Length 18.8 cm
Package 1 Weight 0.34 kg
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 30 kg
