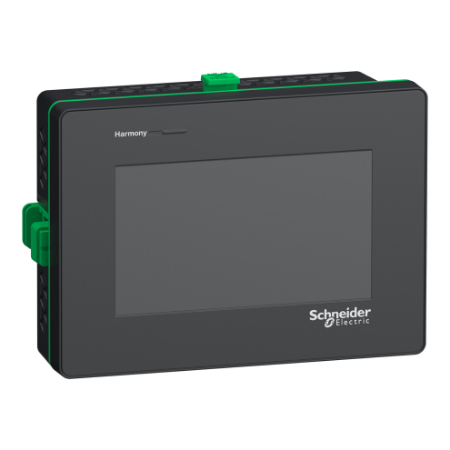

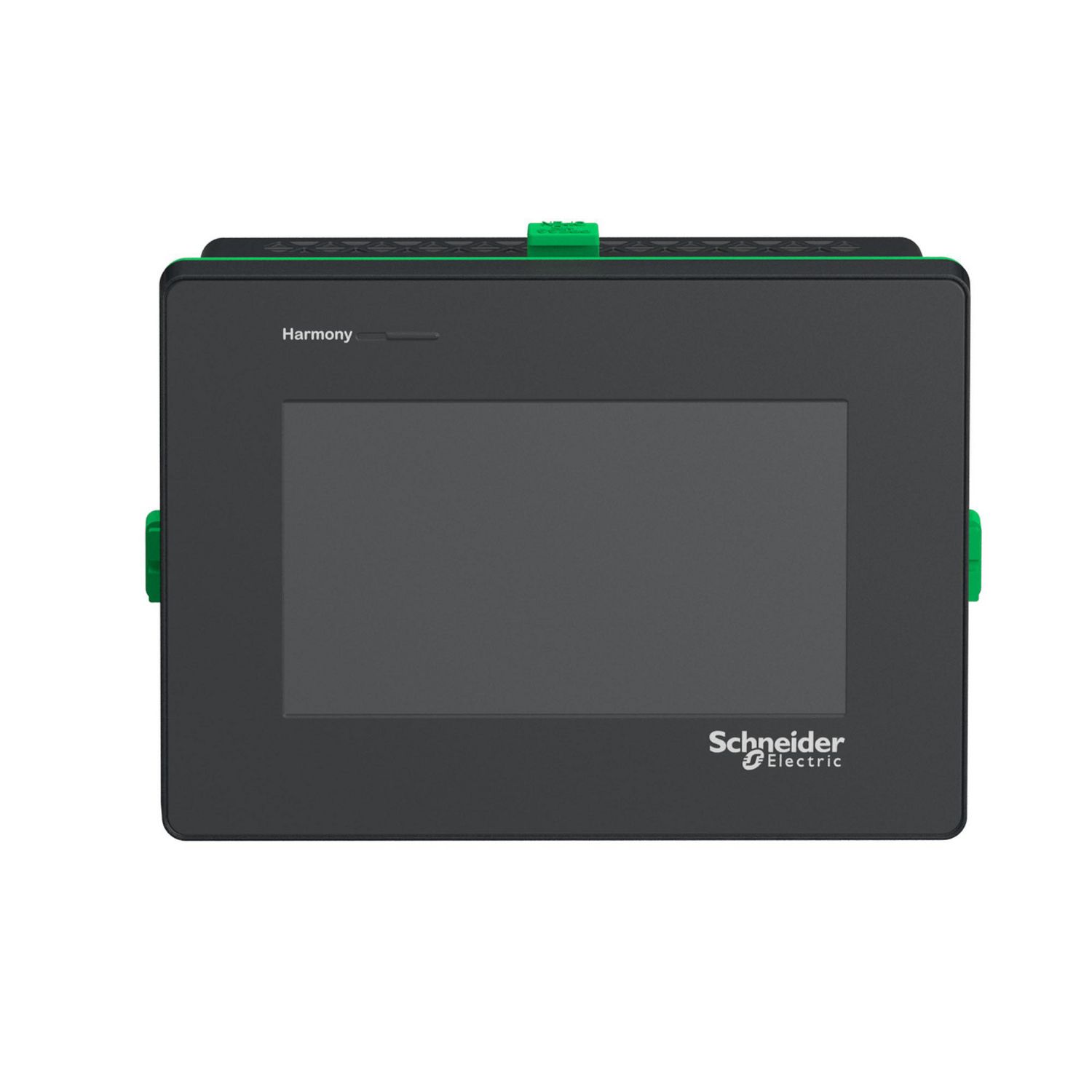

Picture of touch panel display ,Harmony STM6, 4inch wide display, 1COM, 2Ethernet, USB host and device, 24V DC
SKU:

HMISTM6200

touch panel display ,Harmony STM6, 4inch wide display, 1COM, 2Ethernet, USB host and device, 24V DC

Old price: $793.10 INC GST
$753.44 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
touch panel display ,Harmony STM6, 4inch wide display, 1COM, 2Ethernet, USB host and device, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
User guide
Environmental Disclosure
Brochure
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet

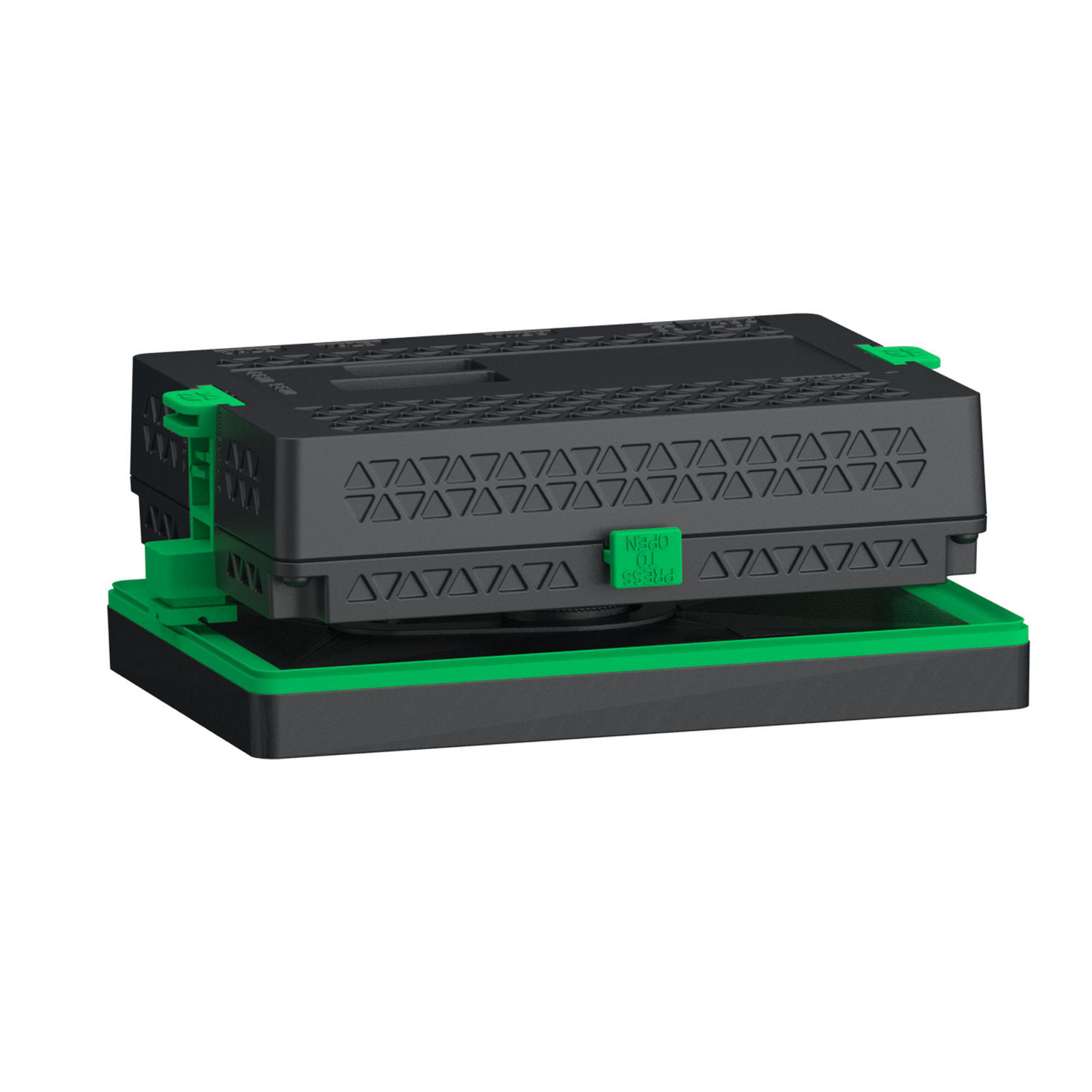

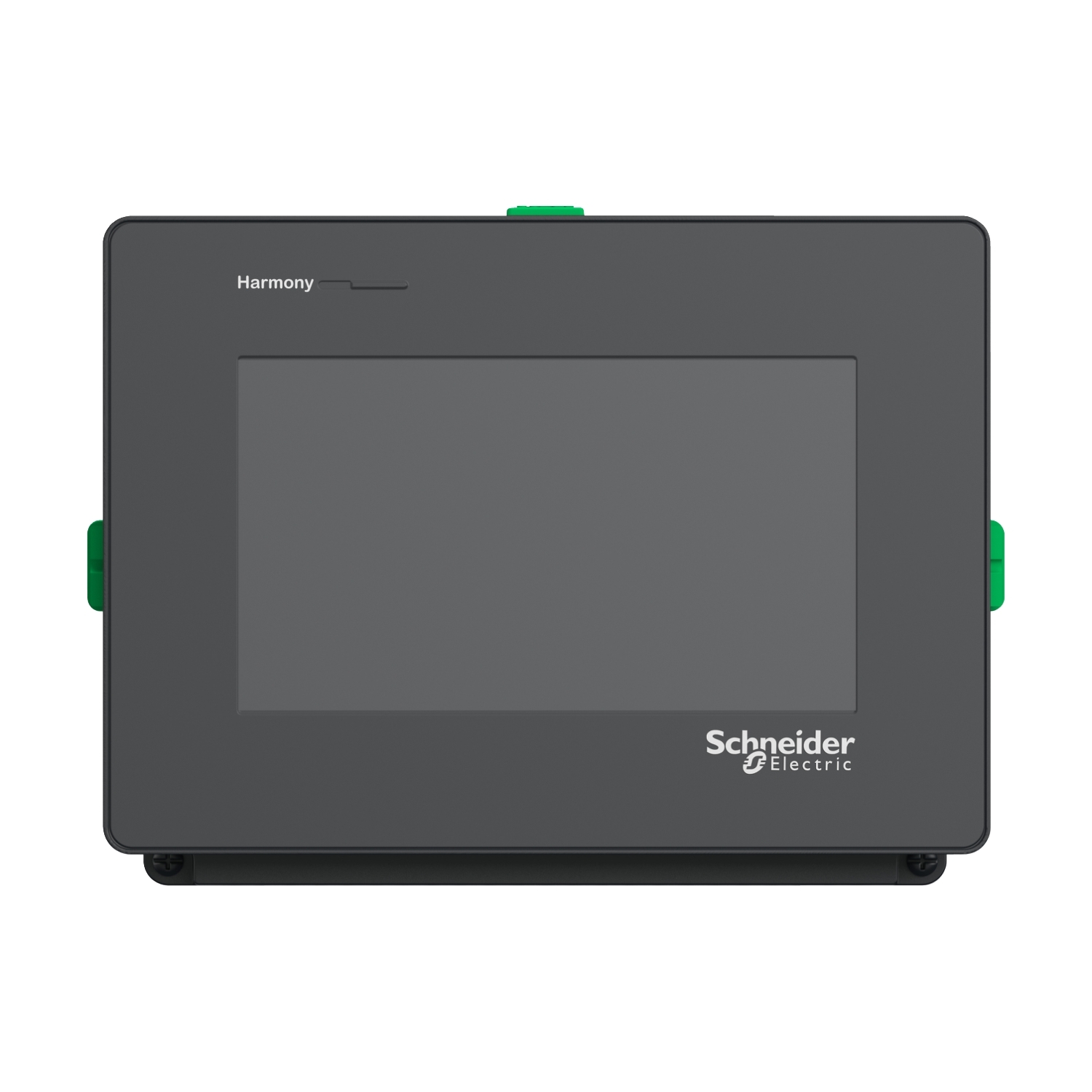

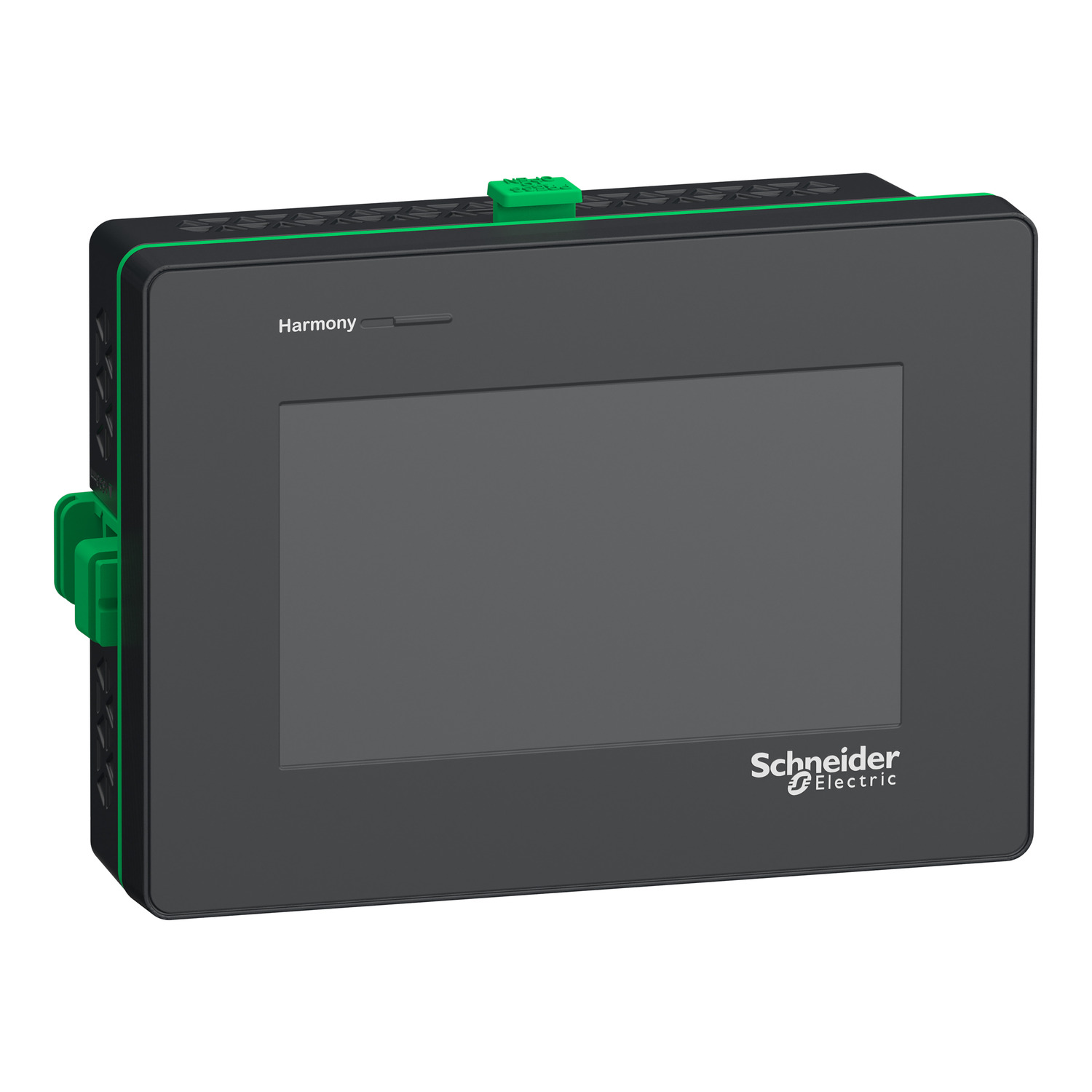

This Basic Modular HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI has a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inch wide with 16 million colors and 480 x 272 pixel resolution. It is a modular HMI with 22mm pushbutton mounting system and is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only),Type 12 and Type 13 (on the front panel when properly installed in an enclosure).

Products specifications

Attribute name Attribute value
Main
Processor name ARM Cortex-A8
Range of product Harmony ST6
Product or component type touch panel screen
Complementary
Memory description 512 KB backup memory, 128 MB user data memory, 1 GB device memory
Character font Taiwanese (traditional Chinese), Korean, Katakana, Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII (European characters), ASCII
Display type colour TFT LCD
Display colour 16 million colours
Downloadable protocols third party protocols, Uni-TE, Modbus
Display size 4 inch
Backlight lifespan 20000 hours with white
Fixing mode Ø 22 mm hole conforming to IEC 61000-6-2, Ø 22 mm hole conforming to IEC 61131-2, Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to UL 61010-2-201
Processor frequency 800 MHz
Marking CE
Power consumption in W 7.8 W
Software package EcoStruxure Operator Terminal Expert
Height 108.2 mm
Depth 53.9 mm
Realtime clock built-in 10...90 % RH, built-in 0...50 °C
Front material plastic
Width 145.6 mm
Port Ethernet 10/100BASE
Enclosure material PC

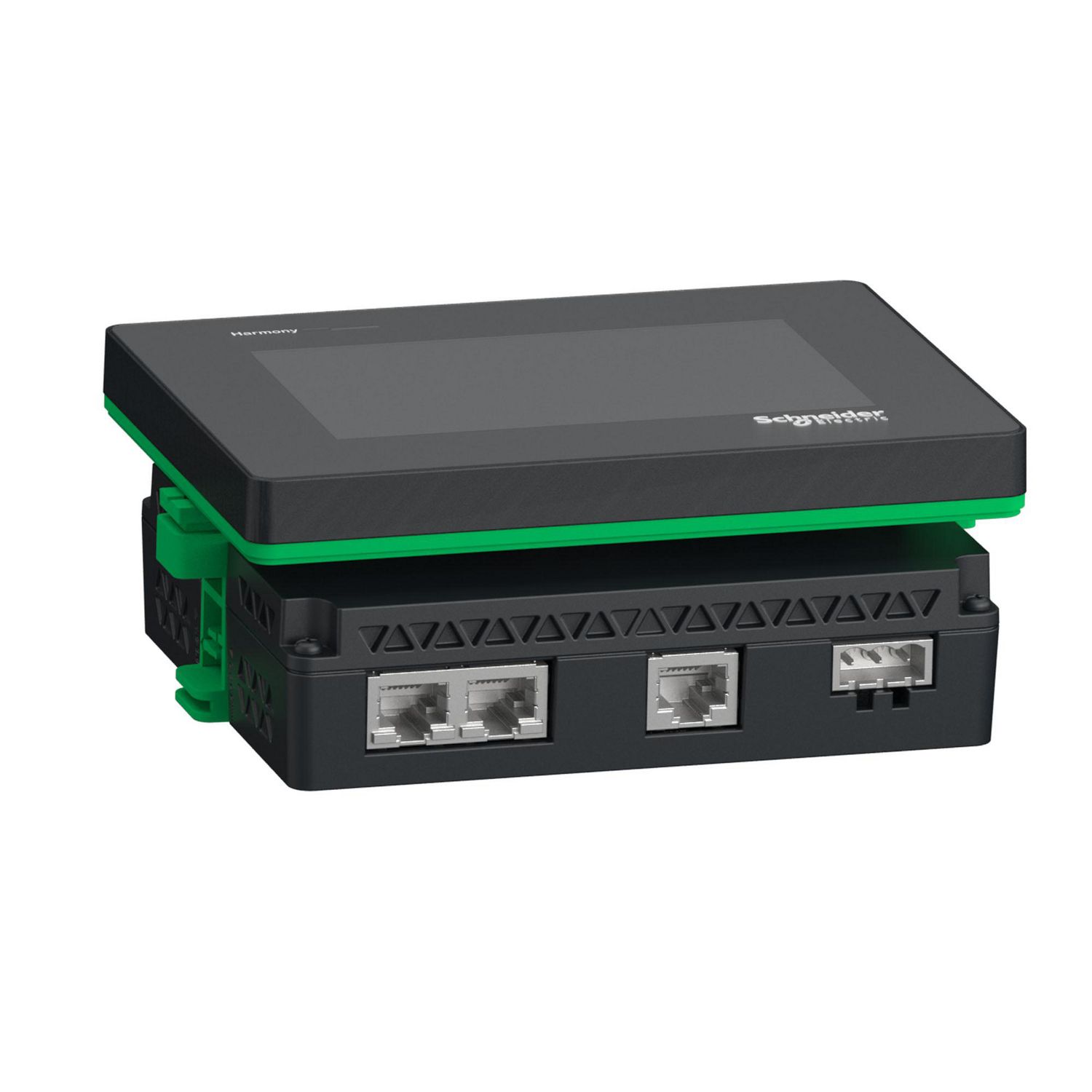

Integrated connection type 2 Ethernet - female RJ45bottom, 1 USB 2.0 type micro Bback, 1 USB 2.0 type Aback, 1 COM1 serial link - female RJ45 - RS232C/RS485 (rate: 2400...115200 bps)bottom
Local signalling status LED red, off for power supply (OFF), status LED red, flashing for operating, status LED red, steady for power supply (ON), status LED orange, flashing for software starting up, status LED green, faded for stand-by, status LED green, flashing for operating, status LED green, steady for operating, status LED green, steady for offline
Touch panel single touch analogue resistive
Net weight 0.49 kg
Display resolution 480 x 272 pixels
Supply external supply
Cut-out dimensions Ø 22.5 mm
Inrush current 30 A
Brightness 16 levels
Number of pages 200 application pages
[Us] rated supply voltage 24 V DC (+/- 20 %)
Product brand Siemens Simatic, Rockwell Automation Allen-Bradley, Omron Sysmac, Mitsubishi Melsec, Schneider Electric Modicon
Environment
Relative humidity 10-90 % non-condensing
Ambient air temperature for storage -20-60 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65 (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test - test level: 8 kV (air discharge), electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, electrical fast transient/burst immunity test - test level: 1 kV (signal ports), electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Immunity to microbreaks 2 ms
Ambient air temperature for operation 0-50 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 13 front panel (in enclosure), NEMA 4 front panel (indoor use)
Shock resistance 147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Vibration resistance 9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Standards CSA C22.2 No 213, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4
Product certifications BV, RINA, ABS, DNV, cULus Class 1 Division 2, KC, RCM, cULus, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.500 cm
Package 1 Width 13.500 cm
Package 1 Length 21.500 cm
Package 1 Weight 640.000 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.487 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 61.428 kg
