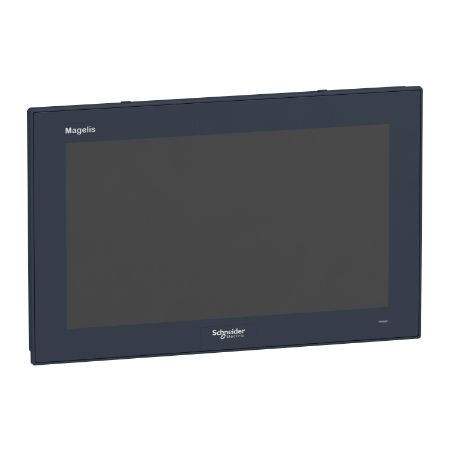

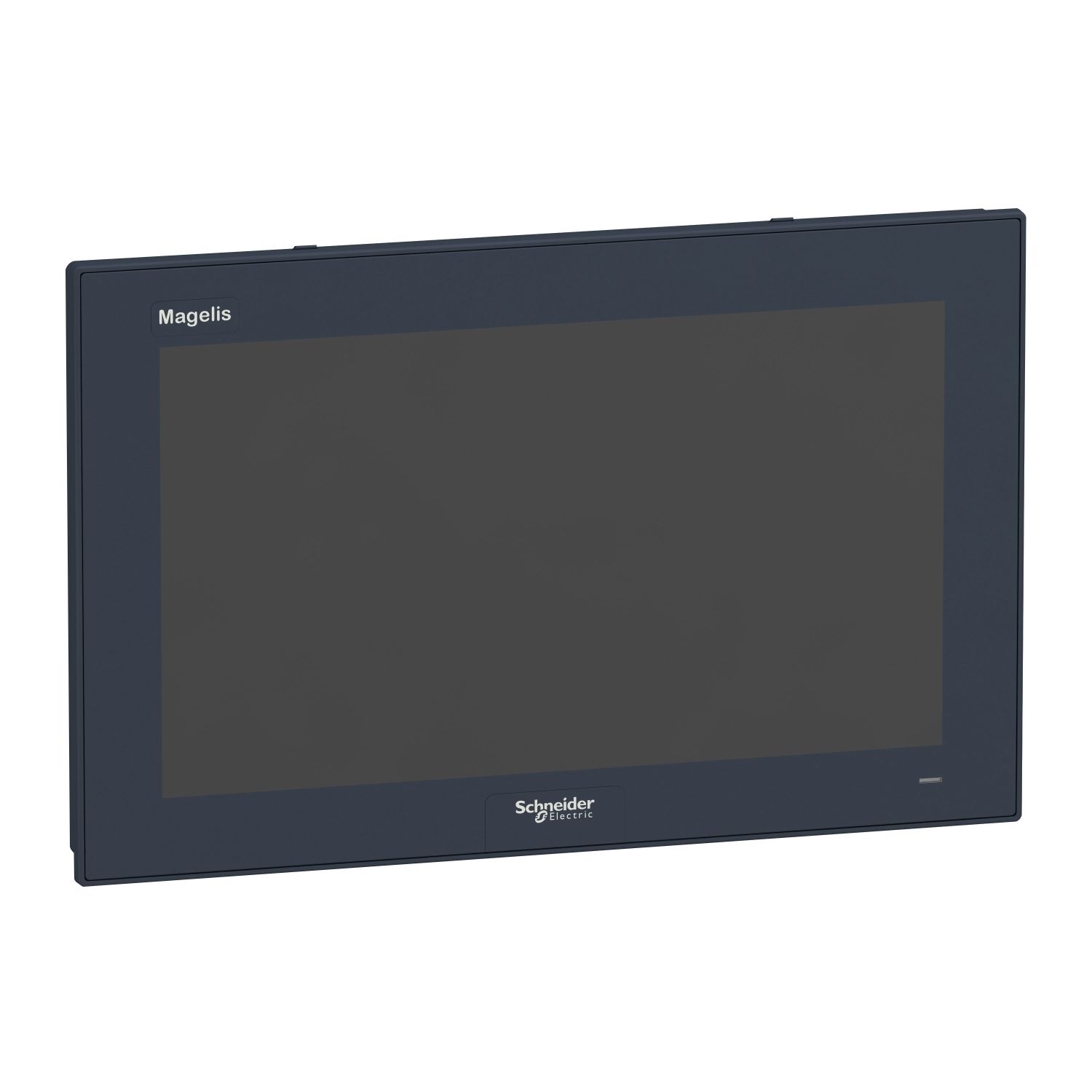

Picture of Multi touch screen, Harmony iPC, S Panel PC Perf. SSD W15” DC Win 7
SKU:

HMIPSPS752D170L

Multi touch screen, Harmony iPC, S Panel PC Perf. SSD W15” DC Win 7

Old price: $10,527.00 INC GST
$10,000.65 INC GST
Available for Shipping : 27-Jan-2026
Product Selector
Multi touch screen, Harmony iPC, S Panel PC Perf. SSD W15” DC Win 7
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
Circularity Profile
User guide
Environmental Disclosure
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Operating system Windows 7 64 bits Ultimate SP1
Display colour 16777216 colors
Display size 15.6 inch
Free slots 1 CFast, 1 Internal SATA HDD/SSD
Processor name Intel Core i3 4010U at 1.7 GHz
Chipset type Intel QM87
Software package Vijeo Citect DVD SCADA license not included, EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included
Range of product Harmony iPC
Luminance 300 cd/m²
Product or component type multi-touch screen
Video controller type Intel HD Graphics 4400
Pixel resolution 4096 x 4096
Complementary
Data storage equipment 256 GB back side SSD 1500000 h mtbf
Display type LED, colour TFT LCD
Type of cooling fanless, passive
Cut-out dimensions 412.4 (+/- 0.7) x 261.7 (+/- 0.4)
Display size 15" wide multi-touch
Function available operate with water on screen
Watchdog timer 1-255 ms
[Us] rated supply voltage 100...240 V AC with additional adaptor HMIYPSPMAC1, 24 V DC +/- 20 %
Height 269 mm
Electrical connection connector, connector type: SMA, 3 ways
Backlight lifespan 50000 hours
Mechanical robustness hardness anti-scratch 7H
Power consumption in W 18-60 W
Aspect ratio 16:9
Depth 56.7 mm
Width 419.7 mm
Local signalling LED (orange) for stand-by, LED (green) for on, buzzer
Touch panel projected capacitive technology (PCT)
Memory type 8 GB RAM DDR3 internal
View angle horizontal x vertical 150 x 140°
Net weight 6 kg
Terminal type touchscreen display
Display resolution 1366 x 768 pixels WXGA
Main type Performance
Number of slots 1 mini PCI Express full-size
Number of points 5
Environment
IP degree of protection IP66 front panel:
Relative humidity 10-95 % non-condensing
Ambient air temperature for storage -20-60 °C
Directives 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
Pollution degree 2
Ambient air temperature for operation 0-45 °C Mini PCIe, 0-45 °C HDD, 0-55 °C Cfast card, 0-55 °C SSD
Operating altitude 2000
Vibration resistance 2 gn (f = 5-500 Hz)Cfast card, 2 gn (f = 5-500 Hz)SSD, 1 gn (f = 5-500 Hz)HDD
Standards CSA C22.2 No 60950, IEC 60950, IEC 61000-6-4, CISPR 11, IEC 61000-6-2,  UL 60950, FCC part 15 class A
Product certifications CE, C-Tick, RCM, AS/NZS, CCC, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 54.5 cm
Package 1 Width 17 cm
Package 1 Length 70 cm
Package 1 Weight 8.184 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 71 cm
Package 2 Width 80 cm
Package 2 Length 120 cm
Package 2 Weight 48.996 kg
Unit Type of Package 3 3
Package 3 Height 71.0 cm
