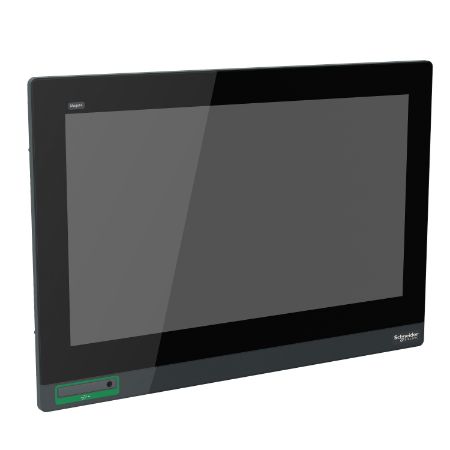

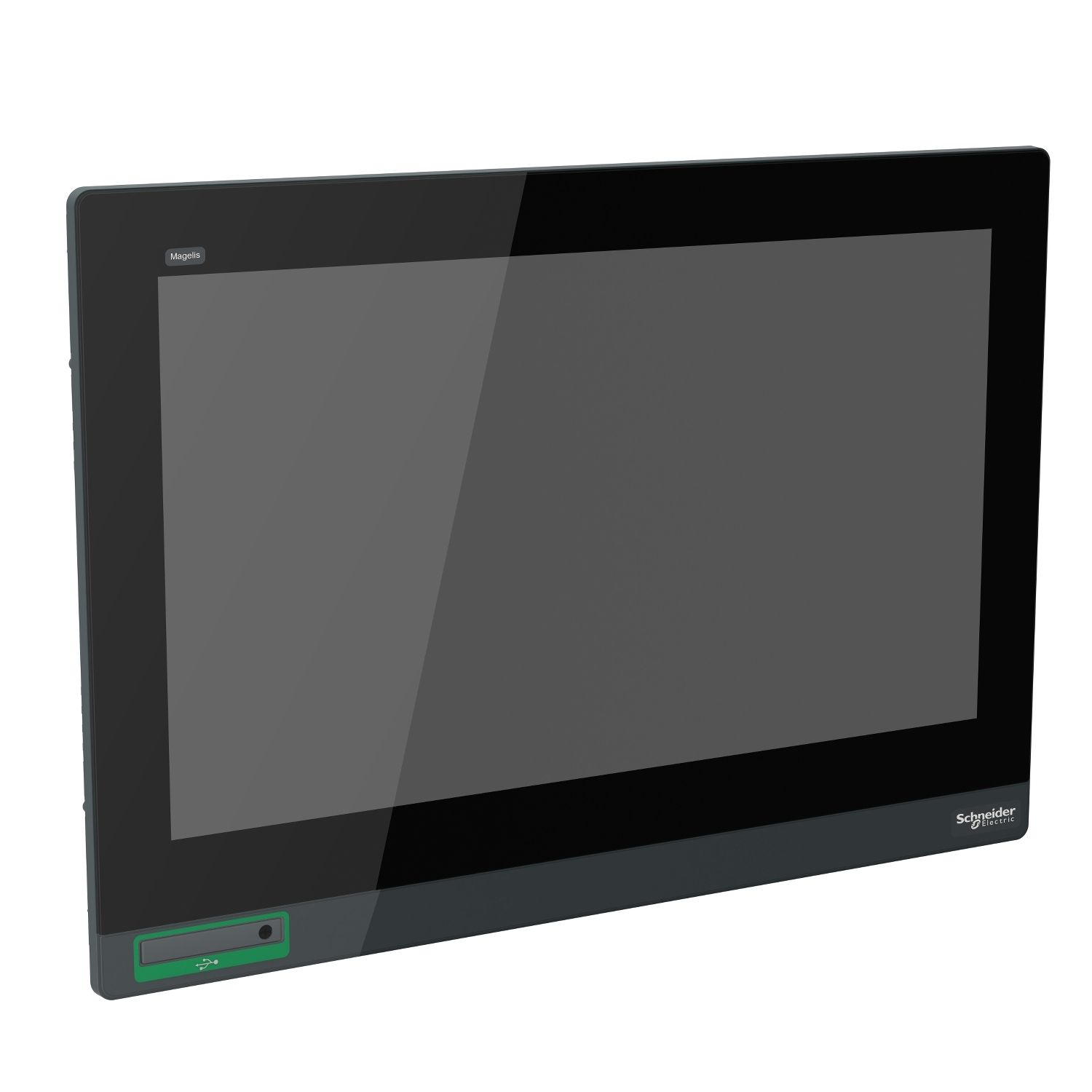

Picture of flat screen, Harmony GTU, 19inch wide display, 1366 x 768pixels FWXGA
SKU:

HMIDT952

flat screen, Harmony GTU, 19inch wide display, 1366 x 768pixels FWXGA

Old price: $6,418.50 INC GST
$6,097.58 INC GST
Available for Shipping : 20-Jan-2026
flat screen, Harmony GTU, 19inch wide display, 1366 x 768pixels FWXGA
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Circularity Profile
Declaration of conformity
User guide
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
The touch screen display features 18.5inch color TFT LCD display, supports 1366 x 768 pixels FWXGA resolution. It is equipped with USB 2.0 type A, USB 2.0 type mini B integrated connections. The touch panel is designed with multi-touch projected capacitive technology (PCT) 50 million cycles. This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66/IP67 and NEMA 4X rated product. Its dimensions are 483mm (width) x 69mm (depth) x 337mm (height). It weighs 6.8kg. It is suitable for complex machines, food/beverages, water, wastewater, mining, mineral, metal packaging and conveying applications. This product is certified by RCM, CULus, CE and KC. It meets UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142 and IEC 61132-2 standards. This display is compatible with all Premium and Open Harmony GTU Boxes. It supports panel mount for indoor installation. Harmony GTU (formerly known as Magelis GTU) products are universal panels that include smartphone like interface and wireless technology.

Products specifications

Attribute name Attribute value
Main
Supply voltage limits 10.8-28.8 V
Range of product Harmony GTU
Terminal type touchscreen display
Product or component type flat screen
Inrush current 30 A
[Us] rated supply voltage 12...24 V DC power supply
Power consumption in W 19 W
Complementary
Type of cooling natural convection
Display colour 16 million colours
Display size 18.5 inch
Touch panel multi-touch projected capactive technology (PCT) 50000000 cycles
Display type colour TFT LCD
Cut-out dimensions 465 (+ 1/- 0) x 319 (+ 1/- 0) mm
Function available brightness sensor
Backlight lifespan 50000 hours
Depth 69 mm
Height 337 mm
Aspect ratio 4:3
Width 483 mm
Integrated connection type USB 2.0 type mini B, USB 2.0 type A
Type of installation indoor installation
Net weight 6.8 kg
Display resolution 1366 x 768 pixels FWXGA
Touchscreen resolution 2048 x 2048
Pixel resolution 1366 x 768
Environment
Relative humidity 10-90 % non-condensing
Ambient air temperature for storage -20-60 °C
IP degree of protection front panel: IP67, front panel: IP66
Electromagnetic compatibility electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Product certifications KC, CE, cULus, RCM
Standards IEC 61132-2, CSA C22.2 No 142, class I division 2 CSA C22.2 No 213, ANSI/ISA 12-12-01, UL 508
Ambient air temperature for operation 0-55 °C conforming to IEC 61131-2
Operating altitude 2000 m
NEMA degree of protection NEMA 4X front panel
Shock resistance 147 m/s² conforming to IEC 61131-2
Vibration resistance 9.8 m/s² (f = 9-150 Hz) conforming to IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) conforming to IEC 61131-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.800 cm
Package 1 Width 50.000 cm
Package 1 Length 61.500 cm
Package 1 Weight 7.890 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 36.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 27.000 kg
