GV4LE50N

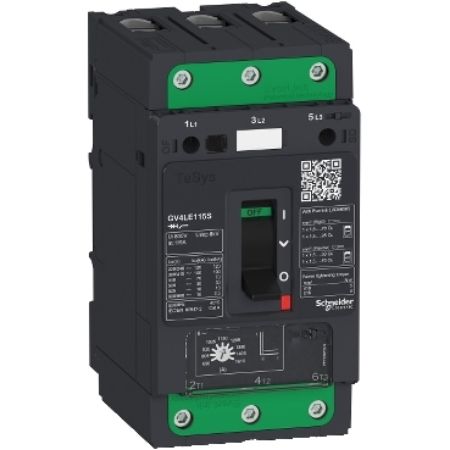

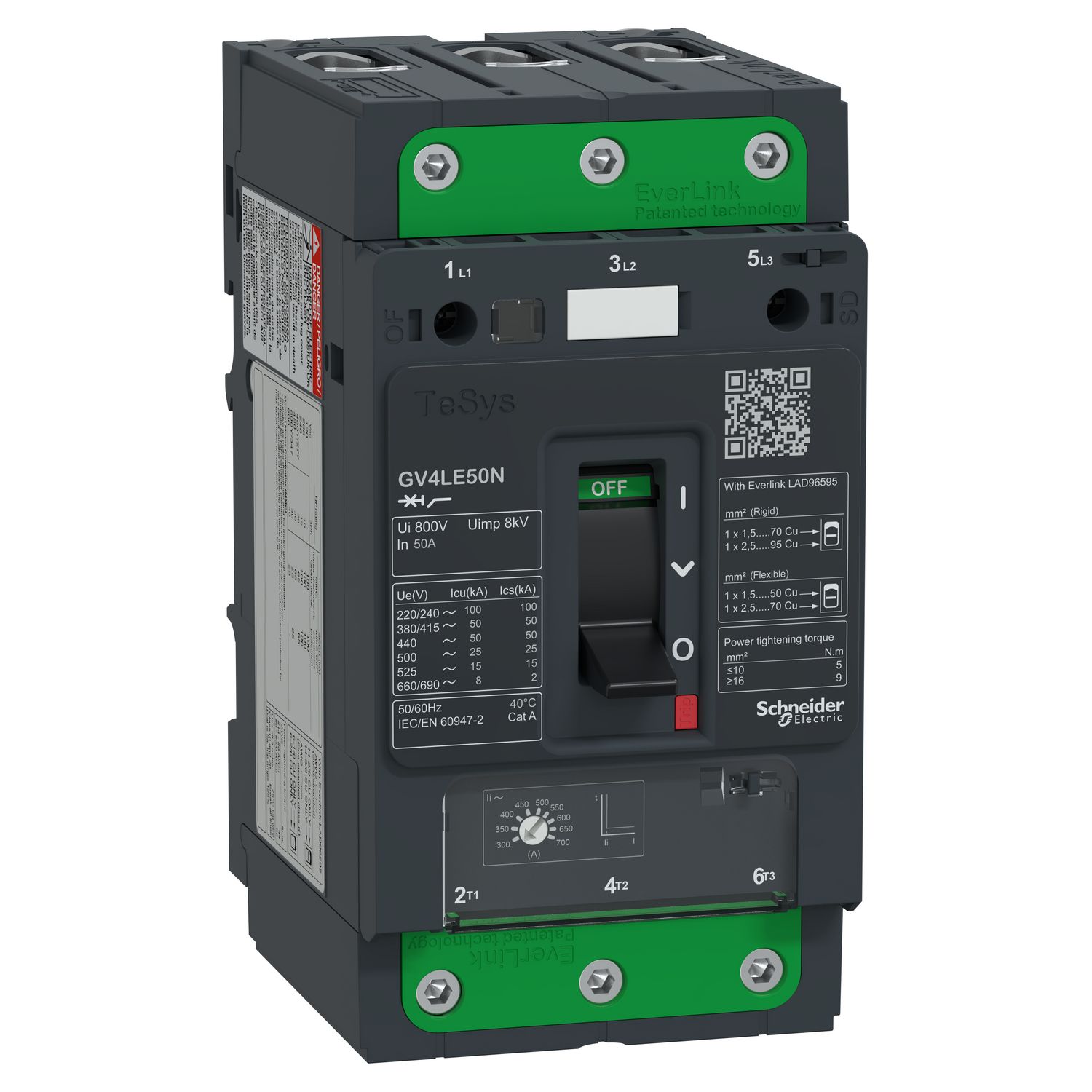

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 50kA, magnetic, EverLink terminals

$523.39
Available for Shipping : 11-Nov-2024
TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 50kA, magnetic, EverLink terminals
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Safe and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Manufacturer: Schneider Electric
TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for protection of 3-phase motors 11-22kW@400V. It provides magnetic protection, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Magnetic protection adjustable by dial, setting range 6-14 In. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). To be used in association with a class 10 or 20 thermal overload relay to complete motor protection. Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV4L
Device application motor protection
Range TeSys Deca
Range of product TeSys GV4
Trip unit technology electronic, magnetic
Product name TeSys Deca, TeSys GV4
Product or component type motor circuit breaker
Complementary
Colour grey (RAL 7016)
Mechanical durability 40000 cycles
Tightening torque 5 N.m for cable 1.5-10 mm², 9 N.m for cable 16-95 mm²
Suitability for isolation yes conforming to IEC 60947-1
Breaking capacity 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
Electrical durability 10000 cycles for AC-3 at 440 V In, 20000 cycles for AC-3 at 440 V In/2
Power dissipation per pole 6.1 W
Control type toggle
Maximum operating rate 25 cyc/h
Magnetic tripping current 300-700 A
Height 155 mm
Mechanical robustness shocks: 15 gn 11 ms conforming to IEC 60068-2-27, vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6, vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6
Depth 116 mm
Width 81 mm
Poles description 3P
Direct connector without
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Net weight 1.5 kg
Utilisation category AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2
Connections - terminals EverLink BTR screw connectors (bottom) 1 cable(s) 2.5-70 mm² - flexible, EverLink BTR screw connectors (bottom) 1 cable(s) 2.5-95 mm² - solid, EverLink BTR screw connectors (top) 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (top) 1 cable(s) 1.5-70 mm² - solid
Operating position any position
Motor power kW 45-45 kW at 660...690 V AC 50/60 Hz, 30-30 kW at 660...690 V AC 50/60 Hz, 22-22 kW at 660...690 V AC 50/60 Hz, 30-30 kW at 500 V AC 50/60 Hz, 22-22 kW at 500 V AC 50/60 Hz, 18.5-18.5 kW at 500 V AC 50/60 Hz, 22-22 kW at 400...415 V AC 50/60 Hz, 18.5-18.5 kW at 400...415 V AC 50/60 Hz, 15-15 kW at 400...415 V AC 50/60 Hz, 18.5-18.5 kW at 660...690 V AC 50/60 Hz, 15-15 kW at 500 V AC 50/60 Hz, 11-11 kW at 400...415 V AC 50/60 Hz
[Ith] conventional free air thermal current 115 A conforming to IEC 60947-4-1
Rated duty continuous conforming to IEC 60947-4-1
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current 50 A
Environment
Fire resistance 960 °C conforming to IEC 60695-2-11
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for storage -50-85 °C
Pollution degree 3
Climatic withstand conforming to IACS E10
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Operating altitude 5000 m
Standards EN/IEC 60947-4-1, EN/IEC 60947-2
Product certifications EU-RO MR, EAC, CCC, IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 16.0 cm
Package 1 Length 22.0 cm
Package 1 Weight 1.7 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.5 kg
