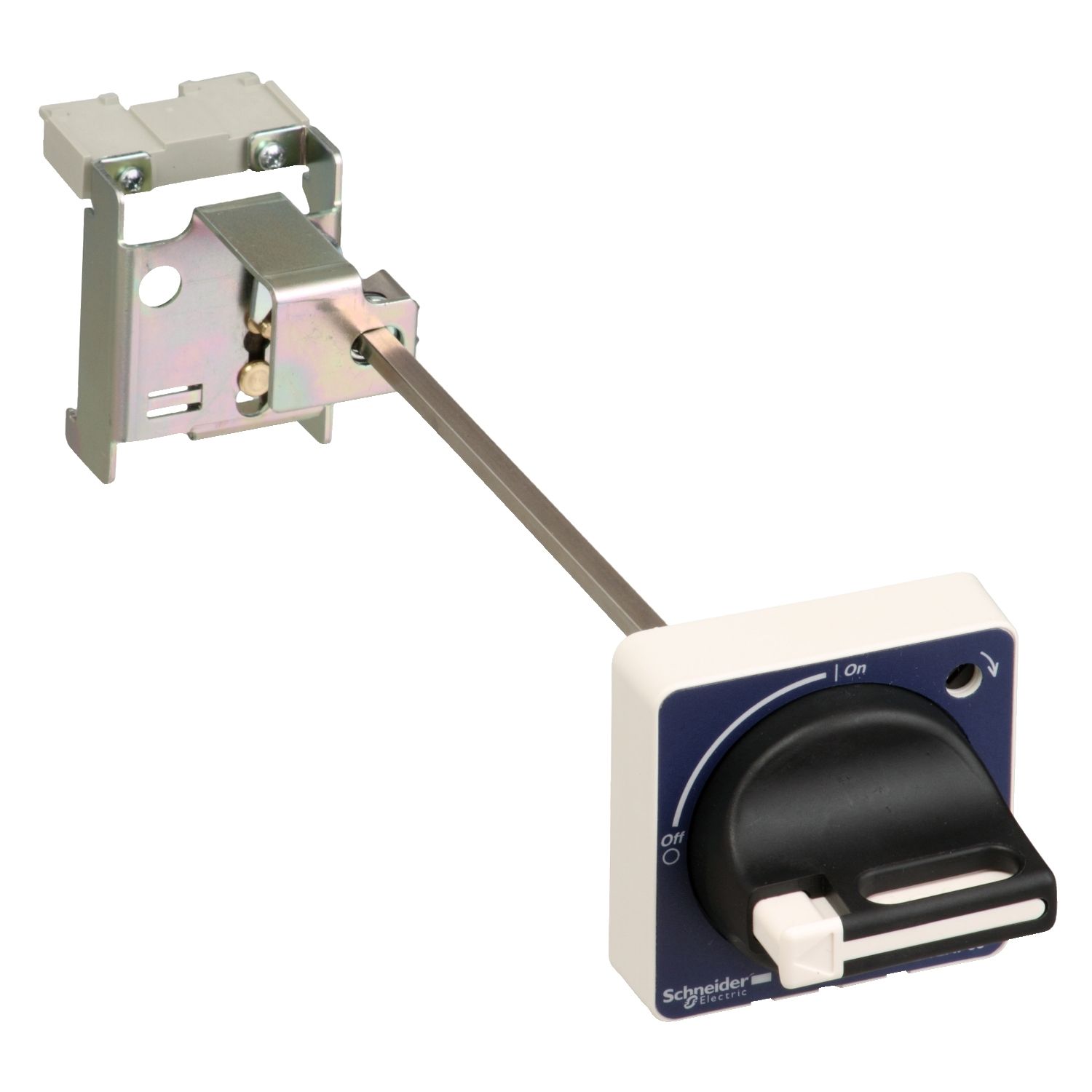

Picture of Extended rotary handle kit,TeSys Deca Fram 2,IP54,black handle,without trip indication,for GV2LE/GV2RT
SKU:

GV2AP03

Extended rotary handle kit,TeSys Deca Fram 2,IP54,black handle,without trip indication,for GV2LE/GV2RT

Old price: $353.65 INC GST
$222.80 INC GST
Available for Shipping : 20-Jan-2026
Extended rotary handle kit,TeSys Deca Fram 2,IP54,black handle,without trip indication,for GV2LE/GV2RT
  • Meets the needs of operating the GV installed in the sealed box
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Instruction sheet
Environmental Disclosure
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
TeSys GV extended rotary handle, for motor circuit breakers GV2LE, GV2RT mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 141-290mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV2AP
Range TeSys
Product or component type rotary handle kit
Handle colour black
Accessory / separate part category control accessory
Handle front plate colour blue
Range of product TeSys Deca, TeSys GV2
Complementary
Product compatibility GV2LE, GV2RT
Rotary handle padlocking padlock in ON position, padlock in OFF position
Compatibility code GV2AP
Net weight 0.28 kg
Locking options description 1 to 3 padlocks
Back/door distance 135-282 mm
Rotary handle mounting style extended
Environment
IP degree of protection IP54
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 12.500 cm
Package 1 Length 18.500 cm
Package 1 Weight 304.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.954 kg
