SKU:

GMX075012579843M00

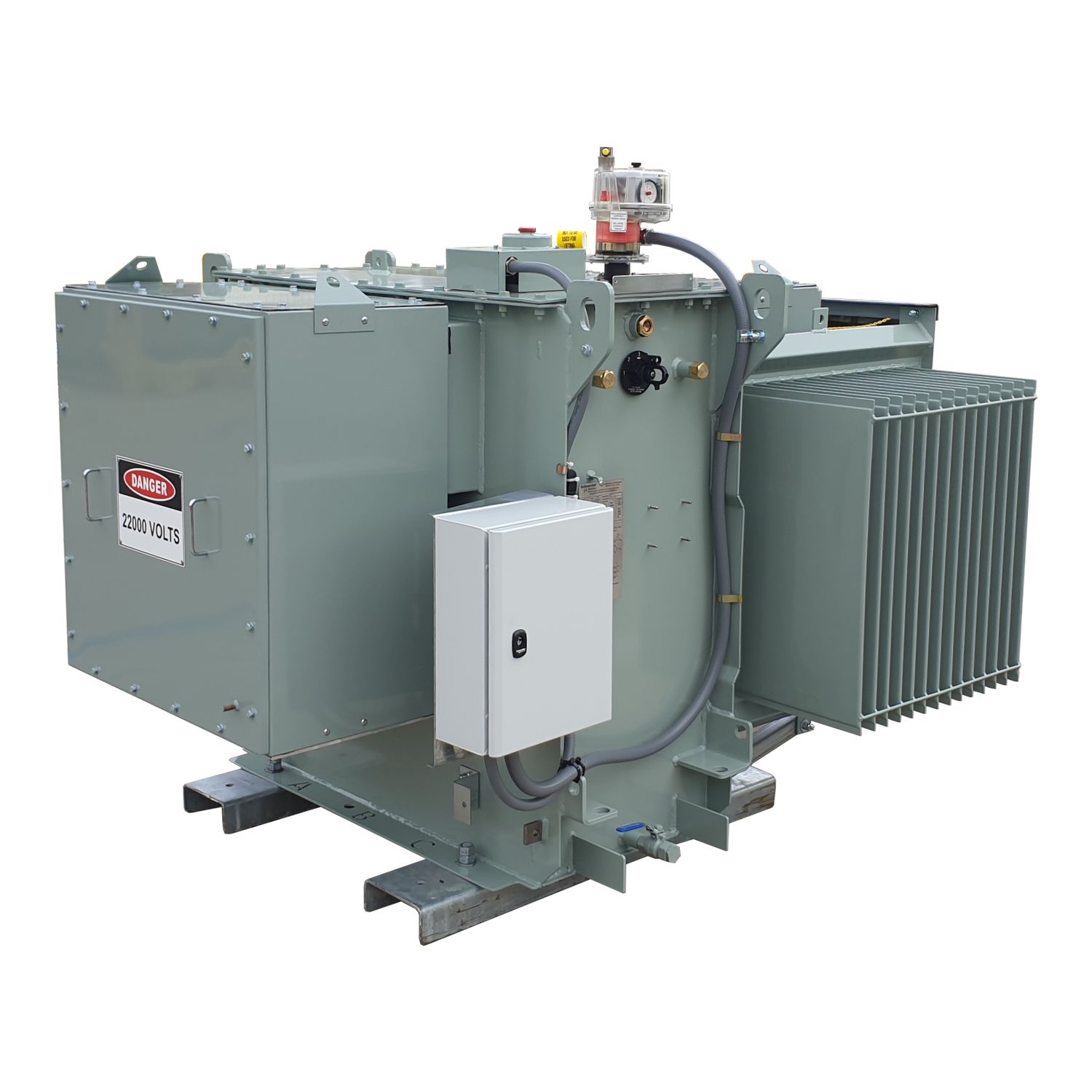

Transformer, Minera GMX, oil type, 750kVA, 11kV, 433V, aluminum windings

$90,343.44 INC GST

Qty:

Available for Shipping : 24-May-2026

Product Selector

Transformer, Minera GMX, oil type, 750kVA, 11kV, 433V, aluminum windings

Manufacturer: Schneider Electric

Delivery date: 24-May-2026

User guide

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Operating altitude	< 1000 m
Type of installation	outdoor
Material	aluminium
Product or component type	transformer
Dielectric material	ester fluid (FR3)
Network type	AC
IP degree of protection	IP65 cable box IEC
Type of cooling	KNAN (high fire point fluid natural air Natural)
Standards	AS/NZS 60076
Range of product	Minera Ground Mounted
Mounting mode	ground mounted
Transformer type	oil type transformer
Complementary
Temperature rise	65 K (winding), 80 K (oil)
Height	1570 mm
Tapping range	+/- 2 x 2.5 %
Secondary voltage	no load: 433 V
Rated power in VA	750 kVA
[Uimp] rated impulse withstand voltage	75 kV
Network number of phases	3 phases
Electrical connection	cable low voltage connection, cable high voltage connection
Relay type	DMCR relay
Thermal losses	7990 W
Width	1510 mm
No load losses	900 W
Net weight	2540 kg
[Ui] rated insulation voltage	secondary circuit: 1.1 kV, primary circuit: 12 kV
Noise level	64.3-64.3 dB at 0.3 m
Vector group	Dyn11
Directives	2015/2014/548/EC- ecodesign
Length	2098 mm
Isolation voltage	3 kV secondary, 28 kV primary
Percentage impedance voltage	5.00 %
Volume of fluid	655 l
Electrical insulation class	A
Primary voltage	11 kV
Network frequency	50 Hz
Environment
Ambient air temperature for operation	-20-50 °C for C2, 50 °C
Relative humidity	0-95 %
Ambient air temperature for storage	-20-50 °C C2
