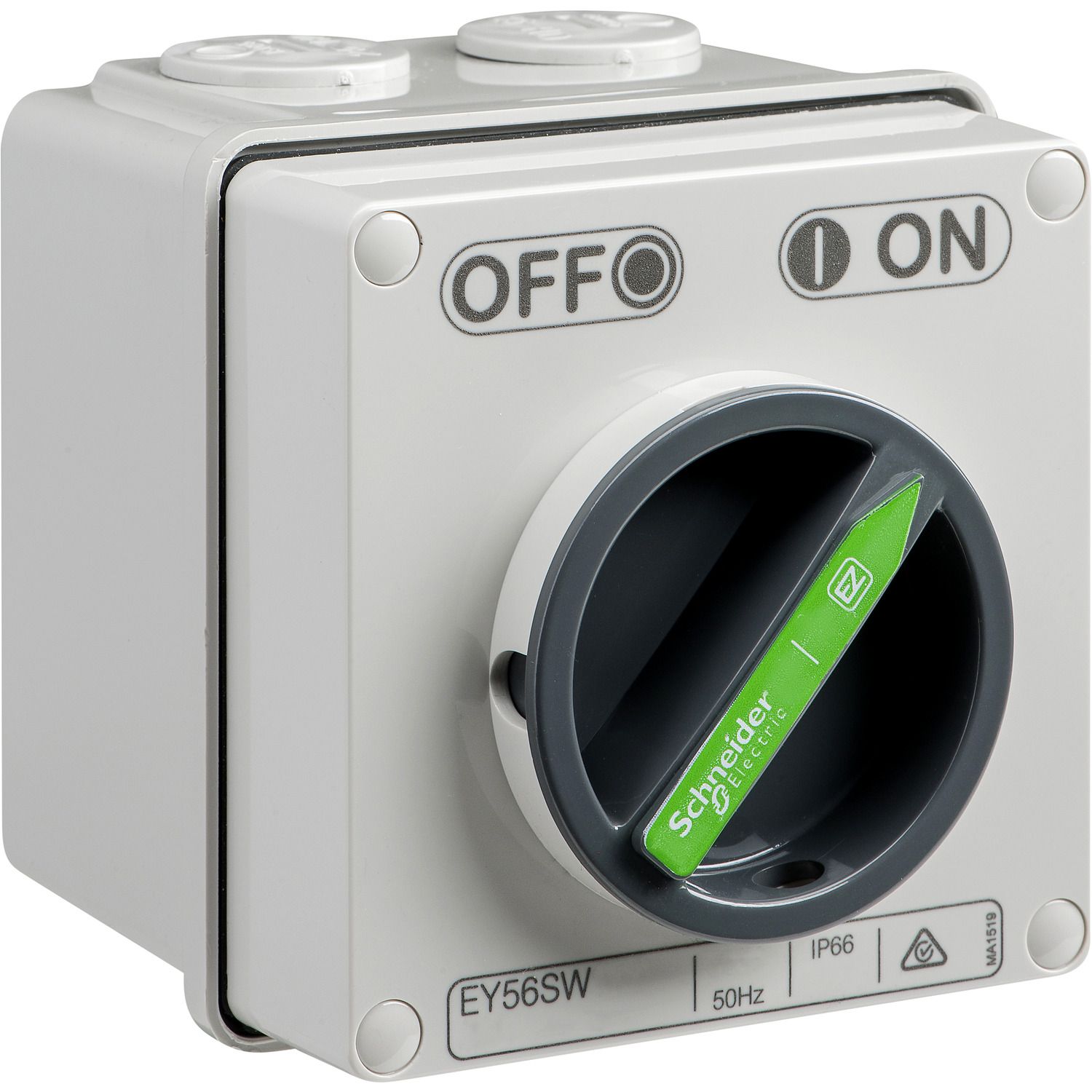

Picture of Easy56, Switch, 3P, 20A, 500V
SKU:

EY56SW320

Easy56, Switch, 3P, 20A, 500V

$106.66 INC GST
Available for Shipping : 09-Dec-2025
Easy56, Switch, 3P, 20A, 500V
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 09-Dec-2025
Declaration of conformity
Instruction sheet
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name EY56SW320
Poles description 3P
Control type rotary knob
Product name Easy56
Product or component type switch
Rotary handle padlocking 2 padlocks 8-8 mm
Complementary
[Icw] rated short-time withstand current 1.5 kA at 500 V duration: 1 s
Breaking capacity 0.2 kA at 500 V (AC-23A), 0.2 kA at 500 V (AC-21A)
Depth 101 mm
Market segment utility, industry, small commercial
Width 101 mm
Colour rotary handle: dark grey, body: grey (RAL 7035)
[Ie] rated operational current 20 A (AC-23A) at 500 V AC, 20 A (AC-21A) at 500 V AC
Suitability for isolation yes
[Icm] rated short-circuit making capacity 1 kA at 500 V AC-23A, 1 kA at 500 V AC-21A
[Uimp] rated impulse withstand voltage 2.5 kV conforming to AS/NZS 3133, 2.5 kV conforming to IEC 60947-3
Making capacity 200 A at 500 V AC-23A, 200 A at 500 V AC-21A
Net weight 0.471 kg
Connections - terminals screw terminals cable(s) 1-16 mm² rigid or stranded
[Ithe] conventional enclosed thermal current 20 A
Height 101 mm
[Ue] rated operational voltage 500 V AC 50 Hz
Targeted country New Zealand, Australia
Environment
IP degree of protection IP66 conforming to AS 60529
Standards AS/NZS 3133
Ambient air temperature for operation -25-75 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 10.8 cm
Package 1 Length 11.0 cm
Package 1 Weight 508.0 g
