SKU:

EY56SW132

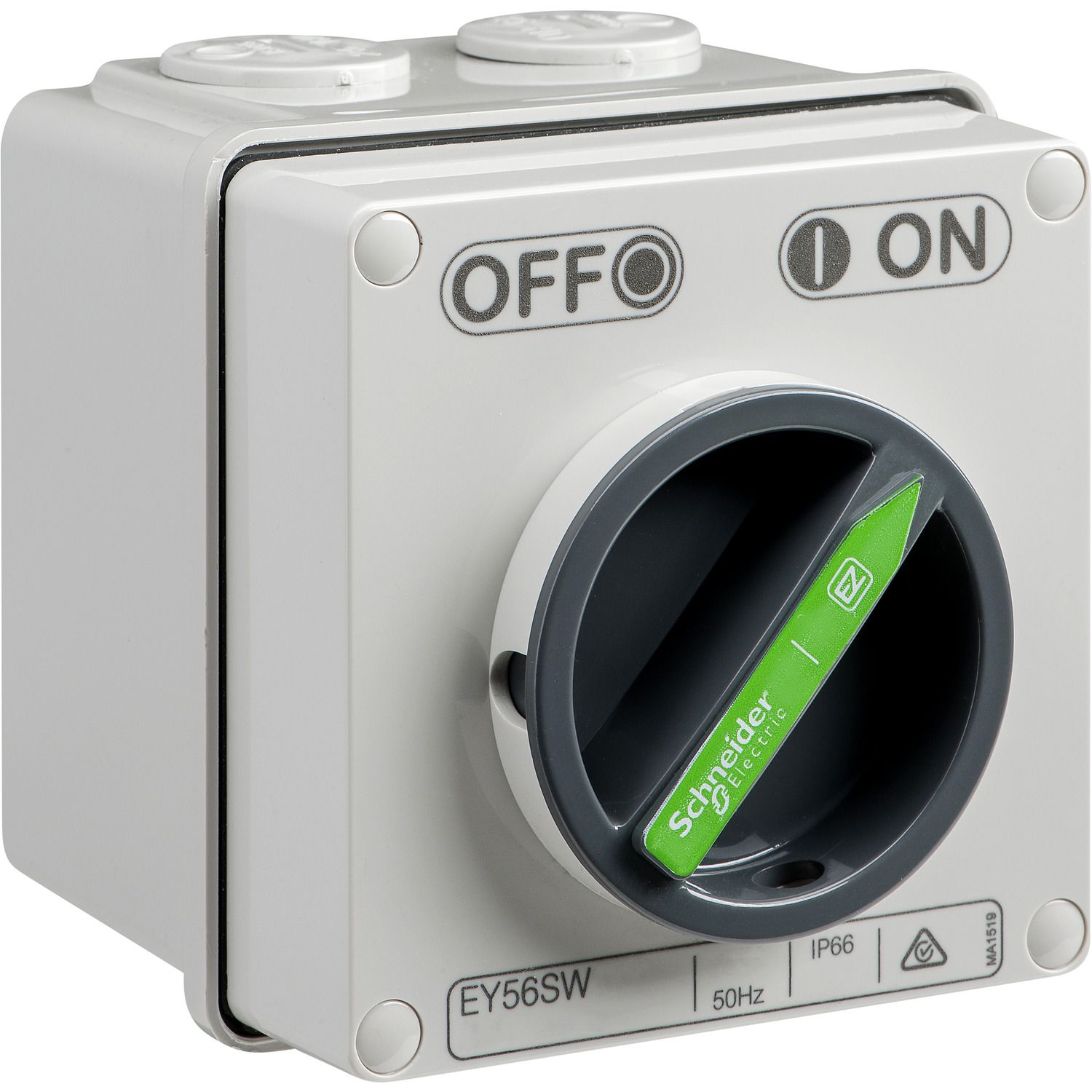

Easy56, Switch, 1P, 32A, 250V

$87.91 INC GST

Qty:

Available for Shipping : 17-Dec-2025

Easy56, Switch, 1P, 32A, 250V

Manufacturer: Schneider Electric

Delivery date: 17-Dec-2025

Instruction sheet

Declaration of conformity

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EY56SW132
Poles description	1P
Control type	rotary knob
Product name	Easy56
Product or component type	switch
Rotary handle padlocking	2 padlocks 8-8 mm
Complementary
[Icw] rated short-time withstand current	1.5 kA at 250 V duration: 1 s
Breaking capacity	0.2 kA at 250 V (AC-23A), 0.2 kA at 250 V (AC-21A)
Depth	101 mm
Market segment	small commercial, industry, utility
Width	101 mm
Colour	rotary handle: dark grey, body: grey (RAL 7035)
[Ie] rated operational current	32 A (AC-23A) at 250 V AC, 32 A (AC-21A) at 250 V AC
Suitability for isolation	yes
[Icm] rated short-circuit making capacity	1 kA at 250 V AC-23A, 1 kA at 250 V AC-21A
[Uimp] rated impulse withstand voltage	2.5 kV conforming to AS/NZS 3133, 2.5 kV conforming to IEC 60947-3
Making capacity	320 A at 250 V AC-23A, 320 A at 250 V AC-21A
Net weight	0.471 kg
Connections - terminals	screw terminals cable(s) 1-16 mm² rigid or stranded
[Ithe] conventional enclosed thermal current	32 A
Height	101 mm
[Ue] rated operational voltage	250 V AC 50 Hz
Targeted country	New Zealand, Australia
Environment
IP degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3133
Ambient air temperature for operation	-25-75 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.2 cm
Package 1 Width	10.6 cm
Package 1 Length	10.6 cm
Package 1 Weight	483.6 g
