SKU:

EY56SO315

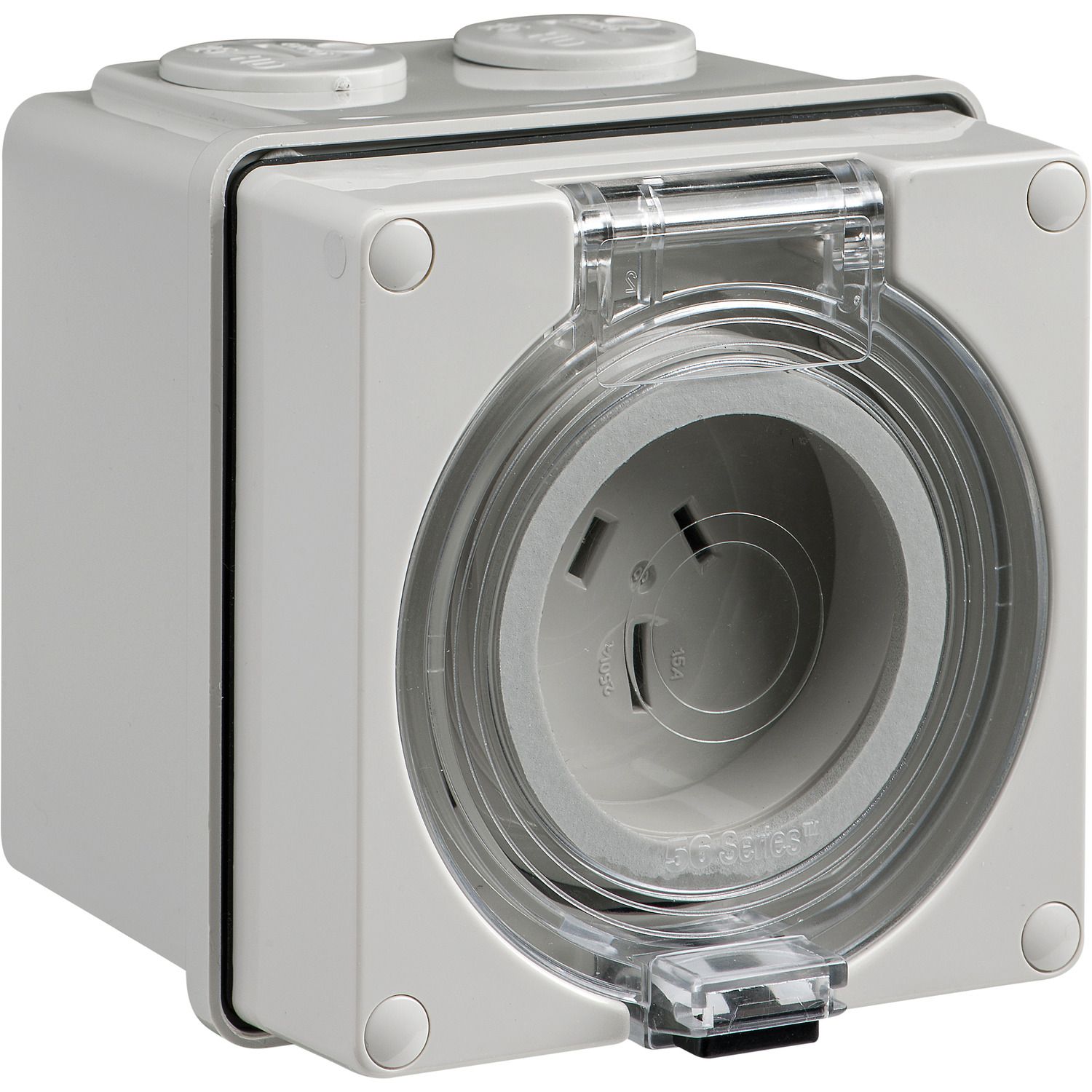

Easy56, Socket, 3 Pin, 15A, 250V

$95.96 INC GST

Qty:

Available for Shipping : 16-Dec-2025

Easy56, Socket, 3 Pin, 15A, 250V

Manufacturer: Schneider Electric

Delivery date: 16-Dec-2025

Instruction sheet

Catalog

Declaration of conformity

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EY56SO315
Plug, socket category	low voltage
Poles description	1P + N + E
Product name	Easy56
Product or component type	socket-outlet
Outlet standard deviation	Australian/New Zealand
Network type	AC
Complementary
[Ue] rated operational voltage	250 V
Depth	101 mm
Market segment	small commercial, industry, utility
Width	101 mm
Colour	grey (RAL 7035)
[In] rated current	15 A
Material	polycarbonate: cover
Mounting mode	surface mounted
Wire stripping length	10 mm
Net weight	0.471 kg
Shape of pin	flat
Plug, socket, control station shape	straight
Contacts material	pins: phosphor bronze
Pin number	3 pins
Height	101 mm
Targeted country	New Zealand, Australia
Connections - terminals	screw terminals 1.5-6 mm² rigid or stranded cable
Network frequency	50 Hz
Environment
Quality labels	RCM
Ambient air temperature for storage	-25-75 °C
IP degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3112
Ambient air temperature for operation	-25-75 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.5 cm
Package 1 Width	10.5 cm
Package 1 Length	10.5 cm
Package 1 Weight	434.6 g
