SKU:

EY56C332

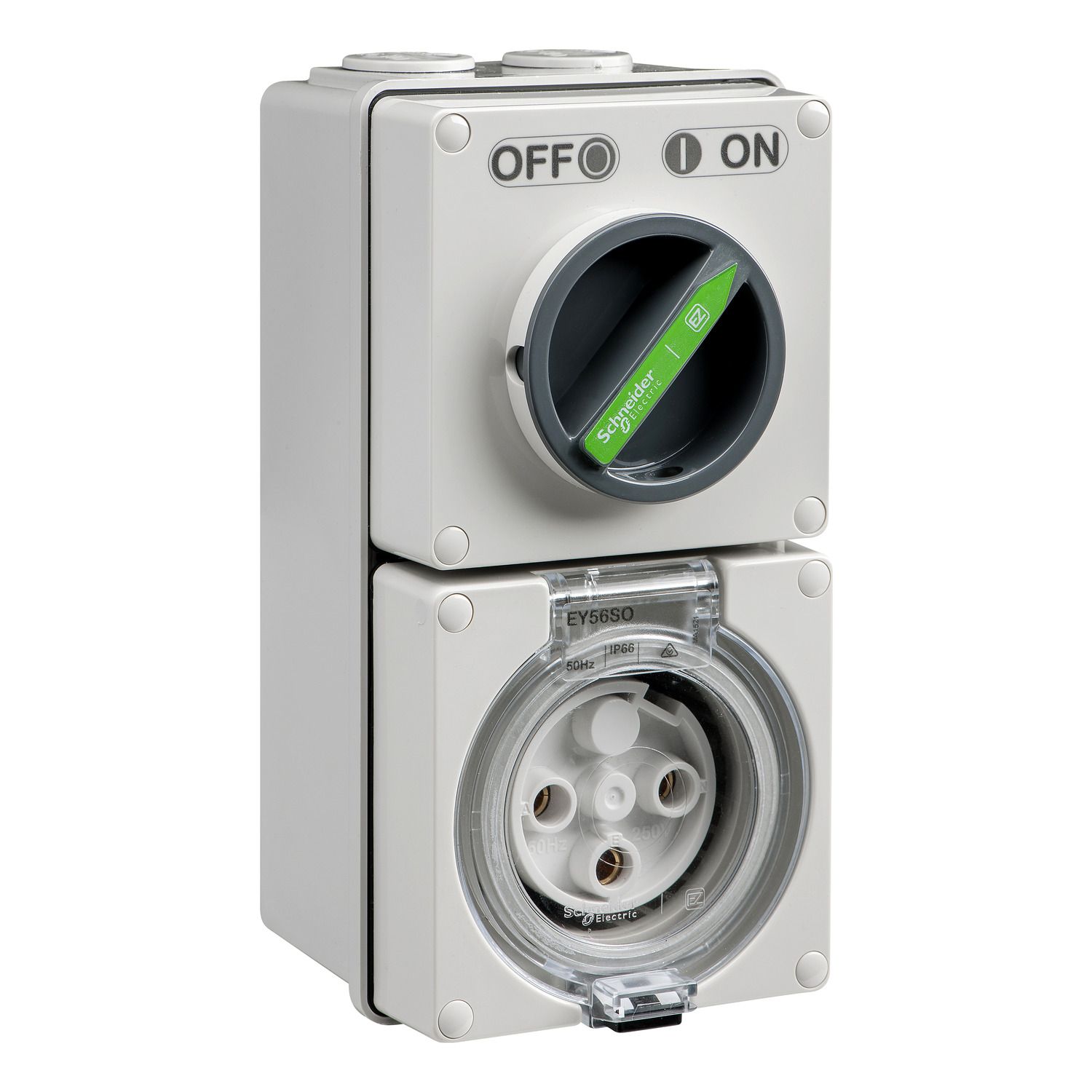

Easy56, Switched Socket, 3 Pin, 32A, 250V

$289.74 INC GST

Qty:

Available for Shipping : 16-Dec-2025

Easy56, Switched Socket, 3 Pin, 32A, 250V

Manufacturer: Schneider Electric

Delivery date: 16-Dec-2025

Instruction sheet

Declaration of conformity

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EY56C332
Plug, socket category	low voltage
Poles description	1P + N + E
Control type	rotary knob
Product name	Easy56
Product or component type	switch and socket-outlet
Outlet standard deviation	Australian/New Zealand
Network type	AC
Rotary handle padlocking	2 padlocks 8-8 mm
Complementary
[Ue] rated operational voltage	250 V
Depth	101 mm
Market segment	small commercial, industry, utility
Width	101 mm
Colour	rotary handle: dark grey, body: grey (RAL 7035)
Protection type	without protection
[In] rated current	32 A
Cable cross section	1-16 mm²
Cable entry number	1 x M32, 2 x M25
Mounting mode	surface mounted
Net weight	0.82 kg
Material	polycarbonate
Shape of pin	tubular
Plug, socket, control station shape	straight
Contacts material	pins: brass
Pin number	3 pins
Height	203 mm
Connections - terminals	screw terminals
Targeted country	New Zealand, Australia
Network frequency	50 Hz
Environment
Ambient air temperature for storage	-25-75 °C
IP degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25-75 °C
Standards	AS/NZS 3133, AS/NZS 3123
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.5 cm
Package 1 Width	10.5 cm
Package 1 Length	20.6 cm
Package 1 Weight	917.6 g
