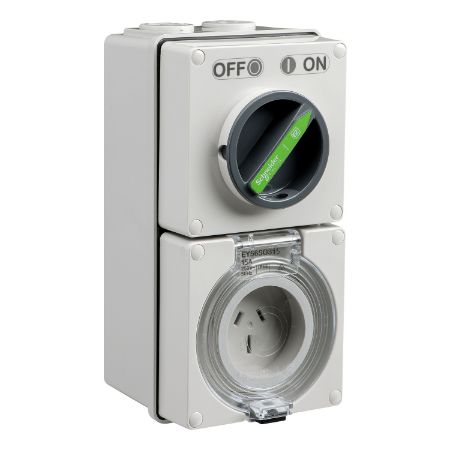

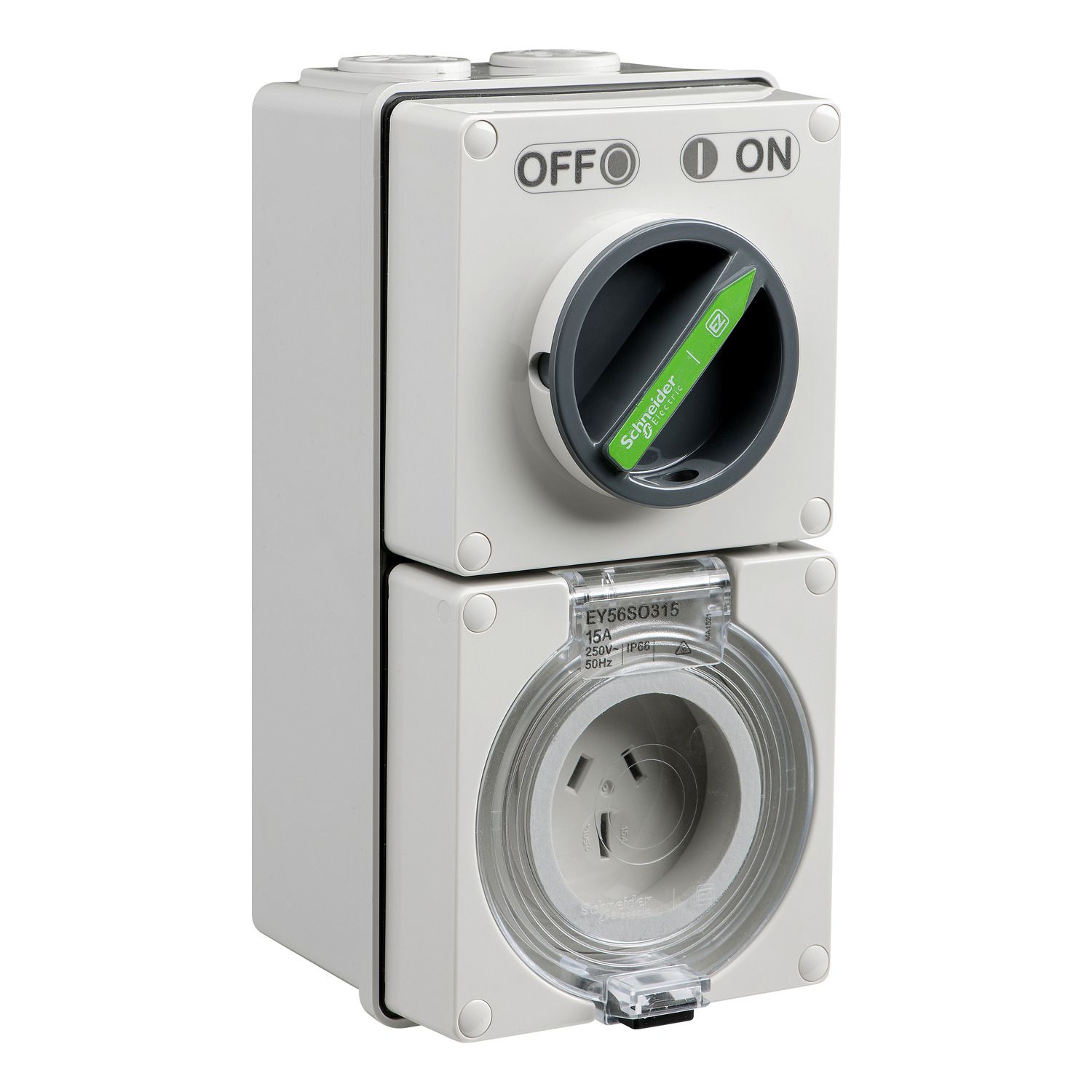

Picture of Easy56, Switched Socket, 3 Pin, 15A, 250V
SKU:

EY56C315

Easy56, Switched Socket, 3 Pin, 15A, 250V

$99.66 INC GST
Available for Shipping : 16-Dec-2025
Easy56, Switched Socket, 3 Pin, 15A, 250V
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Instruction sheet
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name EY56C315
Plug, socket category low voltage
Poles description 1P + N + E
Control type rotary knob
Product name Easy56
Product or component type switch and socket-outlet
Outlet standard deviation Australian/New Zealand
Network type AC
Rotary handle padlocking 2 padlocks 8-8 mm
Complementary
[Ue] rated operational voltage 250 V
Depth 101 mm
Market segment utility, small commercial, industry
Width 101 mm
Colour rotary handle: dark grey, body: grey (RAL 7035)
Protection type without protection
[In] rated current 15 A
Cable cross section 1.5-6 mm²
Cable entry number 1 x M32, 2 x M25
Mounting mode surface mounted
Net weight 0.82 kg
Material polycarbonate
Shape of pin flat
Plug, socket, control station shape straight
Contacts material pins: phosphor bronze
Pin number 3 pins
Height 203 mm
Connections - terminals screw terminals
Targeted country Australia, New Zealand
Network frequency 50 Hz
Environment
Quality labels RCM
Ambient air temperature for storage -25-75 °C
IP degree of protection IP66 conforming to AS 60529
Ambient air temperature for operation -25-75 °C
Standards AS/NZS 3133, AS/NZS 3112
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.4 cm
Package 1 Width 10.4 cm
Package 1 Length 20.7 cm
Package 1 Weight 861 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 21.8 cm
Package 2 Width 35.3 cm
Package 2 Length 45 cm
Package 2 Weight 10532 g
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 100 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 224640 g
