SKU:

EY56C310

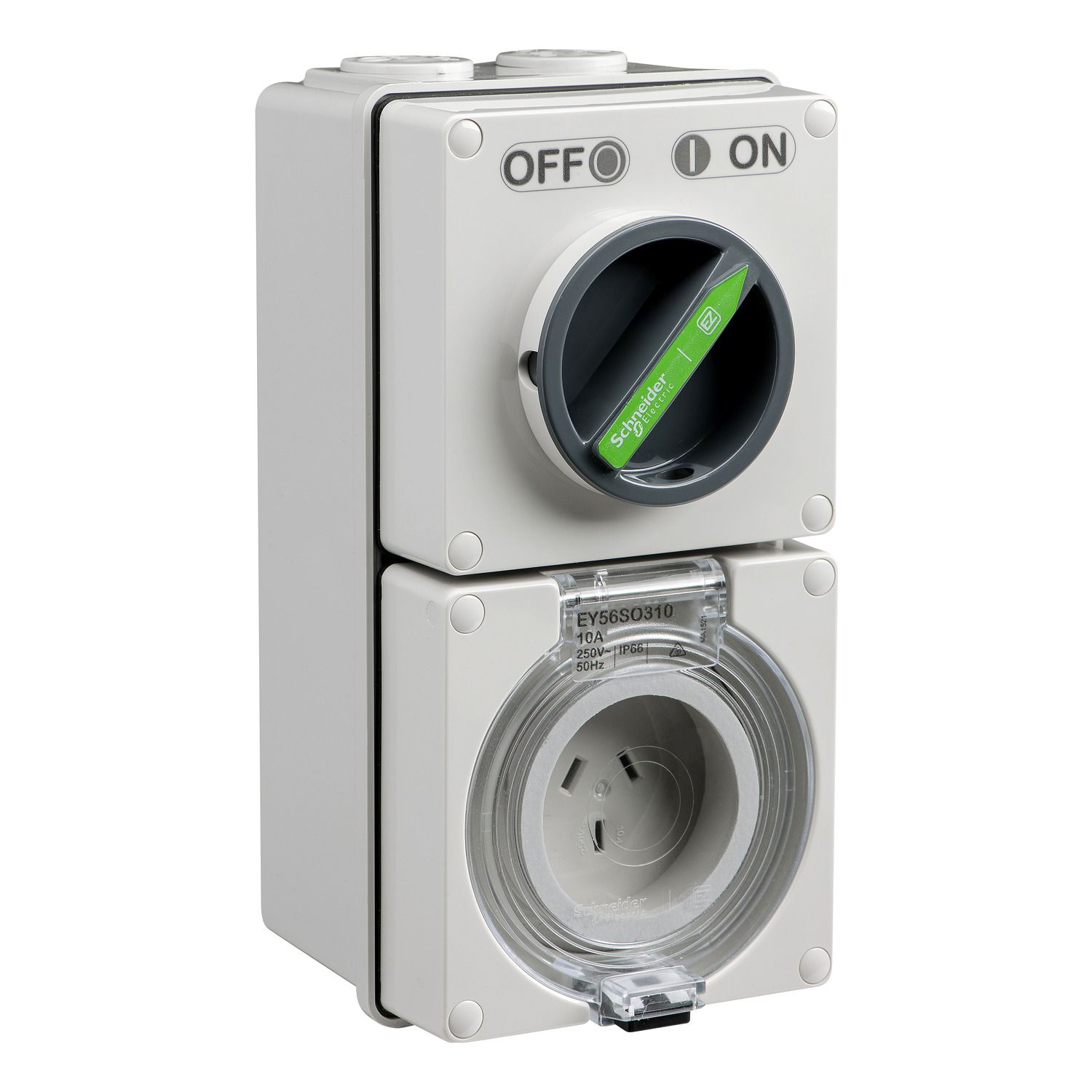

Easy56, Switched Socket, 3 Pin, 10A, 250V

$86.33 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

Easy56, Switched Socket, 3 Pin, 10A, 250V

Manufacturer: Schneider Electric

Instruction sheet

Environmental Disclosure

Declaration of conformity

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EY56C310
Plug, socket category	low voltage
Poles description	1P + N + E
Control type	rotary knob
Product name	Easy56
Product or component type	switch and socket-outlet
Outlet standard deviation	Australian/New Zealand
Network type	AC
Rotary handle padlocking	2 padlocks 8-8 mm
Complementary
[Ue] rated operational voltage	250 V
Depth	101 mm
Market segment	small commercial, industry, utility
Width	101 mm
Colour	rotary handle: dark grey, body: grey (RAL 7035)
Protection type	without protection
[In] rated current	10 A
Cable cross section	1.5-6 mm²
Cable entry number	1 x M32, 2 x M25
Mounting mode	surface mounted
Net weight	0.82 kg
Material	polycarbonate
Shape of pin	flat
Plug, socket, control station shape	straight
Contacts material	pins: phosphor bronze
Pin number	3 pins
Height	203 mm
Connections - terminals	screw terminals
Targeted country	New Zealand, Australia
Network frequency	50 Hz
Environment
Quality labels	RCM
Ambient air temperature for storage	-25-75 °C
IP degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25-75 °C
Standards	AS/NZS 3133, AS/NZS 3112
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.4 cm
Package 1 Width	10.4 cm
Package 1 Length	20.7 cm
Package 1 Weight	861 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	224 cm
Package 2 Width	360 cm
Package 2 Length	448 cm
Package 2 Weight	9.84 kg
