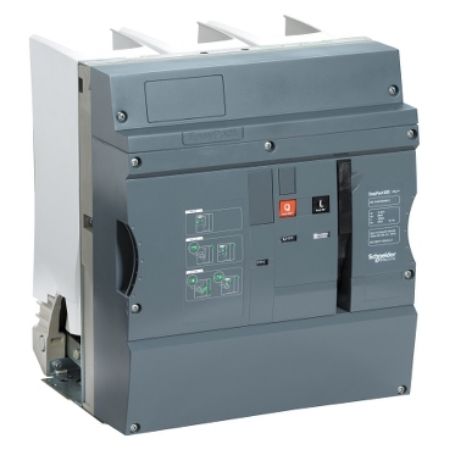

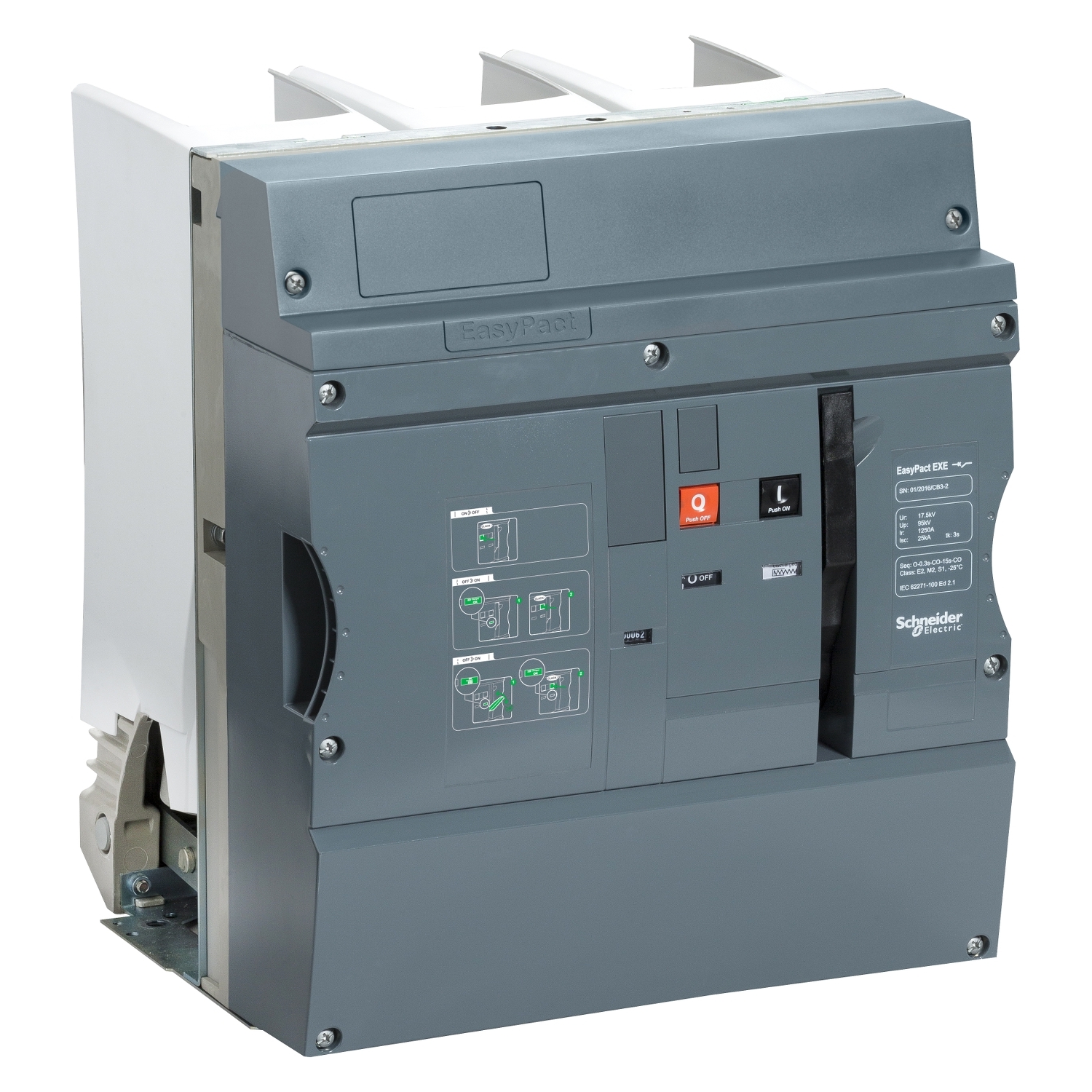

Picture of MV vacuum circuit breaker, EasyPact EXE, basic function, 12kV, 2000A, 25kA 3s, 185mm, IEC
SKU:

EXE122520B1B

MV vacuum circuit breaker, EasyPact EXE, basic function, 12kV, 2000A, 25kA 3s, 185mm, IEC

$17,410.80 INC GST
Available for Shipping : 01-Apr-2026
MV vacuum circuit breaker, EasyPact EXE, basic function, 12kV, 2000A, 25kA 3s, 185mm, IEC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 01-Apr-2026
Environmental Disclosure
CAD
Circularity Profile
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Number of poles 3
Rated single capacitor bank-breaking current (Isb) 400 A
Rated line-charging breaking current (Il) 10 A
Rated peak withstand current (Ip) 65 kA 60 Hz, 62.5 kA 50 Hz
Rated short-duration power frequency withstand voltage (Ud) / Common value 38 kV
Rated continuous current (Ir) 2000 A
Rated cable-charging breaking current (Ic) 25 A
Rated lightning impulse withstand voltage (Up) / Common value 95 kV
Master range Easy Series
Rated voltage (Ur) 12 kV
Rated frequency (fr) 50/60 Hz
Rated short-circuit making current 65 kA 60 Hz, 62.5 kA 50 Hz
Rated duration of short-circuit (tk) 3 s
Type of installation indoor
Rated operating sequence O - 0.3 s - CO - 15 s - CO, O - 0.3 s - CO - 3 min - CO, O - 3 min - CO - 3 min - CO
Product name EasyPact EXE
DC time constant (τ) 45 ms
Product or component type circuit breaker
Rated out-of-phase breaking current (Id) 7.88 kA
Rated short-circuit breaking current (Isc) 25 kA
Integration type fixed
Variant basic function
Standards IEC 62271-100:2012
Switching device circuit breaker
Pole type open
Network type AC
Rated short-time withstand current (Ik) 25 kA
Range of product EasyPact
Rated first pole-to-clear factor (kpp) 1.5
DC component 30 %
Breaking technology vacuum
Complementary
Motor charging time <= 7 s
Depth 429 mm
Width 550 mm
Operating time < 71 ms closing time, < 66 ms break-time, < 50 ms opening time
Classification for the connection to the network S1
Classification for number of mechanical operations M2
Number of mechanical operations 10000 operating cycles
Clearance in air to earth 140 mm
Mass 65 kg
Classification for electrical endurance E2
Upper lower connection distance 270 mm
Phase distance 185 mm
Number of operations at short-circuit breaking current 50
Classification for capacitive currents C2
Auxiliary contact composition 4 NO + 4 NC
Height 527 mm
Environment
Operating altitude 0...1000 m
Humidity conditions average relative humidity over 24 h <= 95 %, average relative humidity over 1 month <= 90 %
Ambient air temperature for storage -25-55 °C
Ambient air temperature for operation -25-40 °C
Product certifications ASEFA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 58.700 cm
Package 1 Width 80.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 70.000 kg
