SKU:

ETO500

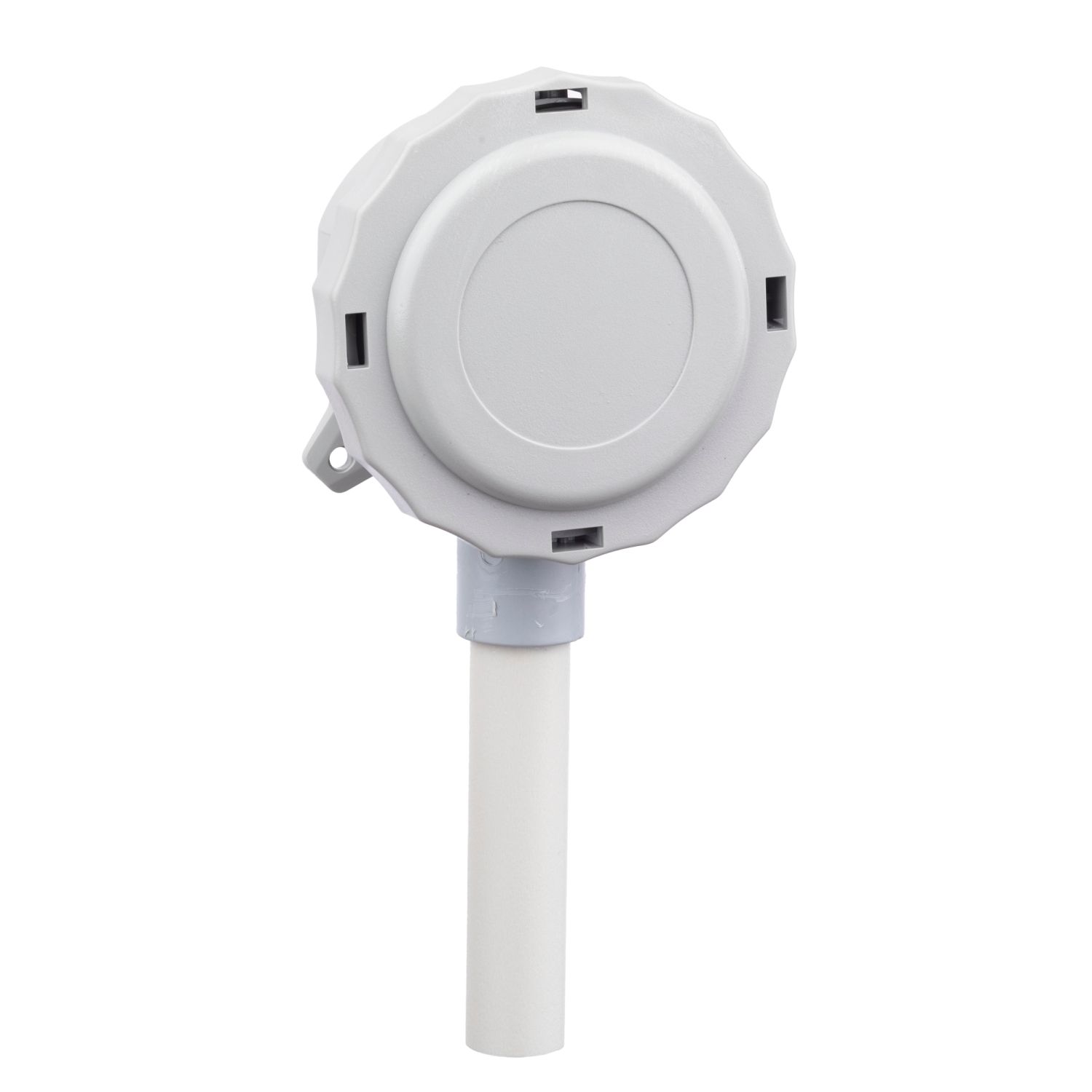

Temp Sensor, Outside Air, Acc: +/- 0.2 C, 10K Ohm Thermistor, Continuum

$87.54 INC GST

Qty:

Available for Shipping : 11-May-2026

Temp Sensor, Outside Air, Acc: +/- 0.2 C, 10K Ohm Thermistor, Continuum

Manufacturer: Schneider Electric

Delivery date: 11-May-2026

Catalog

Instruction sheet

Product Page Link

Product Data Sheet

Temp Sensor, Outside Air, Acc: +/- 0.2 C, 10K Ohm Thermistor, Continuum

Attribute name	Attribute value
Main
Device short name	ETO
Device application	outdoor reference
Depth	57 mm
Temperature resolution	0.1 °C
Colour	grey and white
Output type	resistive output
Width	91 mm
Sensor type	10 kOhm type 3 thermistor temperature
Relative humidity	0-90 % Continuum
Product specific application	for outdoor air
Function available	high accuracy and interchangeability over wide range, non polarity sensitive
Location	outdoor
Product or component type	sensor
Type of measurement	temperature
Targeted region	North America.
Mounting support	outdoor wall
Range of product	TAC american sensor
Calibration certificate	none
Height	57 mm
Complementary
Diameter	22 mm probe:
Material	ABS thermoplastic: enclosure
Connections - terminals	wire (AWG 22)
Environment
Measurement range	- 40...150 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	22.6 cm
Package 1 Width	10.1 cm
Package 1 Length	5.5 cm
Package 1 Weight	0.091 kg
