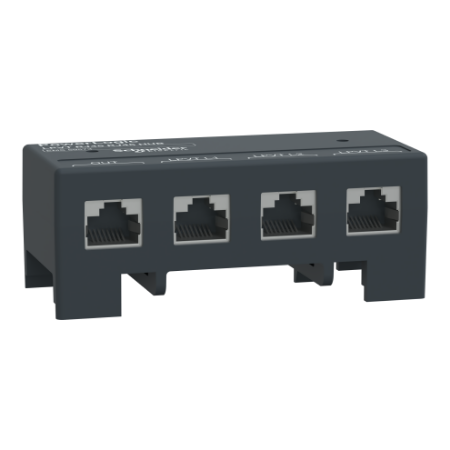

Picture of PowerLogic LPVT voltage adapter, RJ45 input, RJ45 output for SC150
SKU:

EMS59573

PowerLogic LPVT voltage adapter, RJ45 input, RJ45 output for SC150

Old price: $366.66 INC GST
$329.99 INC GST
Available for Shipping : 01-Mar-2026

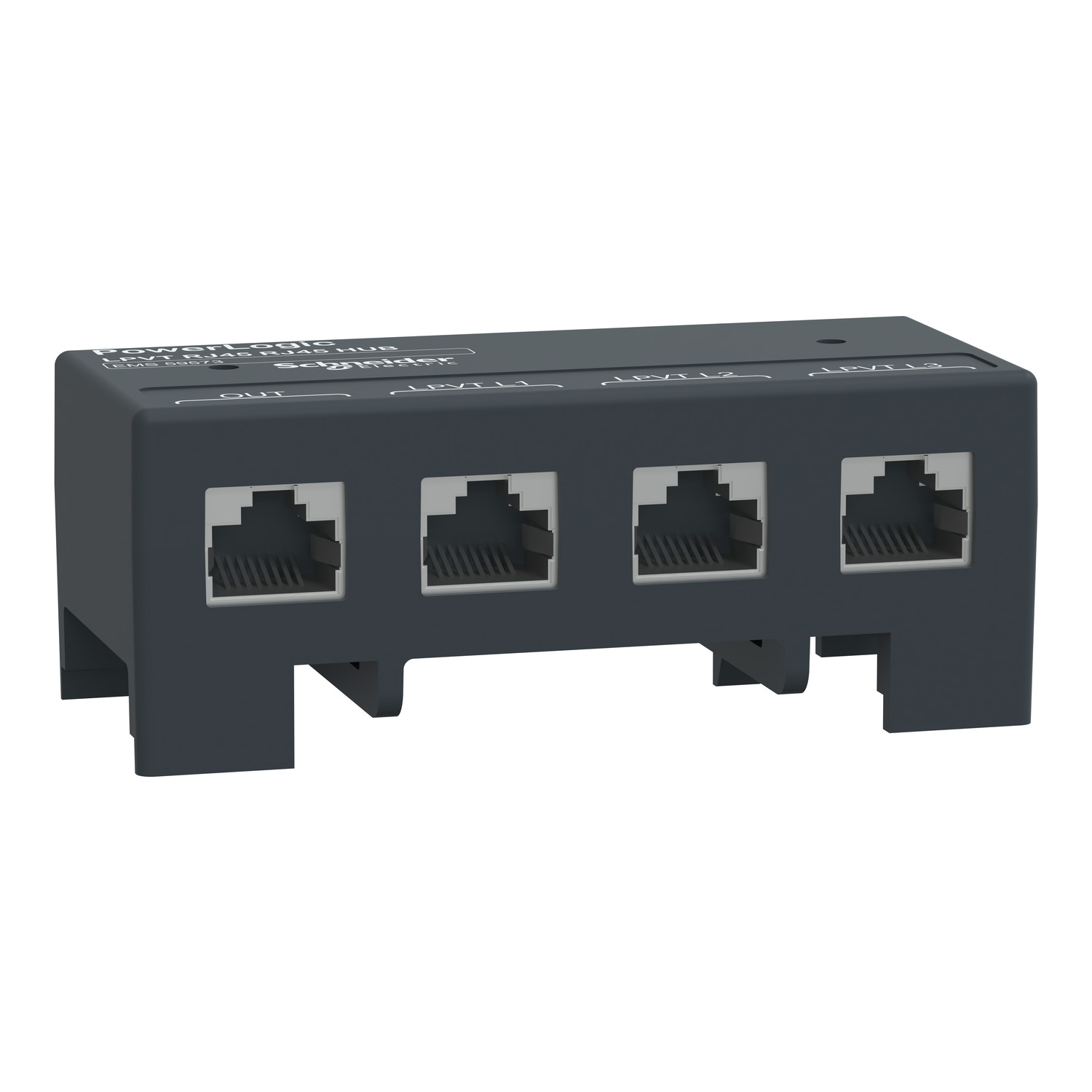

PowerLogic LPVT voltage adapter, RJ45 input, RJ45 output for SC150
  • Flexible voltage adapter
  • Un rated voltage is 11 to 36 Kv
  • Include 3 RJ45 inputs, and RJ45 communication port for output
  • Voltage sensor used with SC150 module
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 01-Mar-2026
Environmental Disclosure
Catalog
Circularity Profile
User guide
Product Page Link
Product Data Sheet
This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 11 to 36 Kv. It include 3 RJ45 inputs, and RJ45 communication port for output. Complient to standards IEC 60044-7, CE certification. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 40 mm in height, 40 mm in width and 95 mm in length.

Products specifications

Attribute name Attribute value
Main
Product or component type hub connector
Range of product PowerLogic T300
Complementary
Rated voltage 11-36 kV
Input voltage < 10 V
Input voltage limits < 30 V
Electrical connection input: 3 connector RJ45, output: connector RJ45
Network frequency 50/60 Hz
Environment
Operating altitude <= 2000 m
Width 40 mm
Fire resistance 850 °C conforming to IEC 60695-2-11
Relative humidity 95-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage -40-85 °C
IP degree of protection IP30 conforming to IEC 60529
Net weight 0.25 kg
Length 95 mm
Environmental characteristic salt mist: 200 h conforming to IEC 60068-2-11
Mounting support DIN rail
Standards IEC 60044-7
Ambient air temperature for operation -40-85 °C
Height 40 mm
IK degree of protection IK07 conforming to IEC 62262
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 4.000 cm
Package 1 Length 9.500 cm
Package 1 Weight 138.600 g
Unit Type of Package 2 2
Number of Units in Package 2 70
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.002 kg

Related products

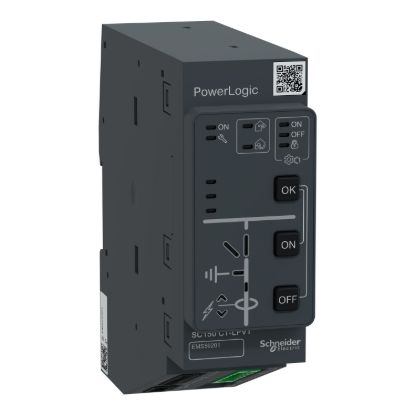

Picture of PowerLogic SC150 CT-LPVT/VT: Switch controller, 1/5 A, LPVT/VT sensors

PowerLogic SC150 CT-LPVT/VT: Switch controller, 1/5 A, LPVT/VT sensors

EMS59201
$2,326.50 INC GST $2,585.00 INC GST
View Detail

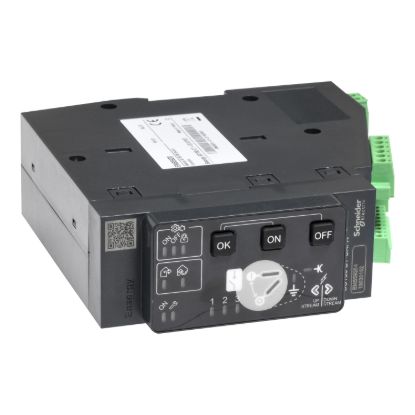

Picture of PowerLogic SC150H CT-LPVT/VT: Horizontal switch controller, 1/5A, LPVT/VT sensors
