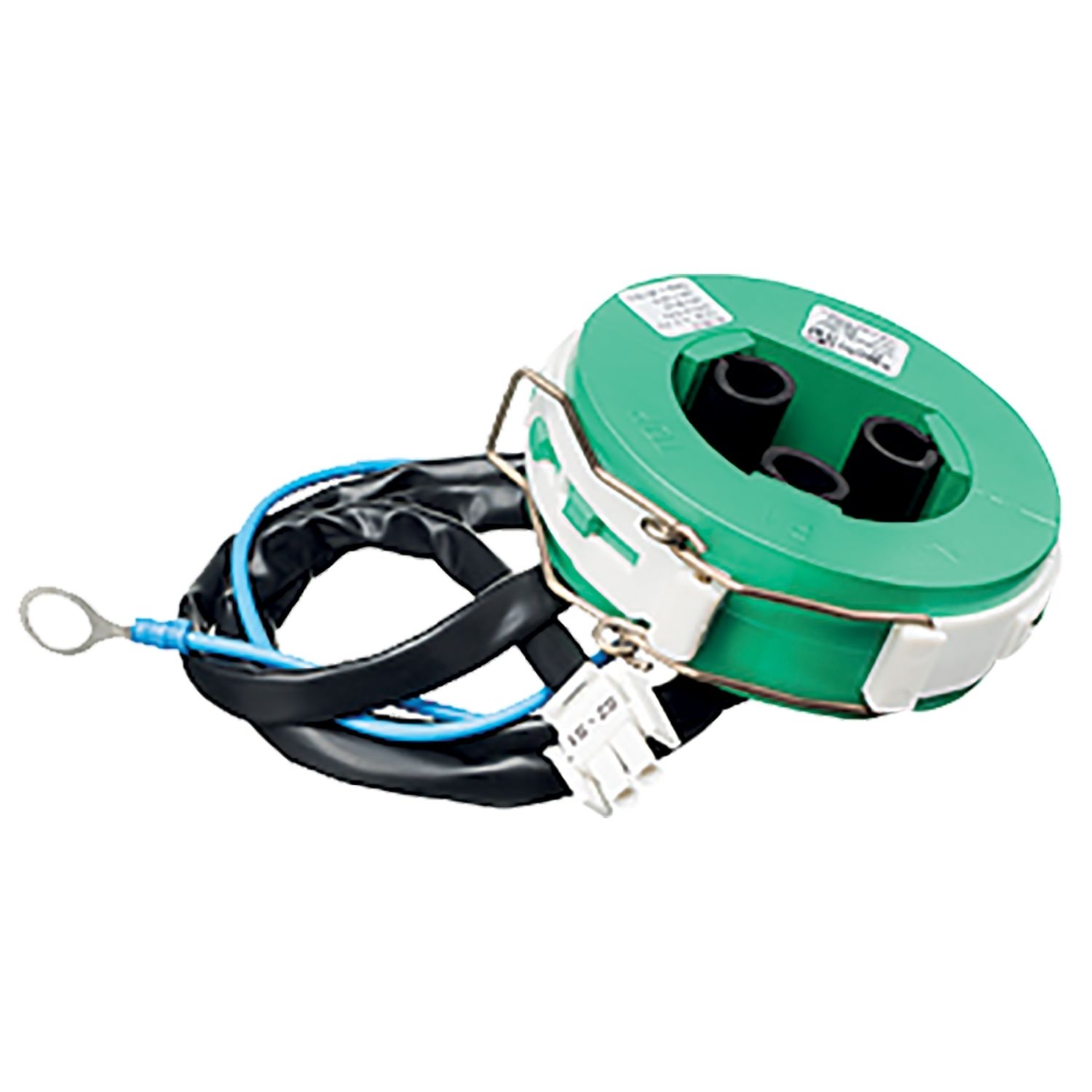

Picture of Kit 3 PowerLogic SCTR500-1 500/1 class 3 Current Transformers (KSCTR500-1)
SKU:

EMS58175

Kit 3 PowerLogic SCTR500-1 500/1 class 3 Current Transformers (KSCTR500-1)

Old price: $861.66 INC GST
$775.49 INC GST
Available for Shipping : 05-Jan-2026
Kit 3 PowerLogic SCTR500-1 500/1 class 3 Current Transformers (KSCTR500-1)
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
User guide
Catalog
Product Page Link
Product Data Sheet
This current transformer, has a line rated current of 500 A and a secondary current rating of 1 A. This current transformer allow a maximum cable outer diameter of 110 mm. rated power and accuracy class as follows: class 3 rated power: 1.5 VA.

Products specifications

Attribute name Attribute value
Main
Device short name SCTR500-1
Current transformer type split core
Accuracy class class 3
Current transformer ratio 500/1
Product or component type current transformer
Primary operational current 500 A
Standards IEC 61869
Range of product PowerLogic T300, Easergy Flair 5xx, Easergy ITI3
Secondary current 1 A
Network frequency 50/60 Hz
Complementary
Diameter 110 mm outer:
Cable outer diameter 30-40 mm
Product compatibility EMS58137, EMS58136, EMS58135, EMS58134, EMS58133, EMS58132, EMS58131, EMS58130
Protection type surge arrester
[Uoc] open circuit voltage 5 kV peak, 1 kV RMS voltage
[Ui] rated insulation voltage 4 kV for 1 min
Dynamic withstand current 2.5 x Ith
Connector type AMP connector
Load impedance ohmic 1.5 Ohm
Rated power in VA 1.5 VA
Safety factor 7
Maximum number of turns 491
[Ith] conventional free air thermal current 50 kA for 1 s
[Ithe] conventional enclosed thermal current 600 A
Mounting support cables
[Uimp] rated impulse withstand voltage 5 kV
Height 35 mm
Primary voltage limit < 720 V
Environment
Relative humidity 0-90 % for 1 month, 0-95 % for 24 hours
IP degree of protection IP30 conforming to IEC 60529
Environmental characteristic 3C1 conforming to IEC 60721-3-3
Ambient air temperature for operation -40-70 °C
IK degree of protection IK07 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 24.000 cm
Package 1 Length 25.000 cm
Package 1 Weight 2.428 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.538 kg
