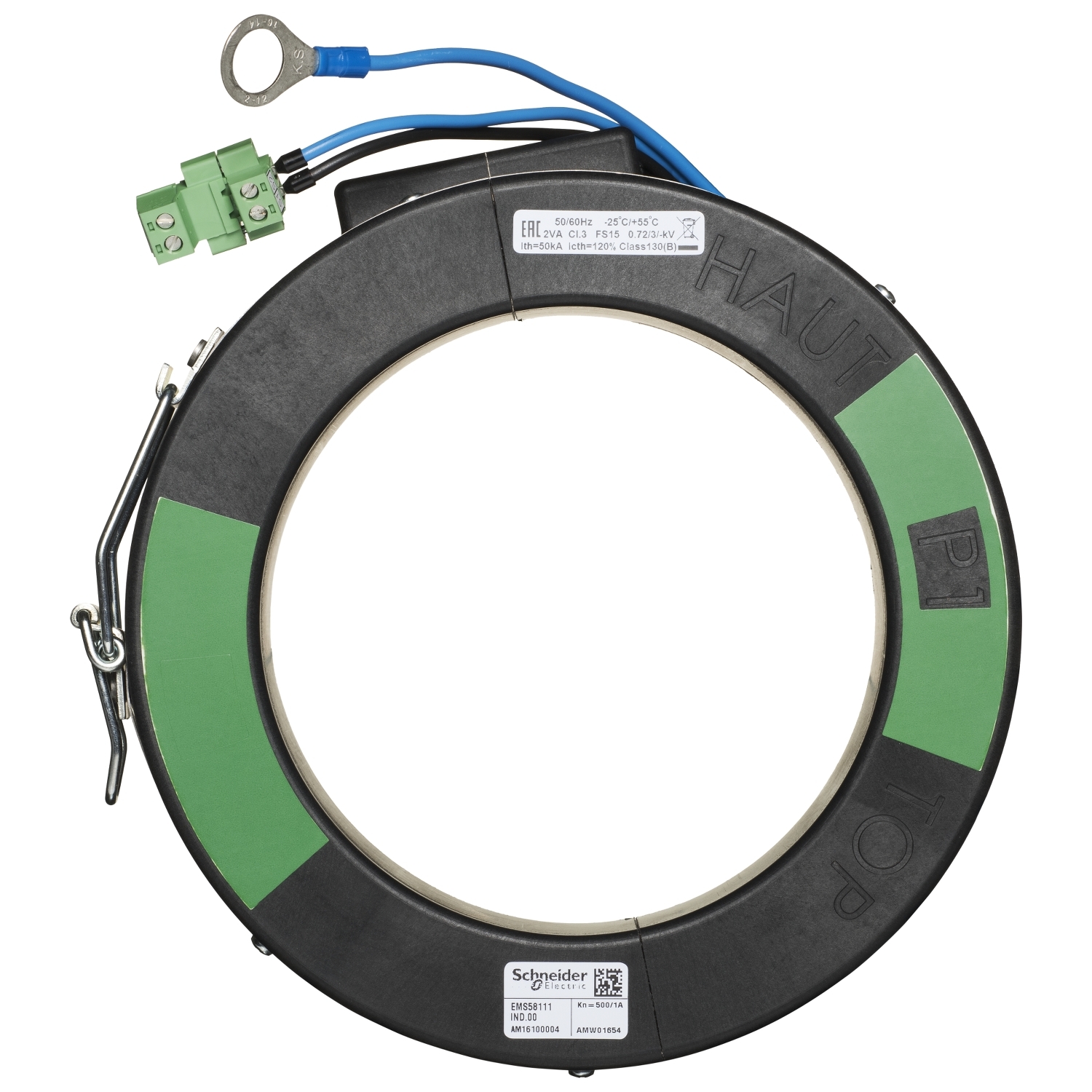

Picture of PowerLogic SCTRH500-1 split core unbalance Current Transformer 500/1 with 1m cable
SKU:

EMS58111

PowerLogic SCTRH500-1 split core unbalance Current Transformer 500/1 with 1m cable

Old price: $586.66 INC GST
$527.99 INC GST
Available for Shipping : 03-Feb-2026
PowerLogic SCTRH500-1 split core unbalance Current Transformer 500/1 with 1m cable
  • Current transformer
  • Line rated current of 500 A
  • Secondary current rating of 1 A
  • 1 split core balanced CT 500/1 CL3
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
User guide
Catalog
Product Page Link
Product Data Sheet
This current transformer, has a line rated current of 500 A and a secondary current rating of 1 A. This current transformer allow a maximum cable outer diameter of 190 mm. rated power and accuracy class as follows: class 3 rated power: 1.5 VA.

Products specifications

Attribute name Attribute value
Main
Device short name SCTRH500-1
Current transformer type split core
Accuracy class class 3
Current transformer ratio 500/1
Product or component type current transformer
Primary operational current 500 A
Range of product PowerLogic T300
Secondary current 1 A
Network frequency 50/60 Hz
Complementary
Diameter 190 mm outer:
Cable outer diameter 132-132 mm
Protection type surge arrester
[Uoc] open circuit voltage 5 kV peak, 1 kV RMS voltage
[Ui] rated insulation voltage 3 kV for 1 min
Dynamic withstand current 2.5 x Ith
Load impedance ohmic 1.5 Ohm
Rated power in VA 1.5 VA
Safety factor 17
[Ith] conventional free air thermal current 50 kA for 1 s
[Ithe] conventional enclosed thermal current 600 A
Mounting support cables
Terminal block type 2 screw terminals
Height 43 mm
Primary voltage limit < 720 V
Environment
Relative humidity 0-90 % for 1 month, 0-95 % for 24 hours
IP degree of protection IP30 conforming to IEC 60529
Environmental characteristic 3C1 conforming to IEC 60721-3-3
Ambient air temperature for operation -25-55 °C
IK degree of protection IK07 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 24 cm
Package 1 Length 25 cm
Package 1 Weight 2.22 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 11.5 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 105 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 288 kg
