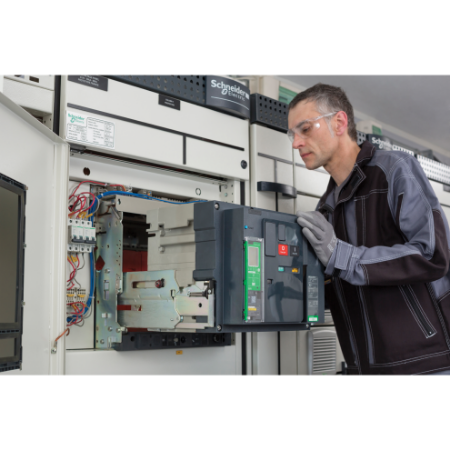

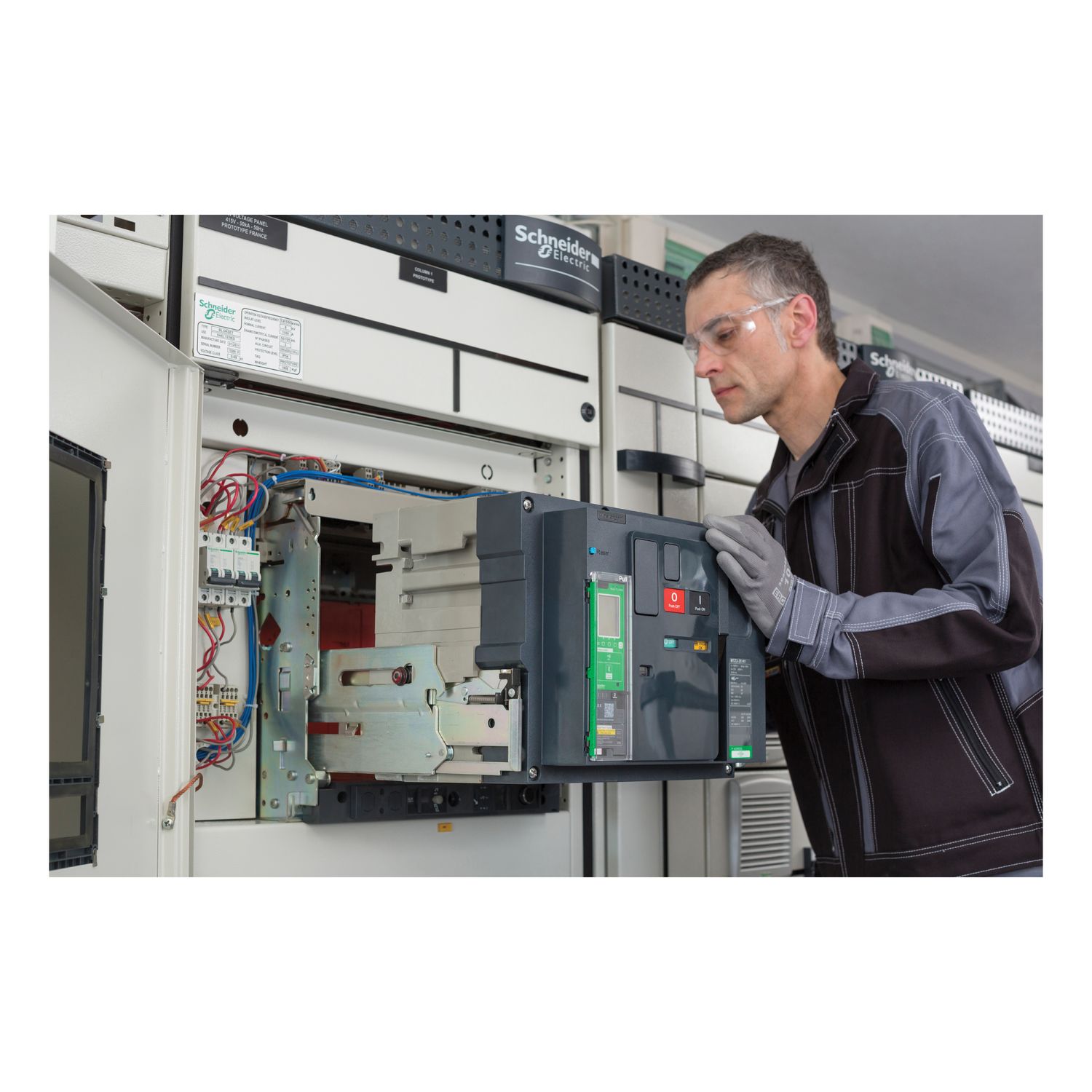

Picture of switch-disconnector Masterpact P&P MTZ 32HF - 3200 A - 690 V - 3 poles - drawout
SKU:

EF598316

switch-disconnector Masterpact P&P MTZ 32HF - 3200 A - 690 V - 3 poles - drawout

$48,523.20 INC GST
Availability: Please contact our sales team on 1300 724 622.
switch-disconnector Masterpact P&P MTZ 32HF - 3200 A - 690 V - 3 poles - drawout
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range MasterPacT
Device short name Masterpact P&P MTZ 32
Device application distribution
Product name Masterpact P&P MTZ 32
[Uimp] rated impulse withstand voltage 12 kV conforming to IEC 60947-3
Product or component type switch disconnector
Visible break no
Poles description 3P
Breaking capacity code HF
Network type AC
[Ie] rated operational current 3200 A AC 50/60 Hz 690 V
Suitability for isolation yes conforming to IEC 60947-3
Contact position indicator yes
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
[Ui] rated insulation voltage 1000 V AC 50/60 Hz conforming to IEC 60947-3
Range of product Masterpact P&P MTZ
[Icm] rated short-circuit making capacity 187 kA 220...690 V AC at 50/60 Hz
Pollution degree 4 conforming to IEC 60664-1
Network frequency 50/60 Hz
Complementary
Control type push-button
Net weight 60 kg
[Icw] rated short-time withstand current 75 kA during 3 s conforming to IEC 60947-3, 85 kA during 1 s conforming to IEC 60947-3
Depth 297 mm
Width 442 mm
Maximum operating rate 3 cyc/mn
Compatibility code Masterpact P&P MTZ 32
Mounting support chassis
Mechanical durability 20000 cycles with maintenance conforming to IEC 60947-3, 10000 cycles without maintenance conforming to IEC 60947-3
Connection pitch 115 mm
Electrical durability AC-23A: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3, AC-23A: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3, AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3
Mounting mode drawout
Height 352 mm
Environment
Standards IEC 60947-3
Ambient air temperature for storage -35-85 °C
Ambient air temperature for operation -25-70 °C
Product certifications ASEFA, ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 37.5 cm
Package 1 Width 30.5 cm
Package 1 Length 29.5 cm
Package 1 Weight 51.376 kg
