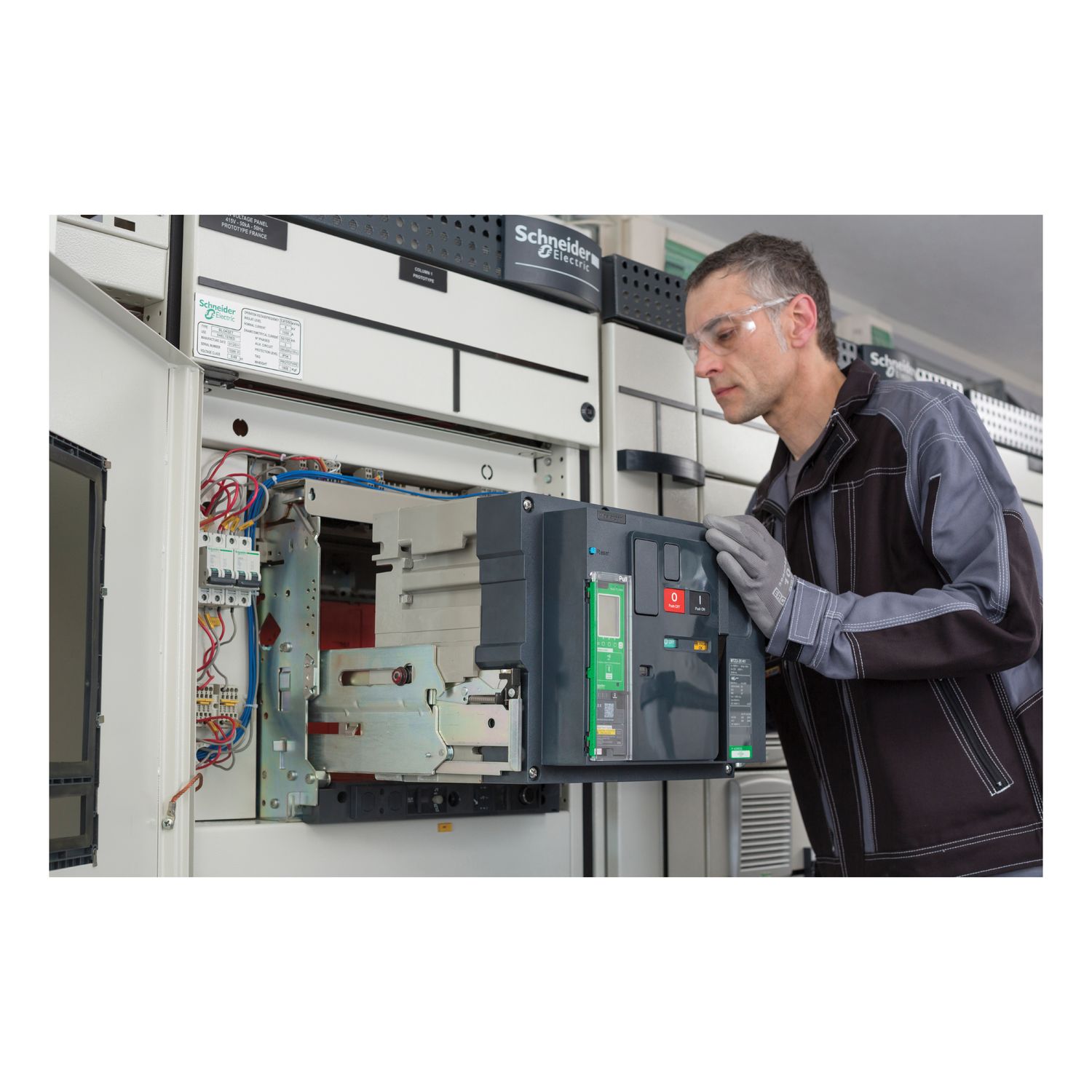

Picture of circuit breaker Masterpact P&P MTZ2 20H1 - 2000 A - 3P - drawout - w/o trip unit
SKU:

EF598287

circuit breaker Masterpact P&P MTZ2 20H1 - 2000 A - 3P - drawout - w/o trip unit

$14,625.60 INC GST
Availability: Please contact our sales team on 1300 724 622.
circuit breaker Masterpact P&P MTZ2 20H1 - 2000 A - 3P - drawout - w/o trip unit
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range MasterPacT
Device short name Masterpact P&P MTZ 20
Device application distribution
Product name Masterpact P&P MTZ 20
Product or component type basic frame
Poles description 3P
Breaking capacity code H1
Network type AC
Suitability for isolation yes conforming to IEC 60947-2
Range of product Masterpact P&P MTZ
Utilisation category category B
Complementary
Maximum closing response time 70 ms
Control type push-button
[Icw] rated short-time withstand current 65 kA 1 s conforming to IEC 60947-2, 36 kA 3 s conforming to IEC 60947-2
Circuit breaker CT rating 2000 A
Depth 297 mm
Width 442 mm
[Uimp] rated impulse withstand voltage 12 kV conforming to IEC 60947-2
Compatibility code Masterpact P&P MTZ 20
Maximum breaking time 25 ms
Mechanical durability 20000 cycles with maintenance conforming to IEC 60947-2, 10000 cycles without maintenance conforming to IEC 60947-2
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 1000 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch 115 mm
Electrical durability AC-23A: 8000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2, AC-23A: 6000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2, AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2, 8000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2, 6000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
[Icm] rated short-circuit making capacity 143 kA 440 V AC at 50/60 Hz, 143 kA 220/415 V AC at 50/60 Hz, 143 kA 690 V AC at 50/60 Hz, 143 kA 525 V AC at 50/60 Hz
Breaking capacity 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 220/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 600 V AC 50/60 Hz conforming to NEMA AB1 HIC, 65 kA at 240/480 V AC 50/60 Hz conforming to NEMA AB1 HIC
Mounting mode drawout
Height 352 mm
[In] rated current 2000 A at 40 °C
[Ics] rated service breaking capacity 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 220/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency 50/60 Hz
Environment
Standards NEMA AB1 HIC, IEC 60947-2
Ambient air temperature for storage -40-85 °C
Pollution degree 4 conforming to IEC 60664-1
Ambient air temperature for operation -5-70 °C
Product certifications ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.5 cm
Package 1 Width 29.5 cm
Package 1 Length 37.5 cm
Package 1 Weight 48.422 kg
