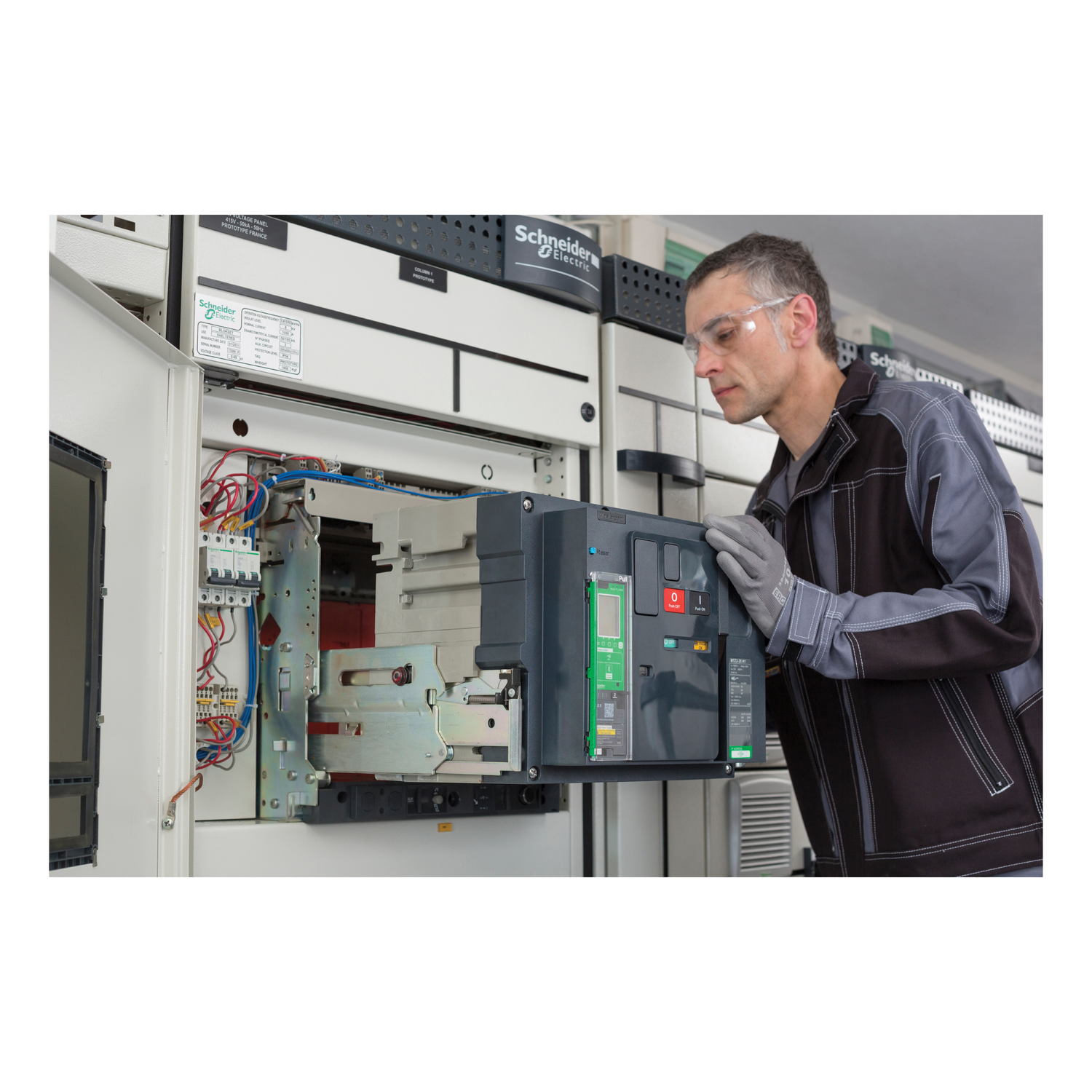

Picture of Masterpact P&P MTZ 08,Basic frame,N2,3 poles,AC,50/60Hz,800A,40°C,1000V,IEC 60947-2,12kV,Icu,cat B
SKU:

EF595389

Masterpact P&P MTZ 08,Basic frame,N2,3 poles,AC,50/60Hz,800A,40°C,1000V,IEC 60947-2,12kV,Icu,cat B

$9,589.80 INC GST
Availability: Please contact our sales team on 1300 724 622.
Masterpact P&P MTZ 08,Basic frame,N2,3 poles,AC,50/60Hz,800A,40°C,1000V,IEC 60947-2,12kV,Icu,cat B
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range MasterPacT
Device short name Masterpact P&P MTZ 08
Device application distribution
Product name Masterpact P&P MTZ 08
Product or component type basic frame
Poles description 3P
Breaking capacity code N2
Network type AC
Suitability for isolation yes conforming to IEC 60947-2
Range of product Masterpact P&P MTZ
Utilisation category category B
Complementary
Maximum closing response time 70 ms
Control type push-button
Circuit breaker CT rating 800 A
Depth 297 mm
Width 442 mm
[Uimp] rated impulse withstand voltage 12 kV conforming to IEC 60947-2
Compatibility code Masterpact P&P MTZ 08
Maximum breaking time 25 ms
Mechanical durability 25000 cycles with maintenance conforming to IEC 60947-2, 12500 cycles without maintenance conforming to IEC 60947-2
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 1000 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch 115 mm
Electrical durability 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2, 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
Breaking capacity 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode drawout
Height 352 mm
[In] rated current 800 A at 40 °C
[Ics] rated service breaking capacity 50 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency 50/60 Hz
Environment
Standards NEMA AB1 HIC, IEC 60947-2
Ambient air temperature for storage -40-85 °C
Pollution degree 4 conforming to IEC 60664-1
Ambient air temperature for operation -5-70 °C
Product certifications ASTA, ASEFA
