SKU:

EBXA-USB-ZIGBEE

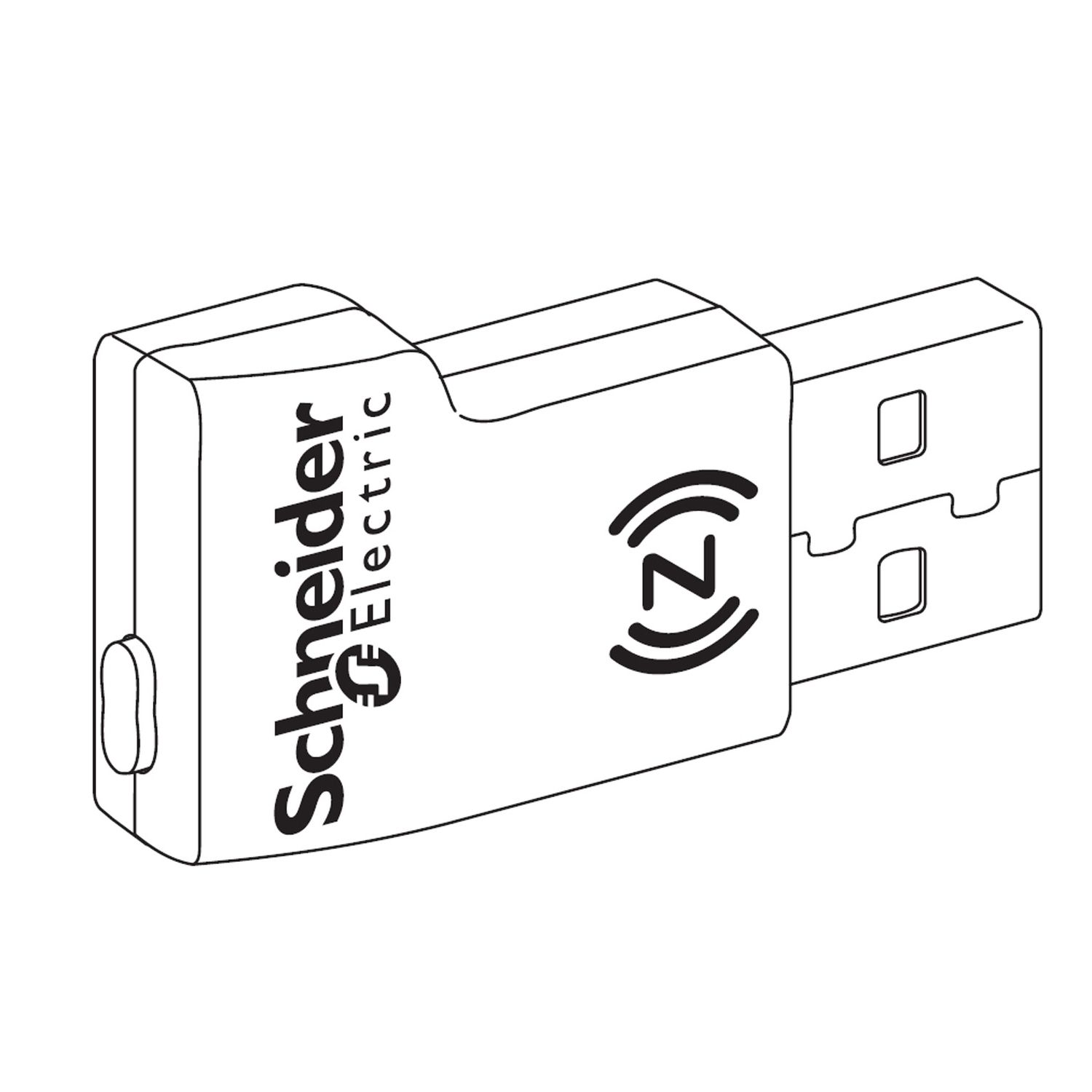

Zigbee receiver for Com'X 200/210/510

Please contact our sales team to buy on click here

Availability: Please contact our sales team on 1300 724 622.

Zigbee receiver for Com'X 200/210/510

Manufacturer: Schneider Electric

Instruction sheet

Declaration of conformity

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Number of channels	1
Transmission rate	12 Mbps
Range	PowerLogic
Product or component type	USB interface
Bandwidth	2405-2480 MHz ETSI conforming to IEEE 802.15.4, 2405-2480 MHz FCC conforming to IEEE 802.15.4
Range of product	PowerLogic
Complementary
Depth	9 mm
Compatibility code	USB interface
Communication port protocol	USB
Current consumption	RX (reception) <= 70 mA for 5 V DC, TX (transmission) <= 100 mA for 5 V DC
Height	19 mm
Communication network type	ZigBee
[Us] rated supply voltage	5 V DC
Environment
Width	38 mm
Ambient air temperature for storage	-40-85 °C
Standards	IEEE 802.15.4
Ambient air temperature for operation	-25-85 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.8 cm
Package 1 Width	1.9 cm
Package 1 Length	0.9 cm
Package 1 Weight	0.015 g
Unit Type of Package 2	2
Number of Units in Package 2	1
Package 2 Height	10.0 cm
Package 2 Width	5.0 cm
Package 2 Length	5.0 cm
Package 2 Weight	34.0 g
Unit Type of Package 3	3
Number of Units in Package 3	35
Package 3 Height	15.0 cm
Package 3 Width	30.0 cm
Package 3 Length	40.0 cm
Package 3 Weight	1.33 kg
