SKU:

DZ5CA005D

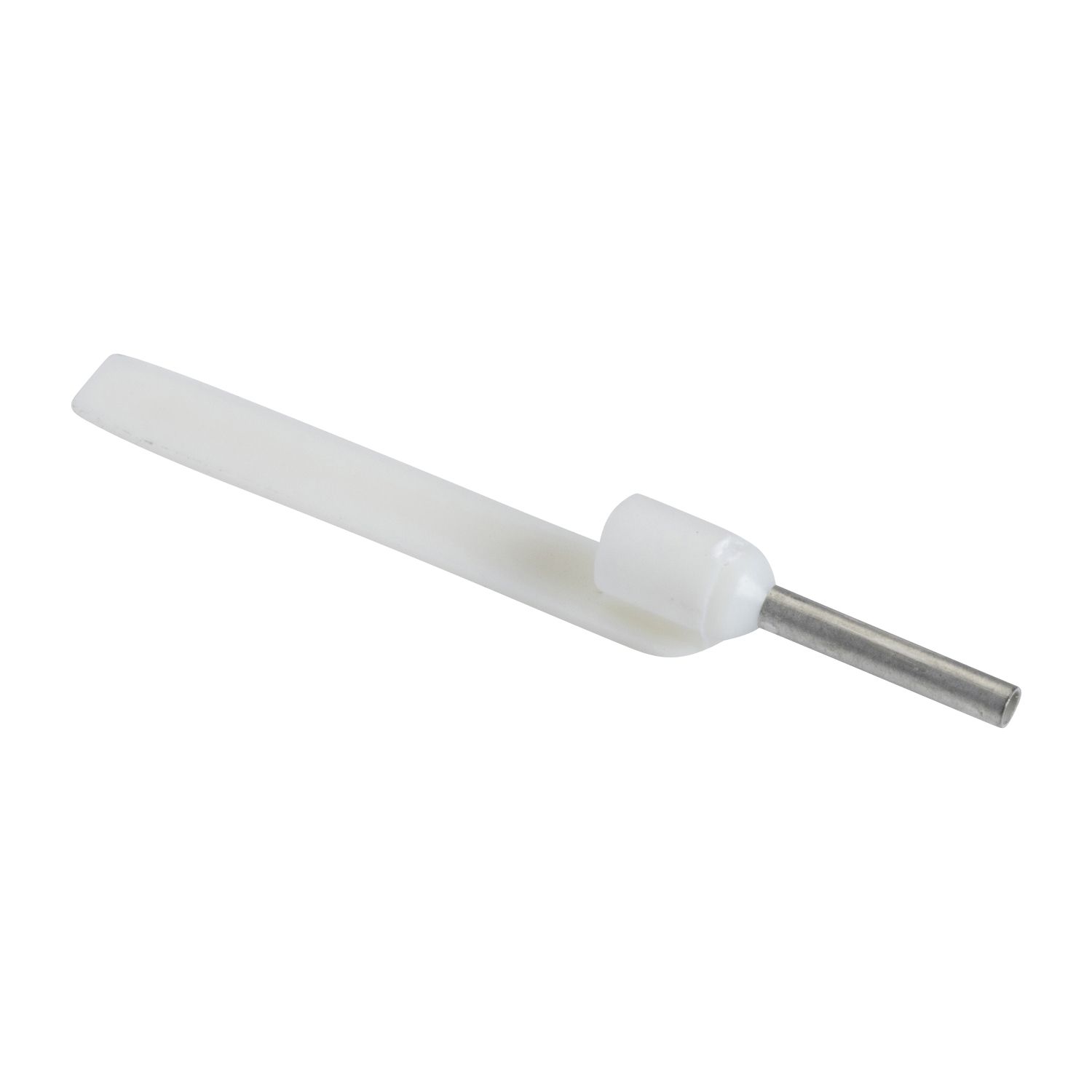

Cable end, Linergy TR cable ends, Single conductor, white, 0.5mm², medium size, markable, insulated, 10 sets of 100

$0.44
Available for Shipping : 30-Oct-2024
Cable end, Linergy TR cable ends, Single conductor, white, 0.5mm², medium size, markable, insulated, 10 sets of 100
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Quantity per set 10 sets of 100
Cable end size medium
Cable cross section 0.5-0.5 mm²
Type of packing string of bags
Product or component type cable end
Standards DIN 46228-4
Range of product Linergy
Complementary
CAD overall depth 32 mm
CAD overall width 3 mm
Tube diameter 1.3 mm
Additional information with integrated marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour white
AWG gauge AWG 22
CAD overall height 3 mm
Net weight 0.16 kg
Length 14 mm
Cable end type single conductor
Number of cables 1
Bezel size Ø 3.1 mm
Tube length 8 mm
Environment
Ambient air temperature for operation -20-105 °C
Product certifications UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.100 g
Unit Type of Package 2 2
Number of Units in Package 2 1000
Package 2 Height 4.000 cm
Package 2 Width 10.000 cm
Package 2 Length 21.000 cm
Package 2 Weight 139.000 g
Unit Type of Package 3 3
Number of Units in Package 3 20000
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 3.137 kg
