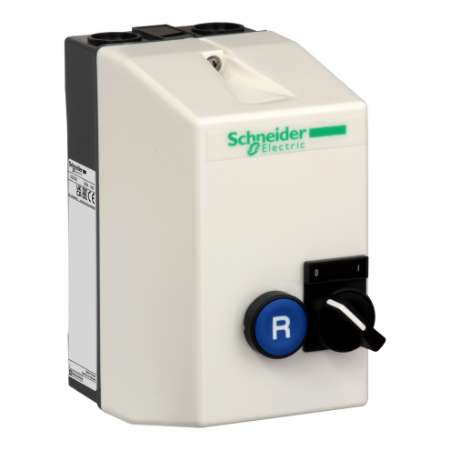

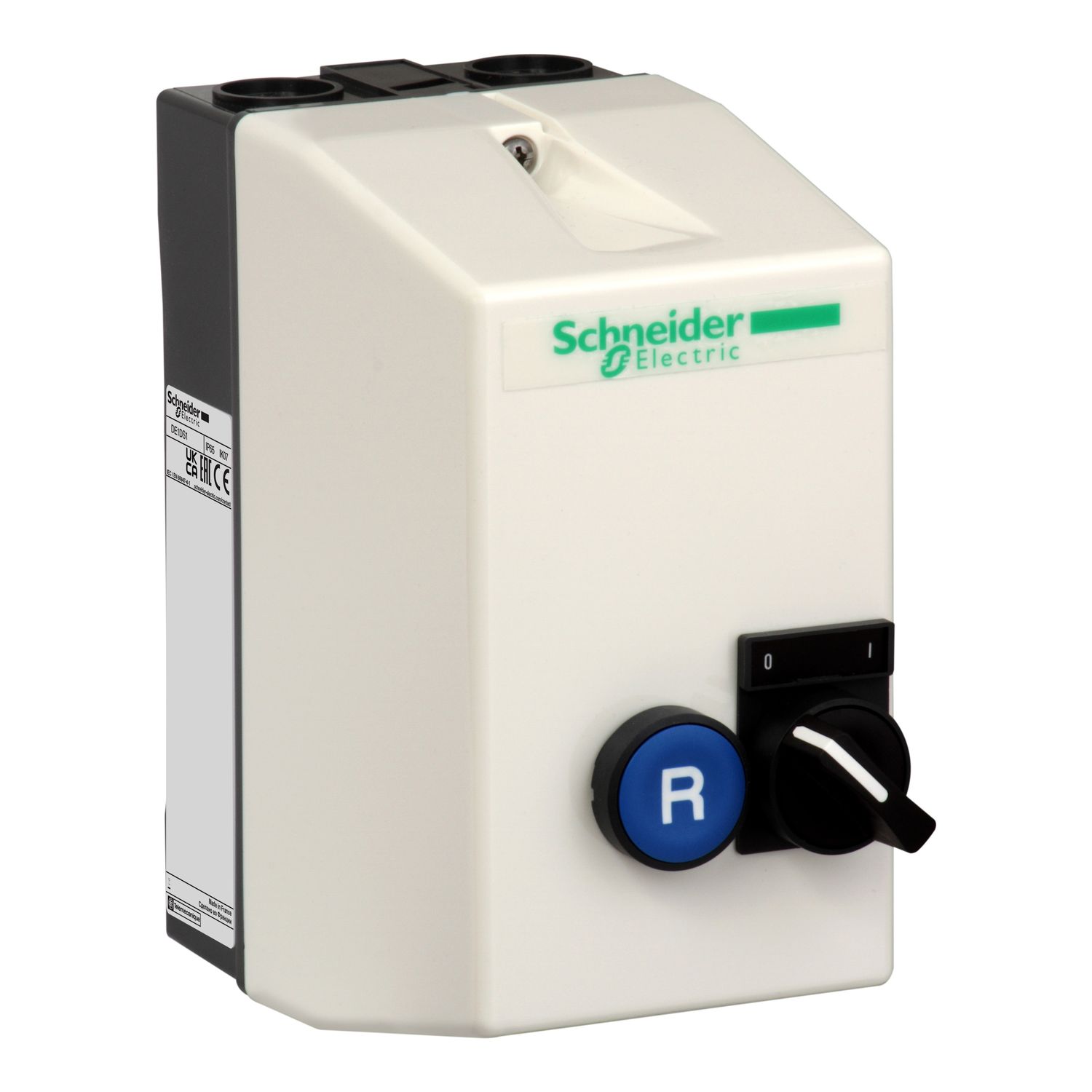

Picture of Empty enclosures for standard starters,TeSys LE,with 1 pushbutton and 1 knob,for LE1D09 and LE1D12
SKU:

DE1DS1A13

Empty enclosures for standard starters,TeSys LE,with 1 pushbutton and 1 knob,for LE1D09 and LE1D12

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Empty enclosures for standard starters,TeSys LE,with 1 pushbutton and 1 knob,for LE1D09 and LE1D12
  • Suitable for harsh environment with high level of waterproof and dustproof
  • Strong mechanical impact resistance
  • Easy to mount and maintain
  • It has a flush head and a switch for safe and convenient use
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Product environmental
Product Page Link
Product Data Sheet
TeSys enclosed starter empty enclosure, for mounting a contactor and thermal overload relay for non-reversing motor applications AC-3 up to 5.5kW@400V. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a blue pushbutton Reset (R), and a 2-position selector switch (O-I), (O) Stop, (I) Manual start. Optimized for the integration of a contactor LC1D09-D12 and a thermal overload relay LRD02-LRD14 depending on the motor power (devices to be ordered separately). Replacement part for TeSys enclosed starters LE1 D09-D12**A13. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name DE1D
Product compatibility LE1D09, LE1D12
Control type selector switch 2 positions start/stop O-I, push-button reset blue R
Device composition thermal overload relay ordered separately, contactor ordered separately
Range TeSys
Material polycarbonate
Product or component type enclosure
Range of product TeSys
Complementary
Depth 165 mm
Width 88 mm
Compatibility code DE1D
Cable entry number 2 Pg 16 bottom, 2 Pg 13 bottom, 2 ISO20 bottom, 2 ISO20 top
Net weight 0.3 kg
Height 166 mm
Environment
IP degree of protection IP65 conforming to IEC 60529
Environmental characteristic standard environment
Ambient air temperature for operation -5-40 °C
IK degree of protection IK07 conforming to IEC 60529
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.0 cm
Package 1 Width 15.5 cm
Package 1 Length 20.5 cm
Package 1 Weight 551.0 g

Related products

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control

GV2ME10
$155.58 INC GST $246.95 INC GST
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control

GV2ME14
$177.06 INC GST $281.05 INC GST
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control

GV2ME16
$187.04 INC GST $296.89 INC GST
View Detail

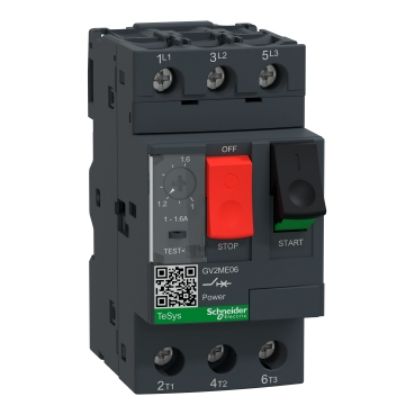

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control

GV2ME06
$155.58 INC GST $246.95 INC GST
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, screw clamp terminals, button control

GV2ME07
$155.58 INC GST $246.95 INC GST
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control

GV2ME08
$155.58 INC GST $246.95 INC GST
View Detail

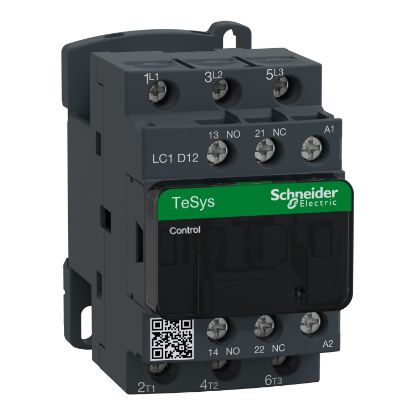

TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 12A, 220VAC 50/60Hz coil
