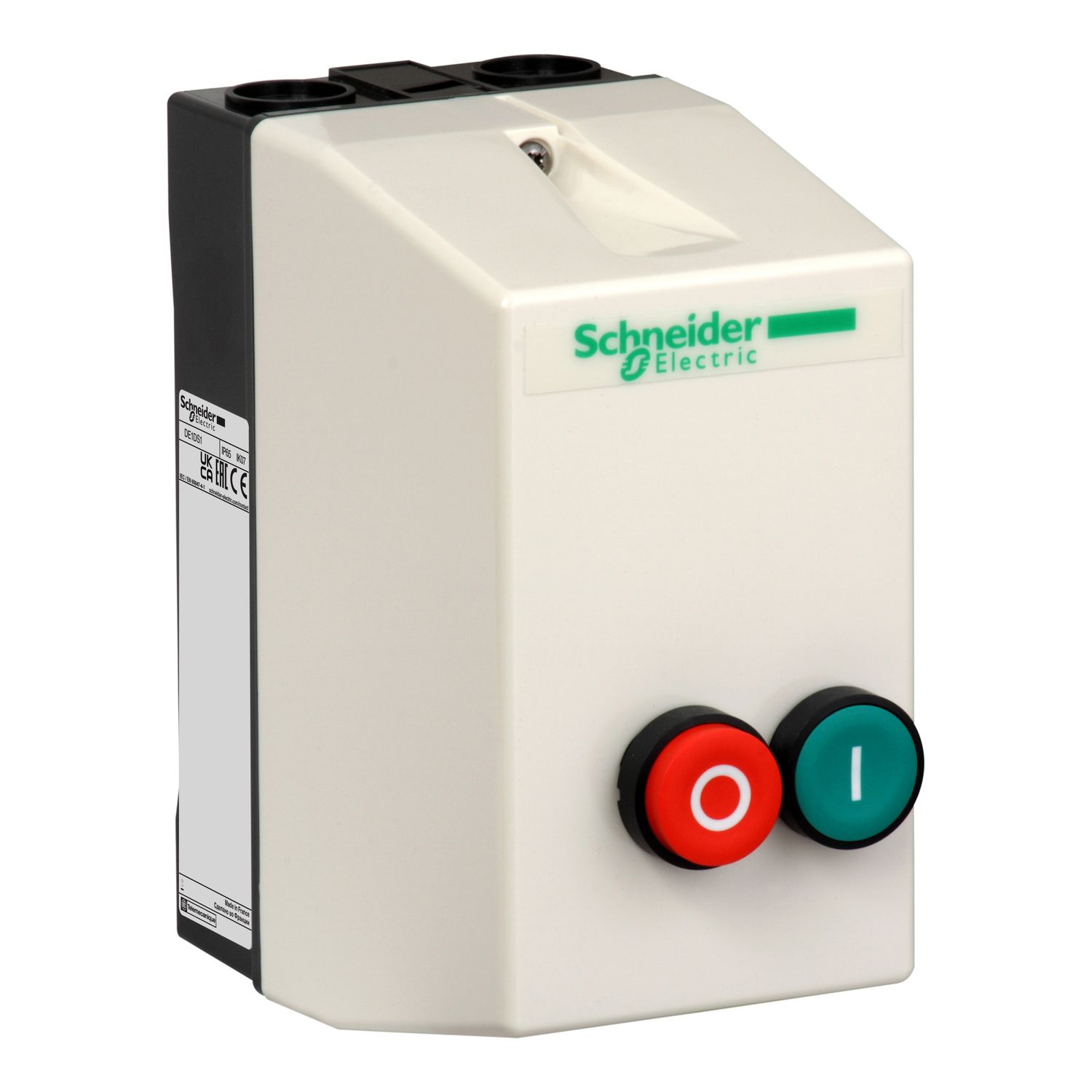

Picture of Empty enclosures for standard starters,TeSys LE,with 2 pushbuttons,for LE1D09 and LE1D12
SKU:

DE1DS1

Empty enclosures for standard starters,TeSys LE,with 2 pushbuttons,for LE1D09 and LE1D12

Old price: $174.90 INC GST
$110.19 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Empty enclosures for standard starters,TeSys LE,with 2 pushbuttons,for LE1D09 and LE1D12
  • Suitable for harsh environment with high level of waterproof and dustproof
  • Strong mechanical impact resistance
  • Easy to mount and maintain
  • Embedded buttons of different colors make it safe and convenient to use
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys enclosed starters, empty enclosure for mounting a contactor and thermal overload relay for non-reversing motor applications AC-3 up to 5.5kW@400V. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a green pushbutton Start (I) and a red pushbutton Stop/Reset (O). Optimized for integration of a contactor LC1D09-D12 and thermal overload relay LRD02-LRD14 depending on the motor power (devices to be ordered separately). Replacement part for TeSys enclosed starters LE1D09xx to LE1D12xx. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom.

Products specifications

Attribute name Attribute value
Main
Device short name DE1D
Product compatibility LE1D12, LE1D09
Control type push-button stop/reset red O, push-button start green I
Device composition thermal overload relay ordered separately, contactor ordered separately
Range TeSys
Material polycarbonate
Product or component type enclosure
Range of product TeSys
Complementary
Depth 150 mm
Width 88 mm
Compatibility code DE1D
Cable entry number 2 Pg 16 bottom, 2 Pg 13 bottom, 2 ISO20 bottom, 2 ISO20 top
Net weight 0.3 kg
Height 166 mm
Environment
IP degree of protection IP65 conforming to IEC 60529
Environmental characteristic standard environment
Ambient air temperature for operation -5-40 °C
IK degree of protection IK07 conforming to IEC 60529
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.500 cm
Package 1 Width 16.500 cm
Package 1 Length 21.500 cm
Package 1 Weight 538.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 28.600 kg

Related products

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control

GV2ME10
$155.58 INC GST $246.95 INC GST
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control

GV2ME14
$177.06 INC GST $281.05 INC GST
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control

GV2ME16
$187.04 INC GST $296.89 INC GST
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control

GV2ME06
$155.58 INC GST $246.95 INC GST
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, screw clamp terminals, button control

GV2ME07
$155.58 INC GST $246.95 INC GST
View Detail

TeSys Deca, Motor circuit breaker, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control

GV2ME08
$155.58 INC GST $246.95 INC GST
View Detail

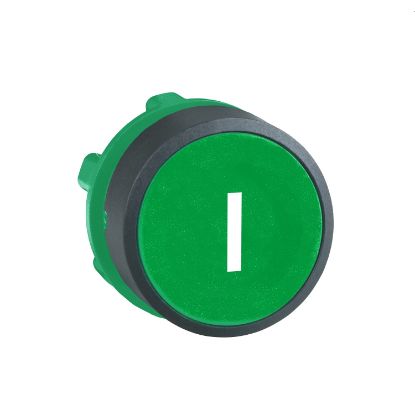

Head for non illuminated push button, Harmony XB5, plastic, flush, green, 22mm, spring return, marked I

ZB5AA331
$20.68 INC GST $26.51 INC GST
View Detail

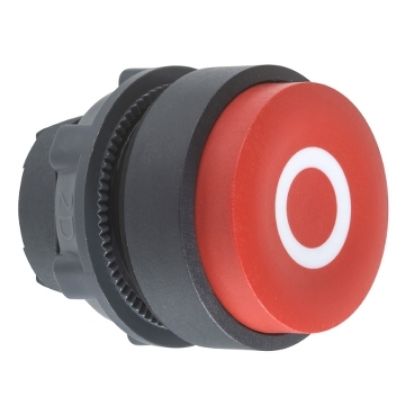

Projecting push button head 40mm, Harmony XB5, plastic, red, 22mm, spring return, marked O
