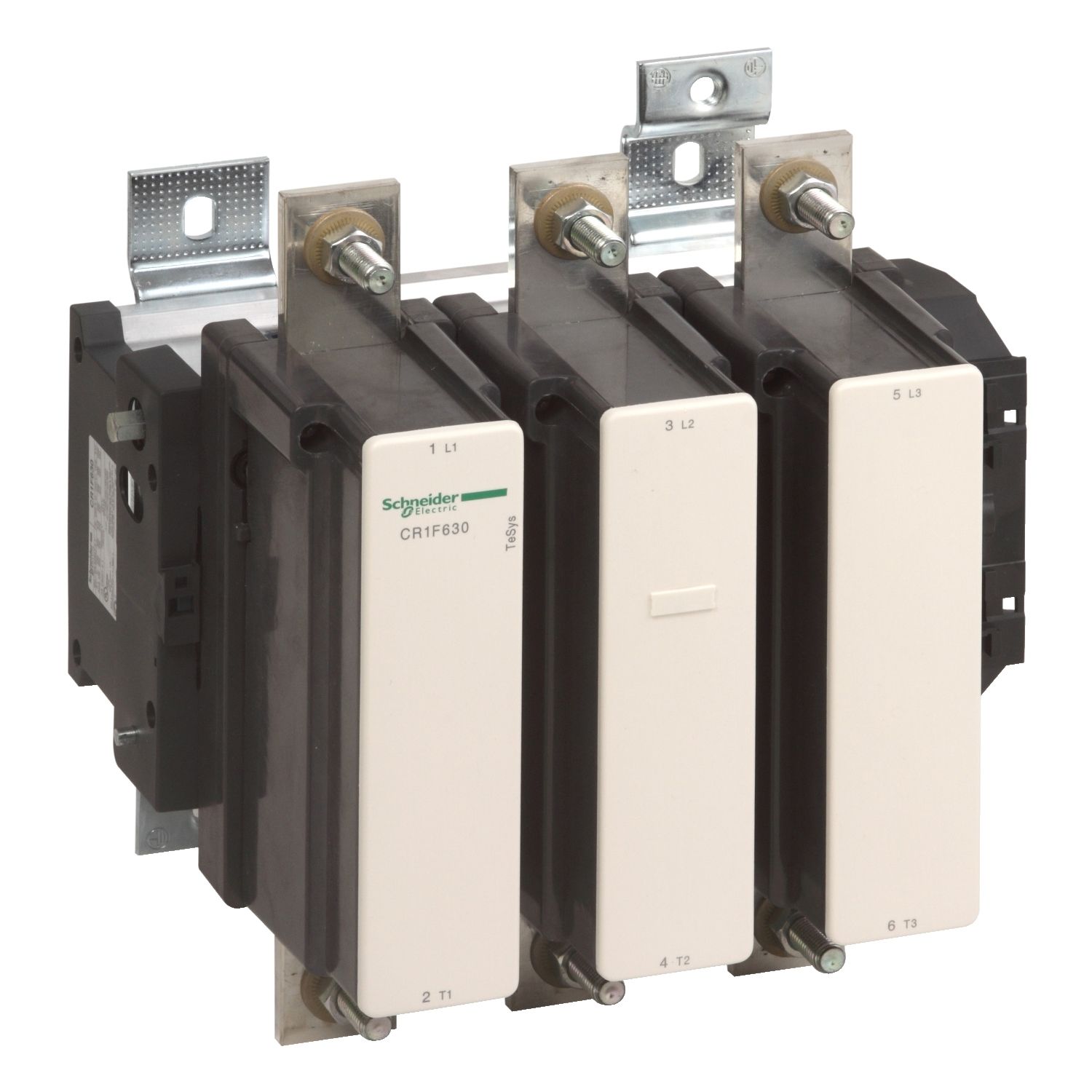

Picture of Magnetic latching contactor,TeSys F,3P(3NO),AC-3 <=440V 630A,220-230V DC coil
SKU:

CR1F630M7

Magnetic latching contactor,TeSys F,3P(3NO),AC-3 <=440V 630A,220-230V DC coil

Old price: $12,716.00 INC GST
$8,011.08 INC GST
Available for Shipping : 21-Jan-2026
Magnetic latching contactor,TeSys F,3P(3NO),AC-3 <=440V 630A,220-230V DC coil
  • Clear and direct state indication from “Closed” to “Open” by current signal through the coil
  • Unaffected by mains interference
  • Utilisation of contactors beyond their breaking capacity
  • Save energy: the coils is applied by pulsed contacts with no impact on closed contactors
  • High reliability: environments tolerance up to 70°C
  • High durability: 120 cycles/hour for operating rate
  • Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
  • Green Premium product
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 21-Jan-2026
Declaration of conformity
Instruction sheet
Catalog
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
TeSys F magnetic latching contactor, 3 poles (3NO), 630A/1000V AC-3, for motor applications up to 335 kW@400V. It provides a double coil 220-230V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Icw] rated short-time withstand current 1600 A 40 °C - 10 min, 2200 A 40 °C - 3 min, 3400 A 40 °C - 1 min, 4400 A 40 °C - 30 s, 5.05 kA 40 °C - 10 s, 5.05 kA 40 °C - 5 s, 5.05 kA 40 °C - 1 s
Device short name CR1F
Device application control
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to BS 775, 1000 V conforming to IEC 60947-4, 1000 V conforming to IEC 60158-1
Motor power kW 335 kW at 400 V AC 50/60 Hz (AC-4)
Operating time 50...100 ms unlatching, 40...80 ms latching
Poles description 3P
Mechanical durability 1 Mcycles
Tightening torque 58 N.m
Maximum operating rate 120 cyc/h 40 °C
[Ie] rated operational current 560 A (at <40 °C) at <= 440 V AC AC-4, 1000 A (at <40 °C) at <= 440 V AC AC-1, 630 A (at <40 °C) at <= 440 V AC AC-3
Utilisation category AC-1, AC-3, AC-4
Pole contact composition 3 NO
Range TeSys
Connections - terminals power circuit: bolted connection, bars 2 cable(s) - busbar cross section: 60 x 5 mm
Associated fuse rating 1000 A gG at <= 440 V, 1000 A BS88 at <= 440 V, 630 A aM at <= 440 V
Product name TeSys F
Irms rated making capacity 6740 A
Product or component type magnetic latching contactor
Rated breaking capacity 4600 A at 660/690 V, 3200 A at 1000 V, 5400 A at 500 V, 6300 A at 220...440 V
Contactor application motor control, resistive load
[Uc] control circuit voltage 220...230 V DC, 220...230 V AC 50...400 Hz
Control circuit type DC standard, AC at 50...400 Hz
Standards CSA C22.2 No 60947-4-1, UL 60947-4-1, JIS C8201-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1
Range of product TeSys F
Average impedance 0.12 mOhm - Ith 1000 A 50 Hz
Power dissipation per pole 120 W AC-1, 48 W AC-3
[Ue] rated operational voltage 1000 V AC 25...200 Hz
Product certifications UKCA, CE, EAC, CSA, UL, CB Scheme
Complementary
Compatibility code CR1F
Average coil consumption 2300 VA DC latching, 11 VA DC unlatching, 2300 VA AC 50...400 Hz latching, 11 VA AC 50...400 Hz unlatching
Control circuit voltage limits unlatching: 0.85...1.1 Uc, latching: 0.85...1.1 Uc
Environment
Depth 255 mm
Width 309 mm
Operating altitude 3000 m without derating
Protective treatment TC
Ambient air temperature for storage -60-80 °C
Net weight 18.6 kg
Ambient air temperature for operation -15-70 °C
Height 304 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 29.500 cm
Package 1 Width 36.500 cm
Package 1 Length 45.500 cm
Package 1 Weight 17.461 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 75.000 cm
Package 2 Width 80.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 42.922 kg

Related products

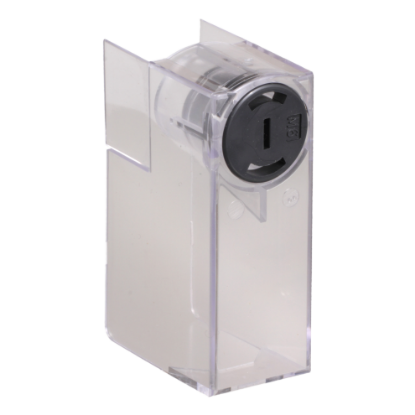

Picture of TeSys F - terminal shroud for contactor 2P/3P

TeSys F - terminal shroud for contactor 2P/3P

LA9F704
Call for pricing
View Detail
