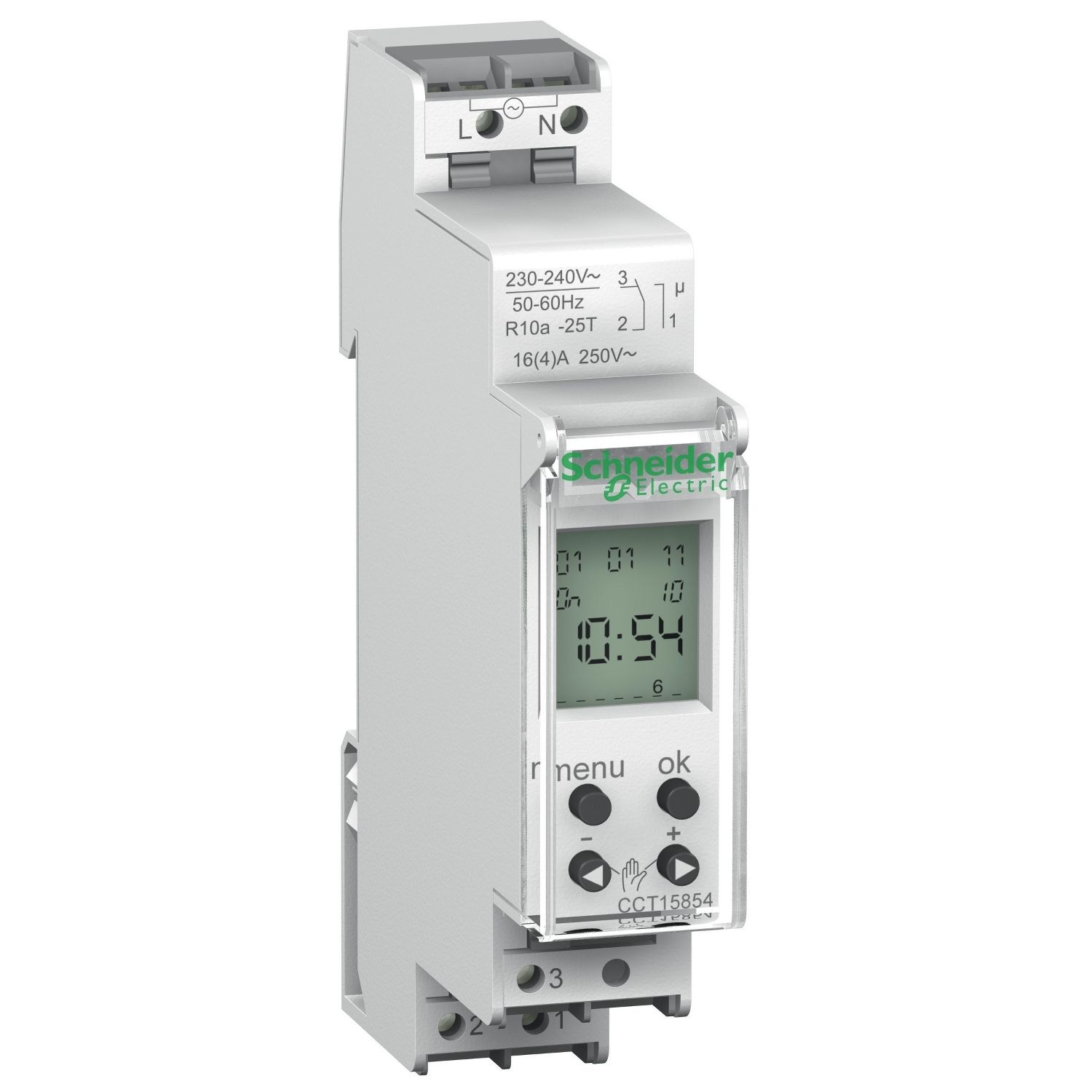

Picture of IH IHP ITA, 1C Digital Time Switch, 24 Hours + 7 Days
SKU:

CCT15854

IH IHP ITA, 1C Digital Time Switch, 24 Hours + 7 Days

Old price: $264.00 INC GST
$156.00 INC GST
Available for Shipping : 16-Dec-2025
Product Selector
IH IHP ITA, 1C Digital Time Switch, 24 Hours + 7 Days
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Brochure
Declaration of conformity
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
IHP digital time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 1 channel output

Products specifications

Attribute name Attribute value
Main
Device short name IHP
Device application building
Provided equipment memory key, programming kit
Number of channels 1
Battery type lithium
Range Acti9
User language Spanish, German, Italian, French, English, Portuguese
Range of product Acti9
Product name Acti9 IHP
Product or component type programmable digital time switch
Colour tint white (RAL 9003)
Complementary
Type of setting absence for holidays function, PIN code
Display type LCD
Compatibility code IHP
Battery life 10 year(s)
Function available automatic winter/summer time changeover, operating hours counter
Maximum number of switchings 56
Backup time 10 years time and program saving
Accuracy +/- 0.5 s/day 25 °C
Maximum switching current 4 A - 250 V AC pf = 0.6 , 16 A - 250 V AC pf = 1
Height 90 mm
Minimum interval duration 1 min
Depth 66 mm
Market segment small commercial, residential
Width 18 mm
Absence for holidays yes
Updated by none
Function none
Mounting support DIN rail
Connections - terminals 2 x 0.5-2.5 mm² screwless terminals
Net weight 0.09 kg
9 mm pitches 2
Time changeover automatic
[Ue] rated operational voltage 230 V AC - 15...10 % at 50/60 Hz
Cycle duration 24 hours + 7 days
Environment
IP degree of protection IP20 B
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.300 cm
Package 1 Width 8.300 cm
Package 1 Length 10.600 cm
Package 1 Weight 125.000 g
Unit Type of Package 2 2
Number of Units in Package 2 86
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.366 kg
