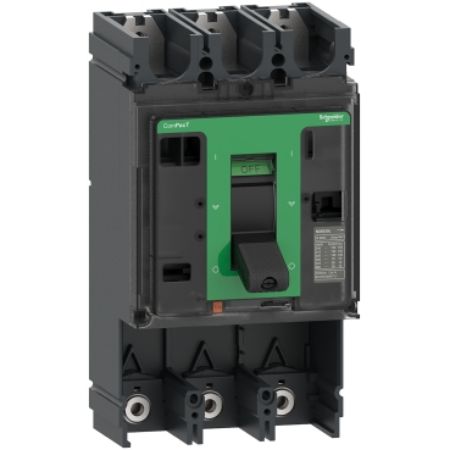

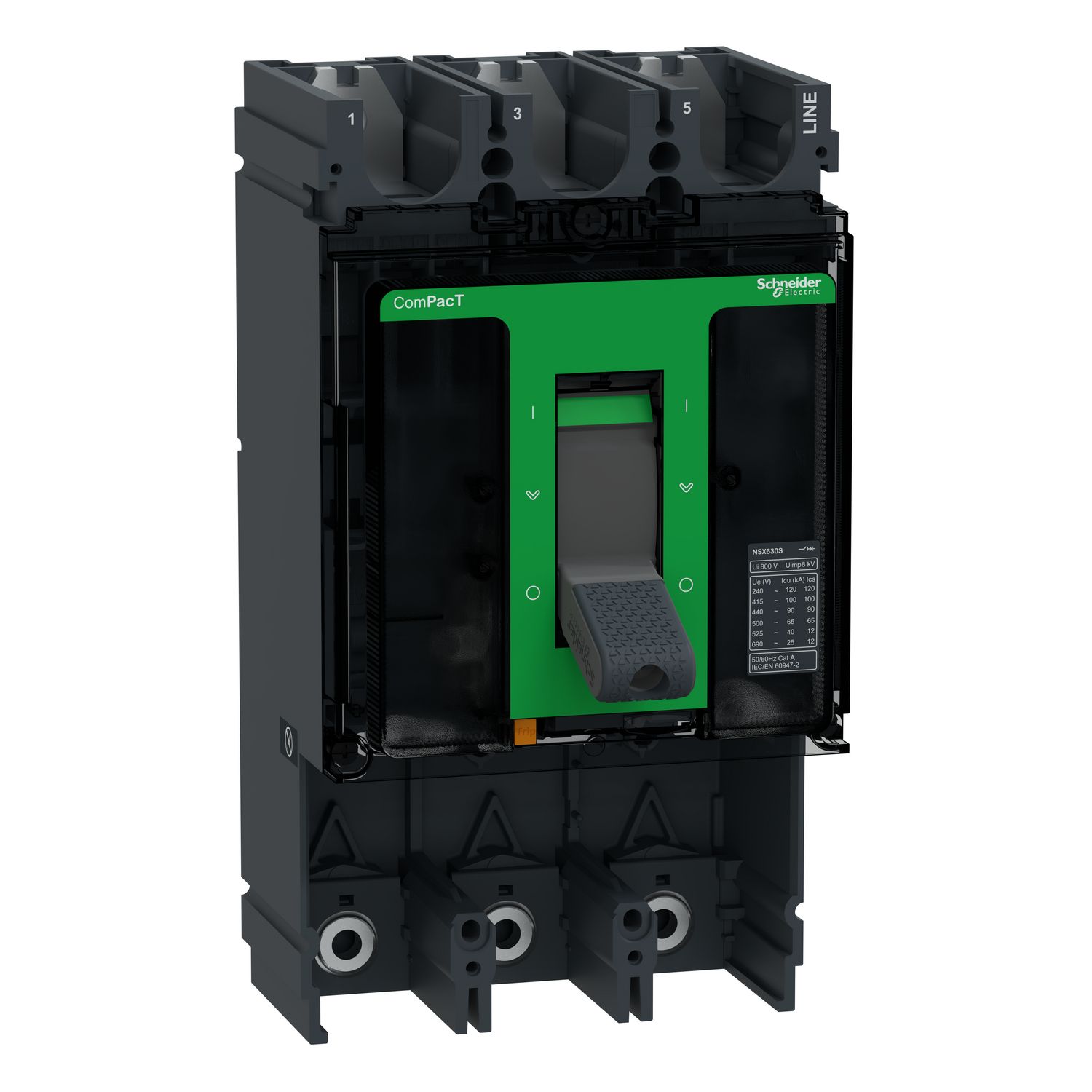

Picture of Circuit breaker basic frame, ComPacT NSX630S, 100kA/415VAC, 3 poles, 630A frame rating, without trip unit
SKU:

C63S3

Circuit breaker basic frame, ComPacT NSX630S, 100kA/415VAC, 3 poles, 630A frame rating, without trip unit

Old price: $2,818.20 INC GST
$2,305.29 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
Circuit breaker basic frame, ComPacT NSX630S, 100kA/415VAC, 3 poles, 630A frame rating, without trip unit
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Circularity Profile
Catalog
Instruction sheet
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
This is a 3 poles basic frame for ComPacT NSX630S. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 100kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 140mm x 255mm x 110mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630S is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Suitability for isolation yes conforming to EN/IEC 60947-2
Utilisation category category A
Network type AC
Device short name NSX630S
Breaking capacity code S 100 kA 415 V AC
Breaking capacity 25 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 90 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 120 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode fixed
Control type toggle
Range ComPacT new generation
Range of product ComPacT NSX400...630 new generation
Poles description 3P
Product name ComPacT NSX new generation
Product or component type basic frame
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current 630 A at 40 °C
Network frequency 50/60 Hz
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Compatibility code NSX630
Electrical durability 8000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 4000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2, 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2
Downside connection front
Height 255 mm
[Ics] rated service breaking capacity 12 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 12 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 90 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 120 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 15000 cycles conforming to IEC 60947-2
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
Protection type without protection
Upside connection front
Connection pitch 45 mm
Depth 110 mm
Width 140 mm
Mounting support backplate
Environment
Ambient air temperature for storage -50-85 °C
Product certifications UL, CSA
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Standards UL 508, EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.500 cm
Package 1 Width 15.500 cm
Package 1 Length 30.500 cm
Package 1 Weight 4.636 kg
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 182.000 kg

Related products

Picture of Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

29450
$130.43 INC GST $159.06 INC GST
View Detail
Picture of ComPacT, Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

ComPacT, Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

LV432591
$83.23 INC GST $101.75 INC GST
View Detail
Picture of ComPacT, Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

ComPacT, Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

LV432593
$91.96 INC GST $112.42 INC GST
View Detail
Picture of Interphase barriers, ComPacT NSX 400/630, set of 6 parts

Interphase barriers, ComPacT NSX 400/630, set of 6 parts

LV432570
$68.29 INC GST $83.49 INC GST
View Detail

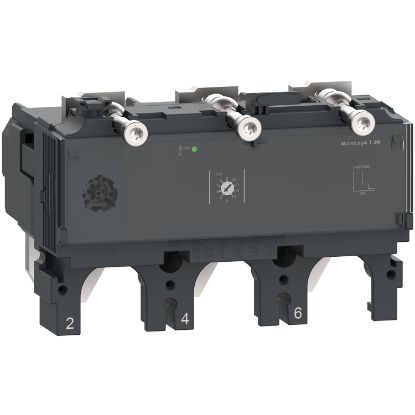

Picture of Trip unit MicroLogic 1.3M, ComPacT NSX630, 3 poles, electronic magnetic protection, motor protection, 500A

Trip unit MicroLogic 1.3M, ComPacT NSX630, 3 poles, electronic magnetic protection, motor protection, 500A

C6331M500
$1,376.69 INC GST $1,683.00 INC GST
View Detail

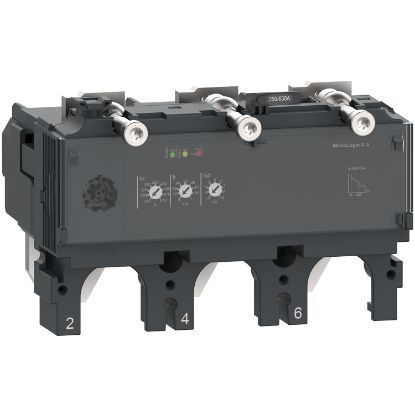

Picture of Trip unit MicroLogic 2.3, ComPacT NSX630, 3 poles, electronic basic protections, 630A rating

Trip unit MicroLogic 2.3, ComPacT NSX630, 3 poles, electronic basic protections, 630A rating

C6332D630
$1,115.75 INC GST $1,364.00 INC GST
View Detail

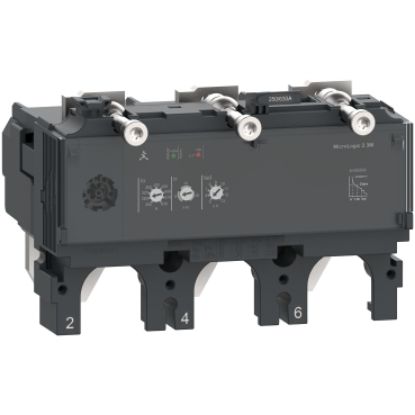

Picture of Trip unit MicroLogic 2.3M, ComPacT NSX630, 3 poles, electronic basic protections, motor protection, 500A rating
