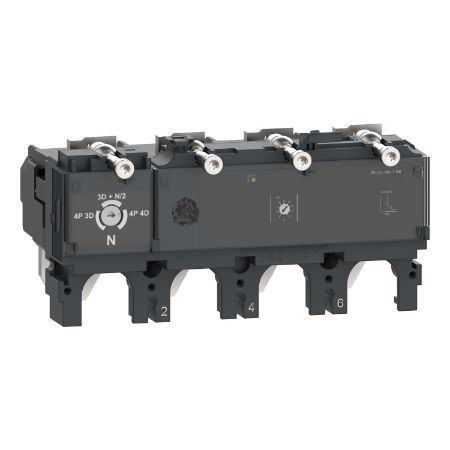

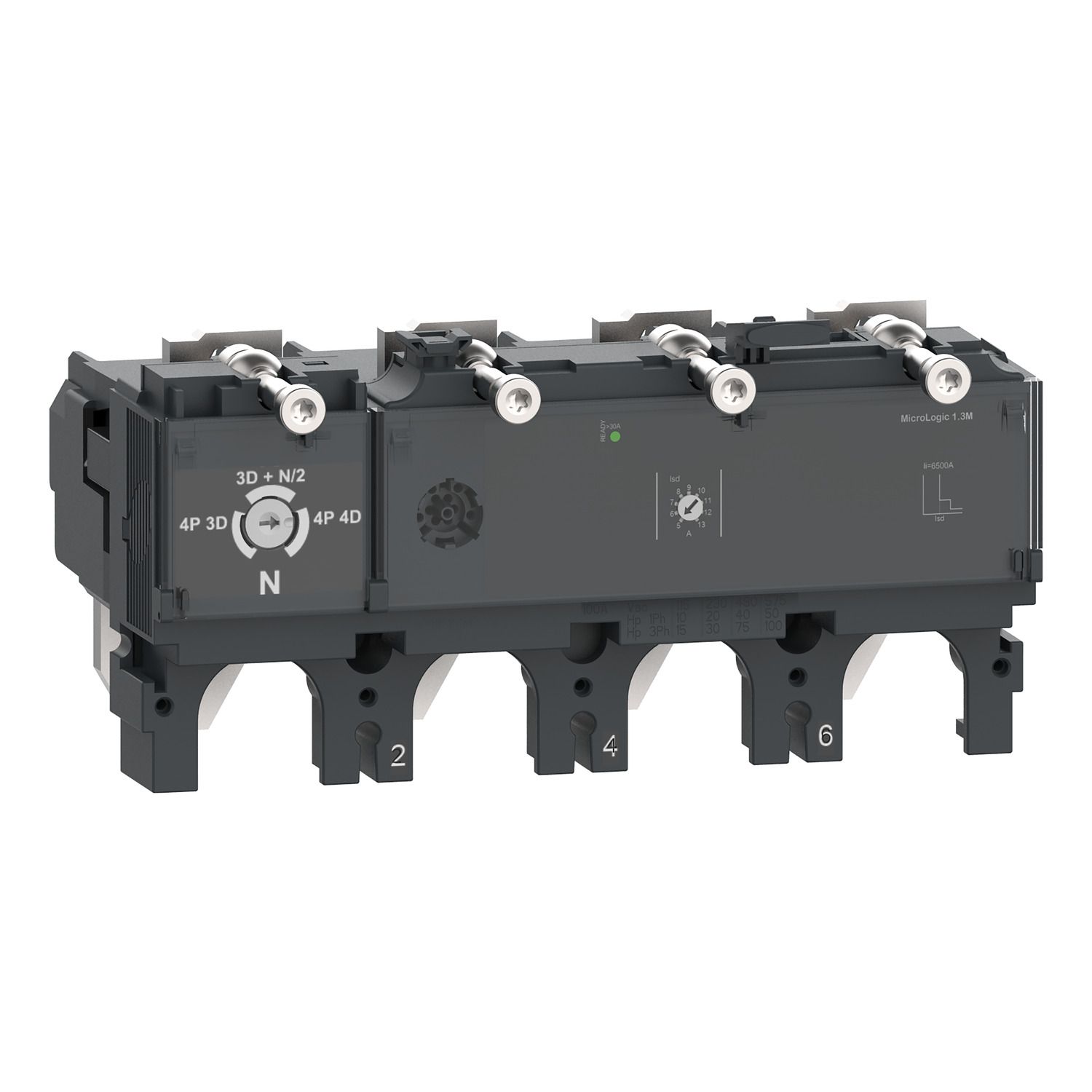

Picture of Trip unit MicroLogic 1.3M, ComPacT NSX630, 4 poles 3D, electronic magnetic protection, motor protection, 500A
SKU:

C6341M500

Trip unit MicroLogic 1.3M, ComPacT NSX630, 4 poles 3D, electronic magnetic protection, motor protection, 500A

Old price: $1,889.80 INC GST
$1,545.86 INC GST
Available for Shipping : 22-Jan-2026
Trip unit MicroLogic 1.3M, ComPacT NSX630, 4 poles 3D, electronic magnetic protection, motor protection, 500A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 22-Jan-2026
Catalog
Circularity Profile
Instruction sheet
Environmental Disclosure
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This MicroLogic 1.3 M is a 4 poles 3d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 500A rating electronic trip unit is an optimum choice for motor protection applications. It provides an adjustable short-time protection and a fixed instantaneous protection against short-circuits. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application motor
Range compatibility ComPacT new generation NSX630
Mounting mode fixed
Range ComPacT new generation
Protection type I : for instantaneous short-circuit protection, S : for short time short-circuit protection with fixed delay
Protected poles description 3D
Range of product ComPacT NSX400...630 new generation
Trip unit name MicroLogic 1.3 M
Trip unit technology electronic
Neutral position left
Poles description 4P
Product or component type trip unit
Network type AC
Trip unit protection functions SI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 500 A at 65 °C
Network frequency 50/60 Hz
Complementary
Short-time pick-up adjustment type Isd adjustable 9 settings
Neutral protection setting no protection (3D)
Instantaneous pick-up adjustment range 6500 A
Short-time delay adjustment type fixed
Zone selective interlocking ZSI without
Earth-leakage protection without
[Isd] short-time pick-up adjustment range 6500 A, 6000 A, 5500 A, 5000 A, 4500 A, 4000 A, 3500 A, 3000 A, 2500 A
Local signalling flashing LED (green) for ready to operate
Instantaneous pick-up adjustment type Ii fixed
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.0 cm
Package 1 Width 17.5 cm
Package 1 Length 21.5 cm
Package 1 Weight 1.779 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.562 kg
