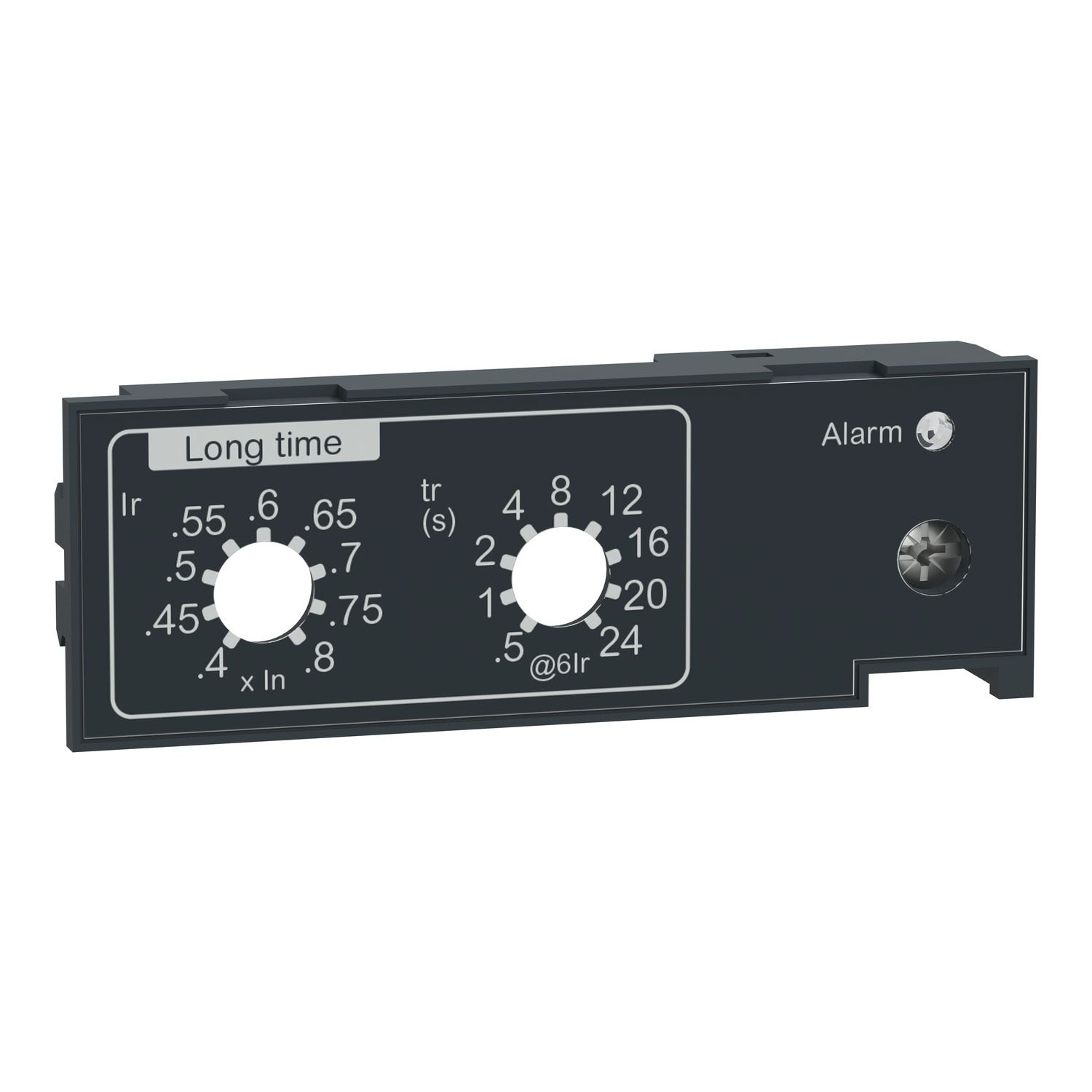

Picture of Long time rating plug, ComPacT NS, IEC, MicroLogic control units, low setting (Ir = In x 0.4 to 0.8)
SKU:

C33543

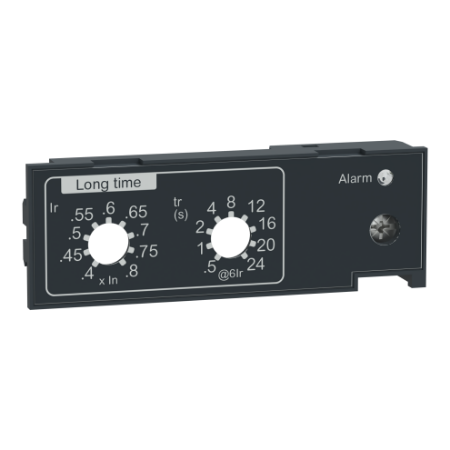

Long time rating plug, ComPacT NS, IEC, MicroLogic control units, low setting (Ir = In x 0.4 to 0.8)

$160.40 EXCL GST
Available for Shipping : 19-Mar-2025
Long time rating plug, ComPacT NS, IEC, MicroLogic control units, low setting (Ir = In x 0.4 to 0.8)
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Product Page Link
Product Data Sheet
This component is an interchangeable plug for MicroLogic control units. It is used to limit the long-time threshold setting range for higher accuracy (pick-up and delay). The long-time pickup switch sets the maximum current level (Ir) the circuit breaker will carry continuous within the range 0.4 to 0.8 x In. There are 9 possible settings (0.4 , 0.45 , 0.5 , 0.55 , 0,6 , 0.65 , 0.7 , 0.75 , 0.8). The long-time delay switch sets the length of time that the circuit breaker will carry a sustained overload before tripping. Delay bands are labelled in seconds of overcurrent at six times the ampere rating (6 x Ir). ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with green packaging and green partnerships.

Products specifications

Attribute name Attribute value
Main
Device application control
Range ComPacT new generation
Product or component type long time rating plug
Range compatibility ComPacT new generation ComPacT NS new generation circuit breaker
Range of product ComPacT NS1600b...3200 new generation, ComPacT NS630b...1600 new generation
Trip unit name MicroLogic
Complementary
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.4...0.8 x In
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 3.600 cm
Package 1 Length 8.300 cm
Package 1 Weight 11.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 8.900 cm
Package 2 Width 13.100 cm
Package 2 Length 18.500 cm
Package 2 Weight 277.000 g
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 3.716 kg
