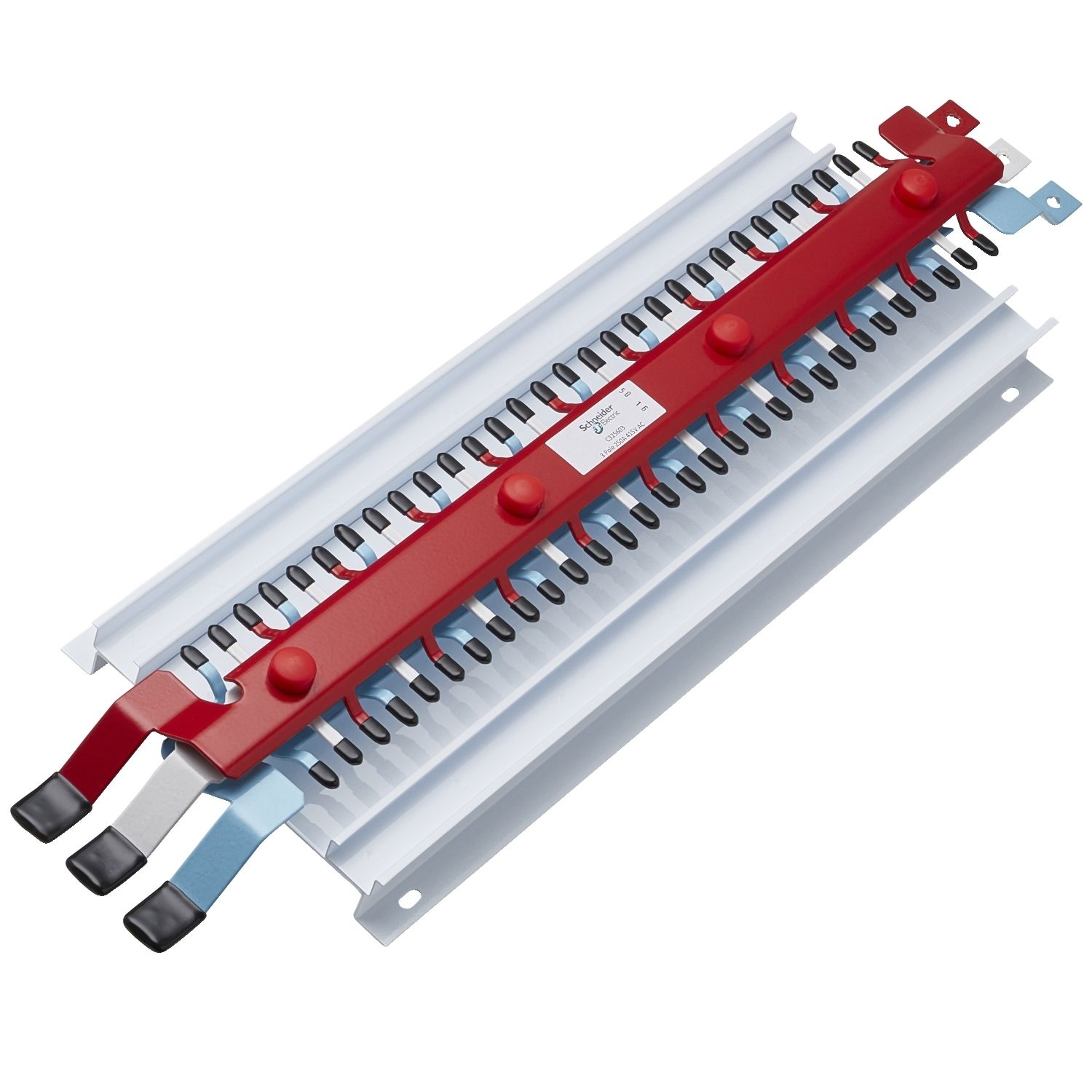

Picture of Acti9, MSC Chassis 3PH, 250A, 18mm for iC60 MCB & RCBO, 60 poles, Dual Feed
SKU:

C325603

Acti9, MSC Chassis 3PH, 250A, 18mm for iC60 MCB & RCBO, 60 poles, Dual Feed

Old price: $823.90 INC GST
$486.84 INC GST
Available for Shipping : 18-Dec-2025
Acti9, MSC Chassis 3PH, 250A, 18mm for iC60 MCB & RCBO, 60 poles, Dual Feed
  • A three phase chassis assembly compliant to AS/NZS 61439 local standard and wiring regulations
  • Chassis fully compliant with Acti9 Circuit protection devices such as MCB, RCBOs
  • Type tested chassis system with best in class quality and performance
  • The MSC Chassis is compatible with Acti9 captive padlocking device (SAUA9PLDF)
  • The chassis can be easily adapted into panel builder distribution boards (dual feed options)
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Dec-2025
Environmental Disclosure
Product Page Link
Product Data Sheet
This Acti9 product is a MSC chassis and can be mounted on Acti9 Isobar B Distribution boards. The In rated current is 250A and the rated voltage is up to 415VAC with an operating frequency of 50Hz. It has 1 way of incomer (3P). The number of outgoing ways is 60 with a pitch of 18mm. This chassis has dual feeding. The MSC chassis system allows for the fitting of all Acti9 circuit protection. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage of 6kV. The Icw rated short-time withstand current is 25kA at 0.1s. The dimensions are (L) 542mm x (W) 215mm. This product complies with AS/NZS 61439 standard.

Products specifications

Attribute name Attribute value
Main
Device short name MSC 18
Device application distribution
Range Acti9
Product or component type chassis
Complementary
Width 215 mm
[In] rated current 250 A
Rated voltage 415 V AC 50 Hz
Number of poles 60 x 18 mm
Short-circuit withstand 25 kA 0.1 s
Length 542 mm
[Ui] rated insulation voltage 500 V
Range compatibility Acti9 Acti9 Isobar B distribution board
Number of ways 60 ways (outgoer), 1 way (incomer) - 3P
[Uimp] rated impulse withstand voltage 6 kV
[Icw] rated short-time withstand current 25 kA
Environment
Standards AS/NZS 61439
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
