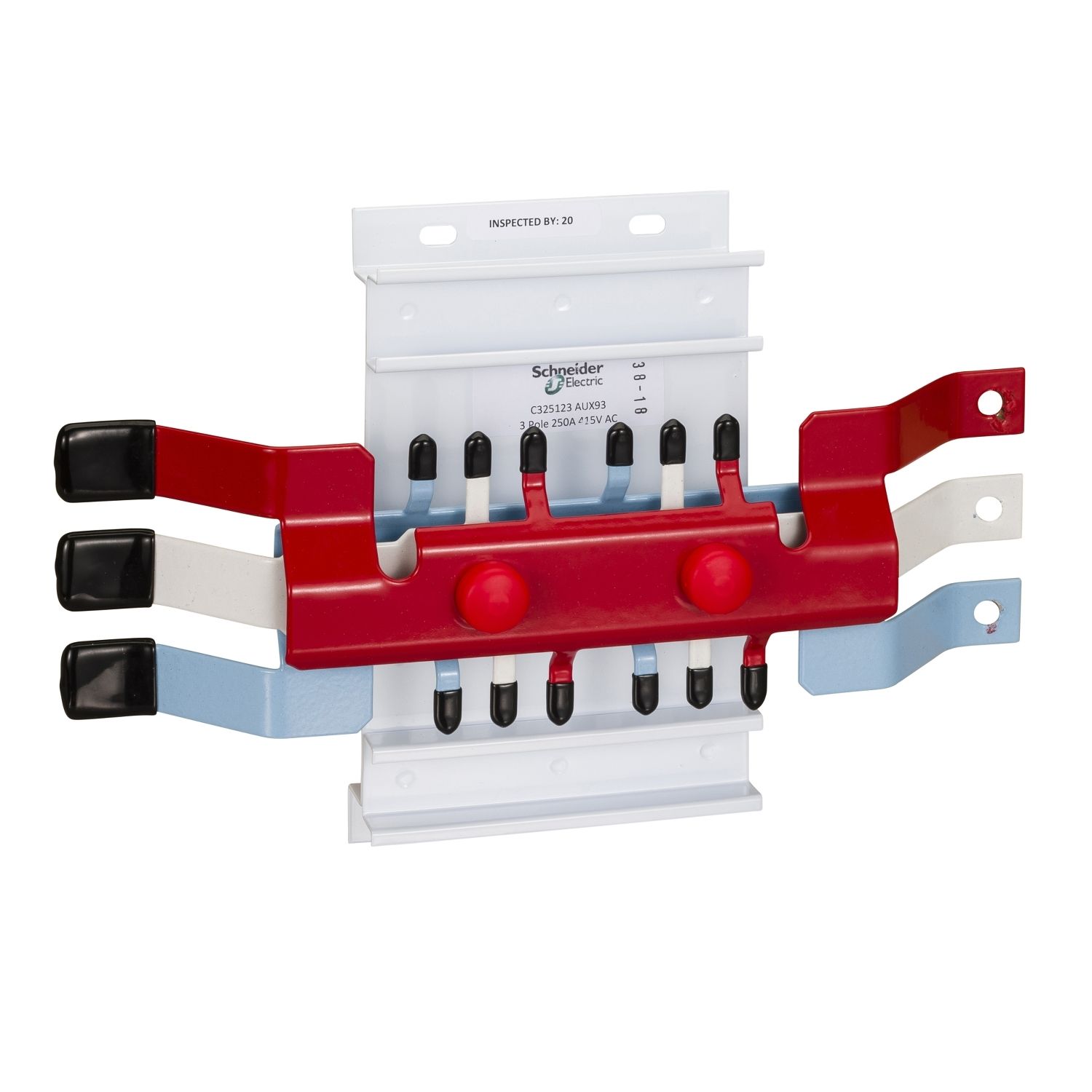

MSC Chassis, Acti9, 3PH, 250A, iC60 3P MCB with 9mm Auxiliary, 12 poles, Dual Feed

The MSC chassis system allows for the fitting of all Acti 9 circuit protection.

Suits MCBs up to 125 A

Highly conductive, 99,95% pure copper (alloy 110)

Each busbar is colour coded of red, white, and blue for phase identification

Easily removable tee off boots

Manufacturer: Schneider Electric

SKU: C325123AUX93

GTIN: 3606482231092

Available for Shipping: 08-Oct-2026

Environmental Disclosure

Full Description

This Acti9 MSC 3-phase chassis product is a pan assembly which can be installed in Acti9 Isobar B distribution board. The chassis features 1 incomer way (3-pole) and 12 outgoing ways. The chassis is rated for 250A and can[Icw] rated short-time withstand current of 25 kA. supports dual feed configurations for flexible load management.

Old price: $827.64 inc GST

Price: $489.05 inc GST

Qty:

Available for Shipping: 08-Oct-2026
