Picture of Trip unit TM200D, ComPacT NSX250, 3 poles, thermal magnetic protections, 200A rating
SKU:

C253TM200

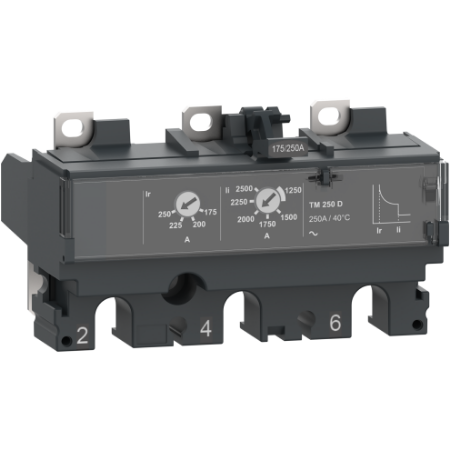

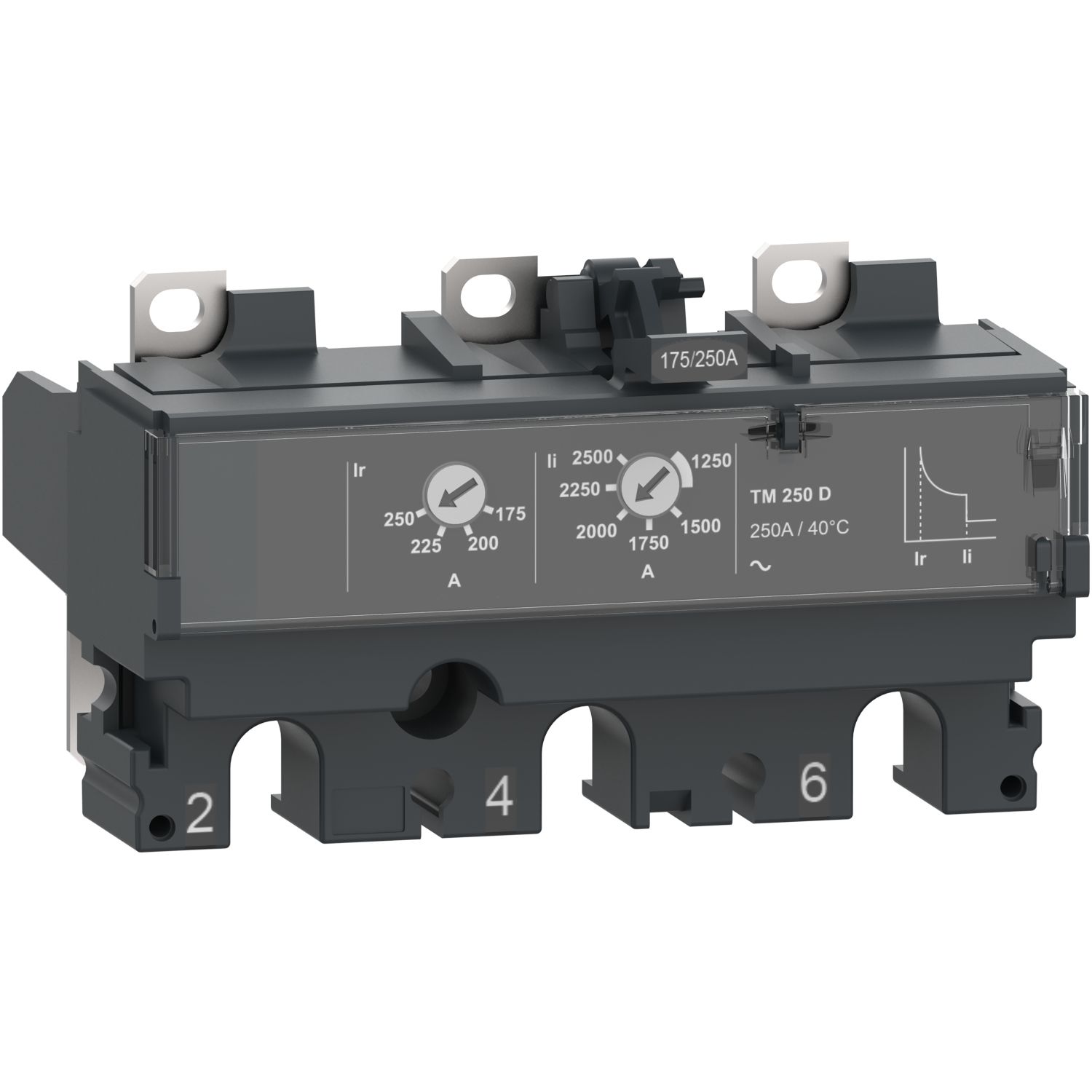

Trip unit TM200D, ComPacT NSX250, 3 poles, thermal magnetic protections, 200A rating

Old price: $719.40 INC GST
$588.47 INC GST
Available for Shipping : 05-Jan-2026
Trip unit TM200D, ComPacT NSX250, 3 poles, thermal magnetic protections, 200A rating
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Catalog
Environmental Disclosure
Circularity Profile
User guide
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This TM200D is a 3 poles 3d thermal-magnetic trip unit used on ComPacT NSX 250 circuit breakers. This 200A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range compatibility ComPacT new generation NSX250
Trip unit technology thermal-magnetic
Network type AC
Mounting mode fixed
Range ComPacT new generation
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Protected poles description 3D
Range of product ComPacT NSX100...250 new generation
Trip unit name TM-D
Poles description 3P
Product or component type trip unit
Trip unit protection functions LI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 200 A at 40 °C
Network frequency 50/60 Hz
Complementary
Long time pick-up adjustment type Ir adjustable
Earth-leakage protection without
[tr] long-time delay adjustment range 15-15 s at 6 x Ir, 120-400 s at 1.5 x In
Long time delay adjustment type fixed
Long time pick-up adjustment range 0.7...1 x In
Instantaneous pick-up adjustment range 5...10 x In
Instantaneous pick-up adjustment type Ii adjustable
Environment
Ambient air temperature for storage -50-85 °C
Electrical shock protection class class II
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.600 cm
Package 1 Width 10.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 454.600 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 13.129 kg
