Picture of Trip unit MicroLogic 6.2EM, ComPacT NSX160/250, 3 poles, basic and ground fault protections, motor, energy meter, 150A
SKU:

C1636M150

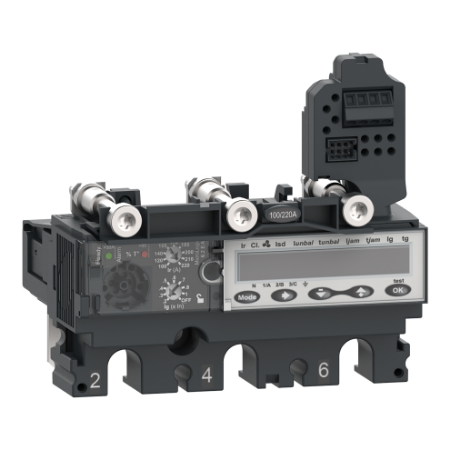

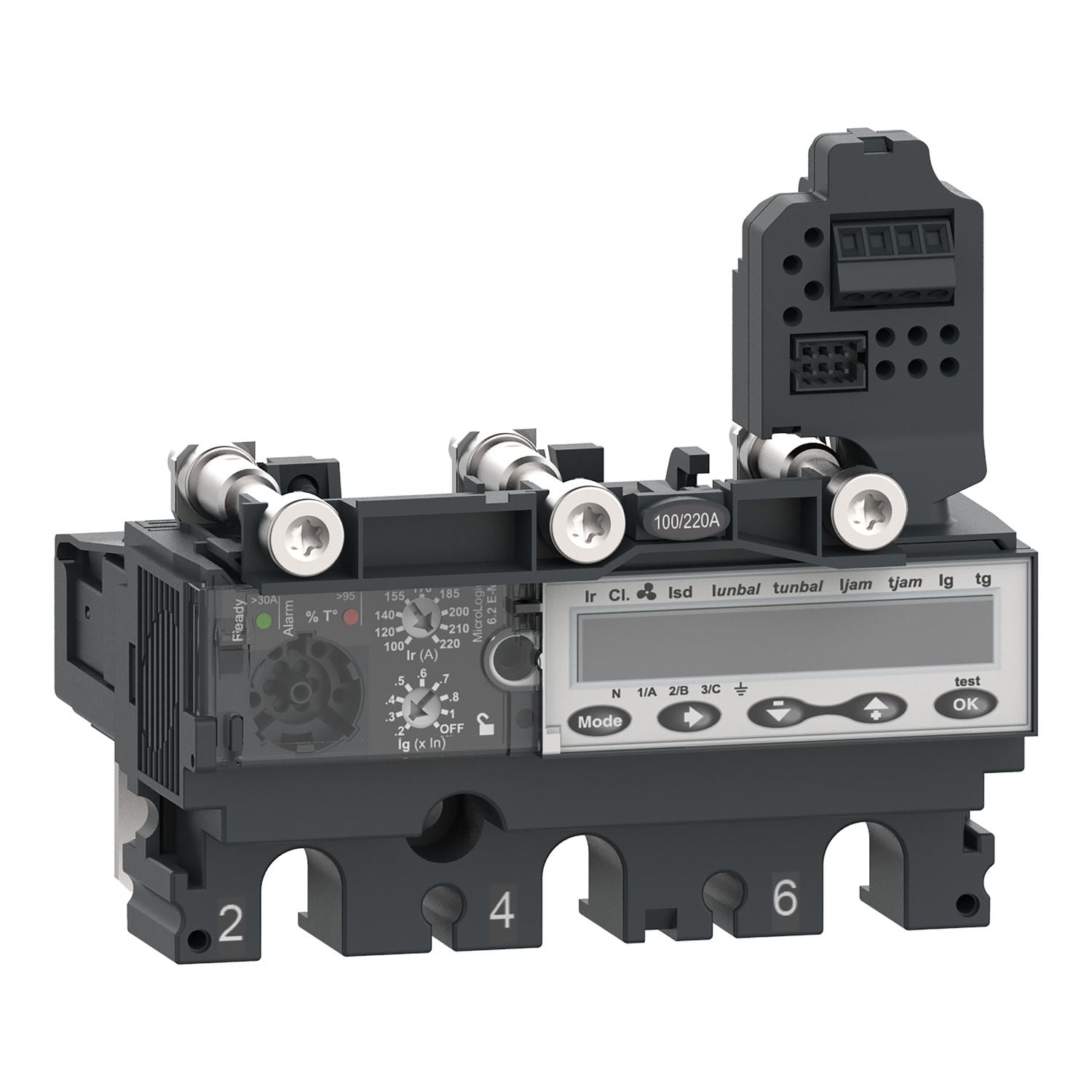

Trip unit MicroLogic 6.2EM, ComPacT NSX160/250, 3 poles, basic and ground fault protections, motor, energy meter, 150A

Old price: $3,174.60 INC GST
$2,596.82 INC GST
Available for Shipping : 20-Jan-2026
Trip unit MicroLogic 6.2EM, ComPacT NSX160/250, 3 poles, basic and ground fault protections, motor, energy meter, 150A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Catalog
Instruction sheet
Environmental Disclosure
Circularity Profile
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This MicroLogic 6.2 E-M (Energy) is a 3 poles 3d electronic trip unit used on ComPacT NSX 160/250 circuit breakers. This 150A rating electronic trip unit is an optimum choice for motor protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. It offers a phase unbalance or phase loss protection, and an additional and adjustable ground fault protection. MicroLogic 6.2 E-M indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 6.2 E-M is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application motor
Range compatibility ComPacT new generation NSX250, ComPacT new generation NSX160
Trip unit technology electronic
Network type AC
Mounting mode fixed
Range ComPacT new generation
Protection type G : for ground fault protection, I : for instantaneous short-circuit protection, S : for short time short-circuit protection with fixed delay, L : for overload protection (long time)
Protected poles description 3D
Range of product ComPacT NSX100...250 new generation
Trip unit name MicroLogic 6.2 E-M
Poles description 3P
Product or component type trip unit
Trip unit protection functions LSIG
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 150 A at 65 °C
Network frequency 50/60 Hz
Complementary
Short-time pick-up adjustment type Isd adjustable 9 settings
Display type LCD display
Long time pick-up adjustment type Ir adjustable 9 settings
Zone selective interlocking ZSI with
Communication of data maximeters/minimeters, power quality, demand current and power, maintenance indicators, instantaneous and demand values, time-stamped histories and event tables, protection and alarm settings, energy metering
Earth-leakage protection without
Thermal memory 20 minutes before and after tripping
[Ig] ground-fault pick-up adjustment range Ig enable on/off, 0.2...1 x In for In = 50 A
Motor tripping class 20, 5, 30, 10
[tr] long-time delay adjustment range 30-30 s at 7.2 x Ir for trip class 30, 38-38 s at 6 x Ir for trip class 30, 720-720 s at 1.5 x Ir for trip class 30, 20-20 s at 7.2 x Ir for trip class 20, 26-26 s at 6 x Ir for trip class 20, 480-480 s at 1.5 x Ir for trip class 20, 10-10 s at 7.2 x Ir for trip class 10, 13.5-13.5 s at 6 x Ir for trip class 10, 240-240 s at 1.5 x Ir for trip class 10, 5-5 s at 7.2 x Ir for trip class 5, 6.5-6.5 s at 6 x Ir for trip class 5, 120-120 s at 1.5 x Ir for trip class 5
Electrical data recording maintenance indicators
Long time delay adjustment type adjustable
Complementary motor protection underload, current unbalance, stalled rotor, protracted starting time
Ground-fault time delay adjustment type -tg adjustable
Long time pick-up adjustment range 70...150 A
Instantaneous pick-up adjustment range 2250 A
Short-time delay adjustment type fixed
[Isd] short-time pick-up adjustment range 5...13 x Ir
Local signalling LED 95 % Ith (red) for temperature over set point, flashing LED (green) for ready to operate
Instantaneous pick-up adjustment type Ii fixed
Type of measurement energy meter
Ground-fault pick-up adjustment type adjustable
[tg] Ground-fault time delay adjustment range 0-0.4 s
Environment
Ambient air temperature for storage -40-85 °C
Electrical shock protection class class II
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 11.0 cm
Package 1 Length 15.0 cm
Package 1 Weight 538.0 g
Unit Type of Package 2 2
Number of Units in Package 2 11
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.306 kg
