SKU:

C12E3TM125B

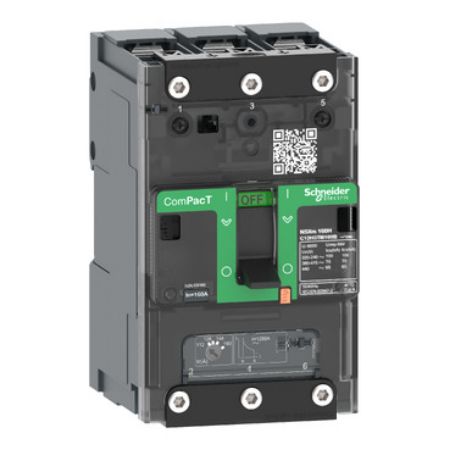

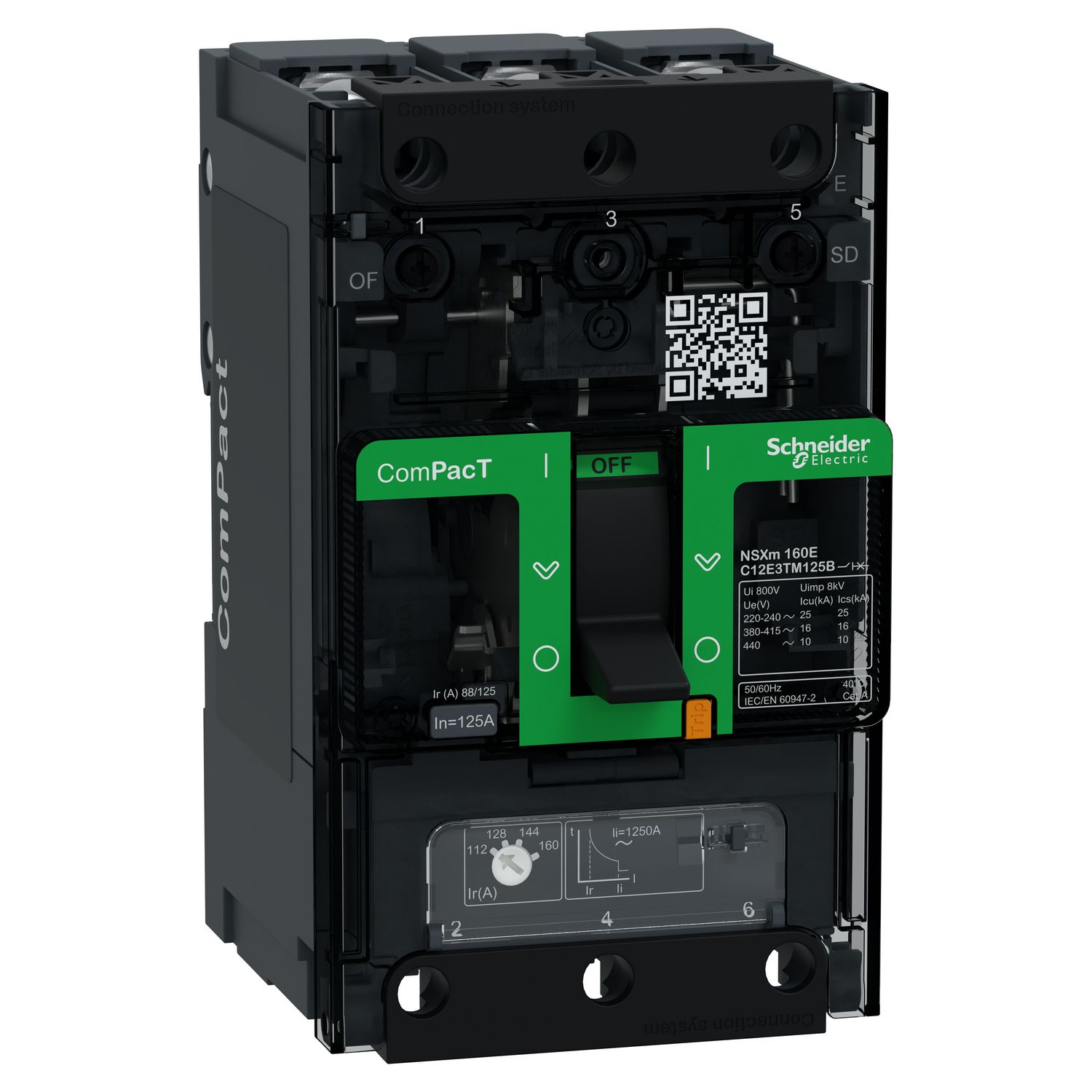

Circuit breaker, ComPacT NSXm 160E, 16kA/415VAC, 3 poles, TMD trip unit 125A, lugs/busbars

$756.17
Available for Shipping : 03-Dec-2024
Circuit breaker, ComPacT NSXm 160E, 16kA/415VAC, 3 poles, TMD trip unit 125A, lugs/busbars
  • ComPacT NSXm has smaller frame size, incorporating new features and innovations
  • ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
  • Gain up to 40% in space when using with integrated earth leakage protection
  • Reduce up to 40% mounting and cabling time
  • Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
  • DIN rail mounting product
  • EverLink connectors with patented creep compensating technology
  • New spring type auxiliaries and new wireless indication contact
Manufacturer: Schneider Electric
It is a ComPacT NSXm molded case circuit breaker, 125A, 16kA at 415VAC, for all LV standard applications. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. ComPacT NSXm is one of the smallest MCCB on the market, 81mm (W) x 137mm (H) x 80mm (D). This is a 3 poles version with an embedded thermal-magnetic trip unit. It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
