SKU:

C12E34V160B

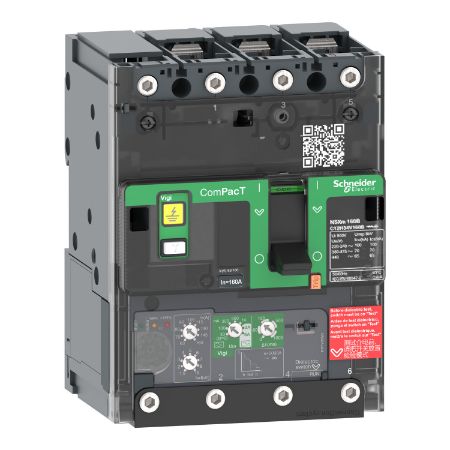

Circuit breaker, ComPacT NSXm 160E, 16kA/415VAC, 3 poles, MicroLogic 4.1 trip unit 160A, lugs/busbars

$3,149.33
Available for Shipping : 21-Nov-2024
Circuit breaker, ComPacT NSXm 160E, 16kA/415VAC, 3 poles, MicroLogic 4.1 trip unit 160A, lugs/busbars
  • ComPacT NSXm has smaller frame size, incorporating new features and innovations
  • ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
  • Gain up to 40% in space when using with integrated earth leakage protection
  • Reduce up to 40% mounting and cabling time
  • Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
  • DIN rail mounting product
  • EverLink connectors with patented creep compensating technology
  • New spring type auxiliaries and new wireless indication contact
Manufacturer: Schneider Electric

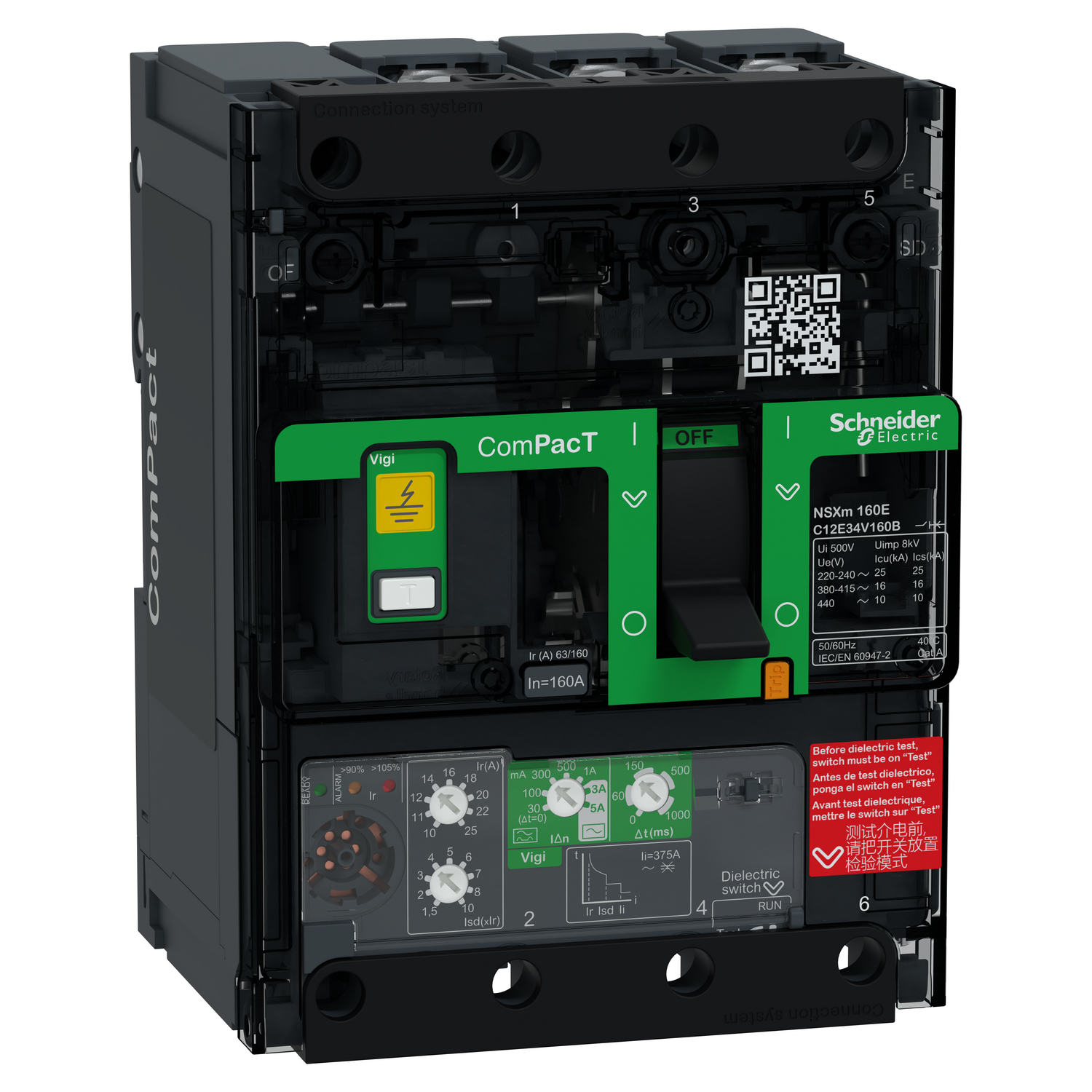

ComPacT NSXm160E is a complete 3P fixed circuit breaker designed to optimize space and breaking capacity. The breaking capacity (Icu) is 16kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. It introduces new features like Everlink connectors technology. It offers built-in DIN rail & plate mounting capability and spring type auxiliaries externally visible. This 3 poles Earth Leakage Circuit Breaker (ELCB) is one of the smallest on the market. The dimensions are 108mm (W) x 144mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
