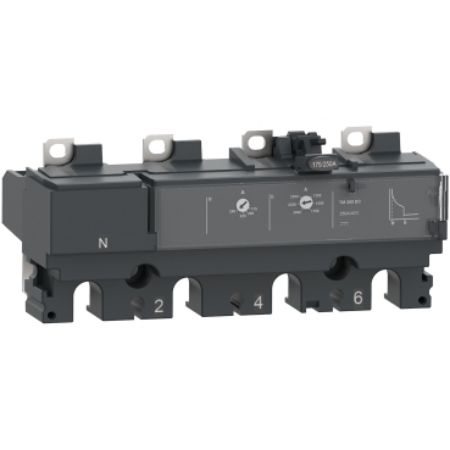

Picture of Trip unit TM80DC, ComPacT NSX100 DC, 4 poles, thermal magnetic protections, 80A rating
SKU:

C104TM080D

Trip unit TM80DC, ComPacT NSX100 DC, 4 poles, thermal magnetic protections, 80A rating

Old price: $361.90 INC GST
$296.03 INC GST
Available for Shipping : 27-Jan-2026
Trip unit TM80DC, ComPacT NSX100 DC, 4 poles, thermal magnetic protections, 80A rating
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
Environmental Disclosure
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet

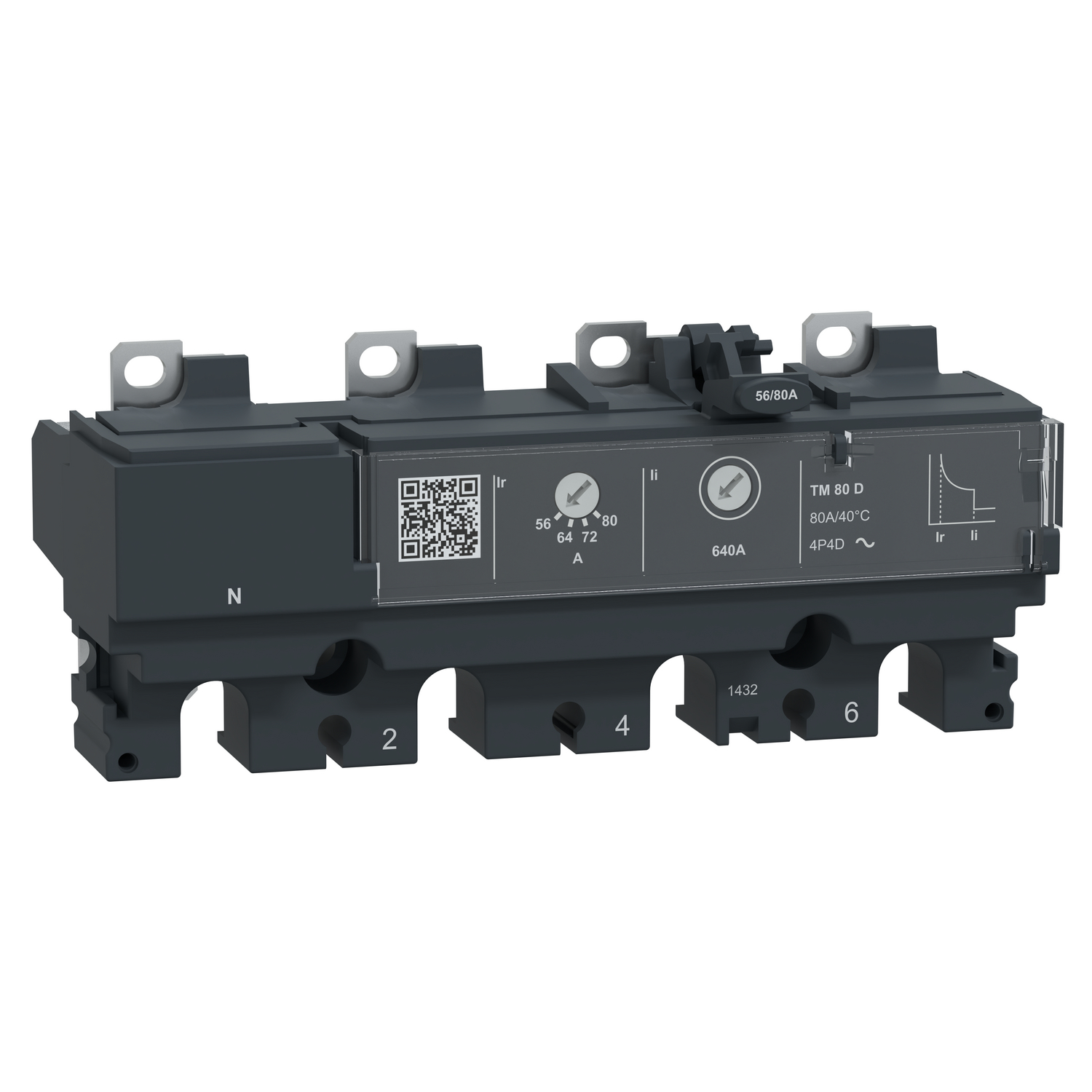

TM80DC is a 4 poles thermal-magnetic trip unit used on ComPacT NSX 100DC circuit breakers. This 80A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. The rated current is 80A and the operational voltage is 750VDC. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute name Attribute value
Main
Trip unit technology thermal-magnetic
Device application distribution
Range compatibility ComPacT new generation NSX100 DC
Poles description 4P
Mounting mode fixed
Range ComPacT new generation
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Product or component type trip unit
Protected poles description 4D
Network type DC
Trip unit protection functions LI
[Ue] rated operational voltage 750 V DC
Range of product ComPacT NSX100...250 DC new generation
Trip unit name TM-D
[In] rated current 80 A at 40 °C
Complementary
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Instantaneous pick-up adjustment range 800 A
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Earth-leakage protection without
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
Electrical shock protection class class II
IP degree of protection IP40 conforming to IEC 60529
Standards EN/IEC 60947-2
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 9.5 cm
Package 1 Length 15 cm
Package 1 Weight 543 g
Unit Type of Package 2 2
Number of Units in Package 2 23
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 12.872 kg

Related products

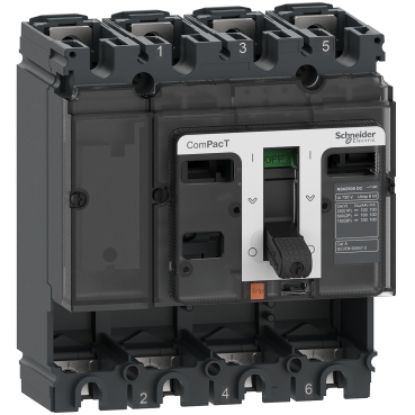

Picture of Circuit breaker basic frame, ComPacT NSX100F DC, 36kA/750VDC, 4 poles, 100A frame rating, without trip unit
