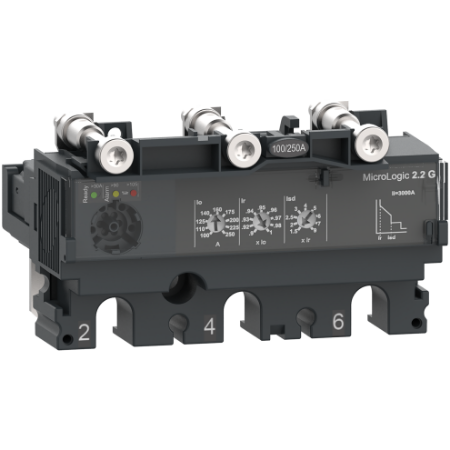

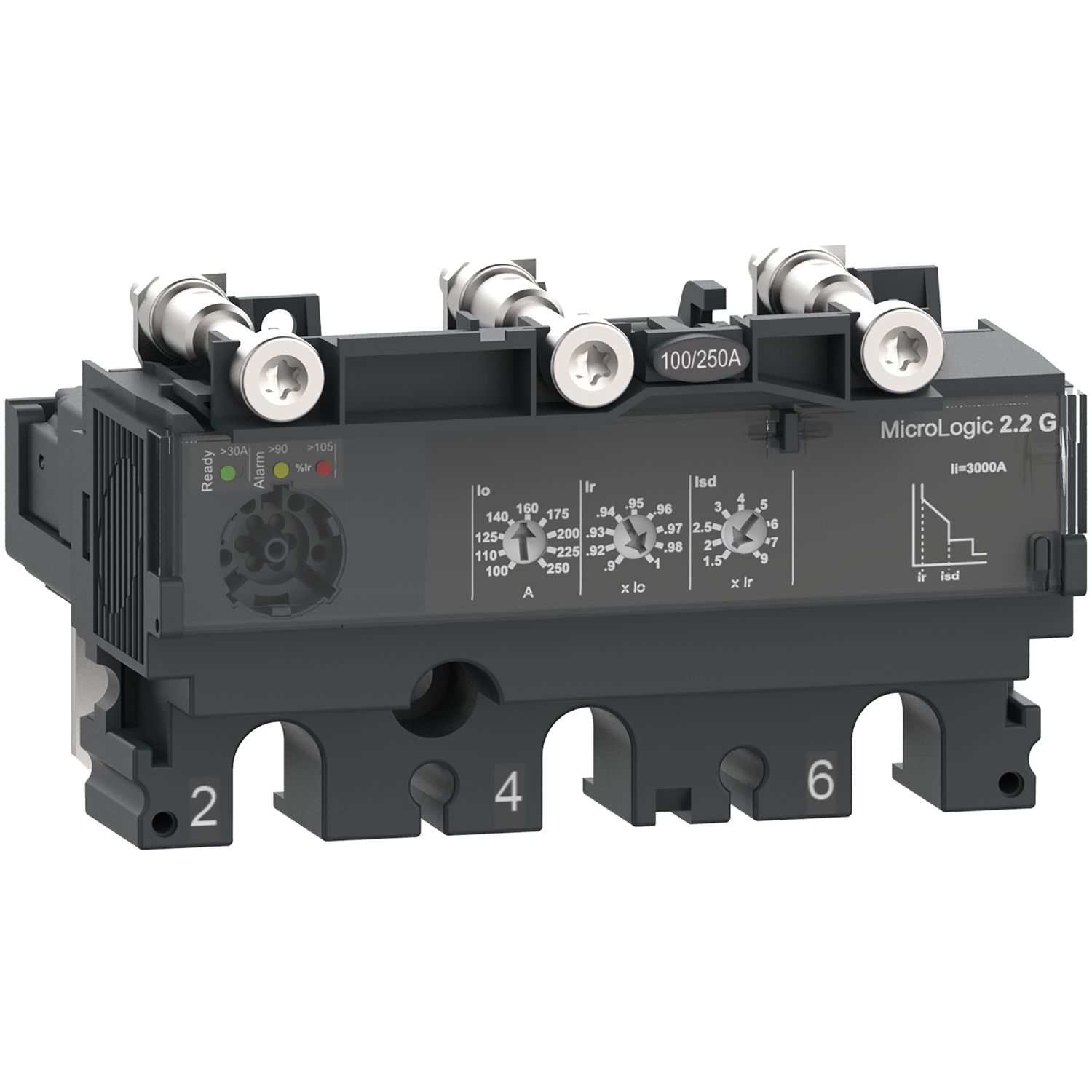

Picture of Trip unit MicroLogic 2.2G, ComPacT NSX100/160/250, 3 poles, electronic basic protections, generator protection, 40A
SKU:

C1032G040

Trip unit MicroLogic 2.2G, ComPacT NSX100/160/250, 3 poles, electronic basic protections, generator protection, 40A

Old price: $741.40 INC GST
$606.47 INC GST
Available for Shipping : 09-Feb-2026
Trip unit MicroLogic 2.2G, ComPacT NSX100/160/250, 3 poles, electronic basic protections, generator protection, 40A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 09-Feb-2026
Catalog
Instruction sheet
User guide
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This MicroLogic 2.2 G is a 3 poles 3d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 40A rating electronic trip unit is an optimum choice for generator protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.2 G indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application generator
Range compatibility ComPacT new generation NSX250, ComPacT new generation NSX160, ComPacT new generation NSX100
Mounting mode fixed
Range ComPacT new generation
Protection type I : for instantaneous short-circuit protection, So : for short time short-circuit protection with fixed delay, L : for overload protection (long time)
Protected poles description 3D
Range of product ComPacT NSX100...250 new generation
Trip unit name MicroLogic 2.2 G
Trip unit technology electronic
Poles description 3P
Product or component type trip unit
Network type AC
Trip unit protection functions LSoI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 40 A at 40 °C
Network frequency 50/60 Hz
Complementary
Short-time pick-up adjustment type Isd adjustable
Long time pick-up adjustment type Ir adjustable 9 settings
Long time pick-up adjustment range 18...40 A
Instantaneous pick-up adjustment range 600 A
Short-time delay adjustment type fixed
Zone selective interlocking ZSI without
Earth-leakage protection without
Thermal memory 20 minutes before and after tripping
[Isd] short-time pick-up adjustment range 1.5...9 x Ir
Local signalling LED 90 % Ir (orange) for overload, LED 105 % Ir (red) for overload, flashing LED (green) for ready to operate
[tr] long-time delay adjustment range 0.5-0.5 s at 6 x Ir, 0.35-0.35 s at 7.2 x Ir, 15-15 s at 1.5 x Ir
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 14.500 cm
Package 1 Length 21.000 cm
Package 1 Weight 555.500 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 15.974 kg
Unit Type of Package 3 3
Number of Units in Package 3 224
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 139.792 kg
