BMXXBP1200H

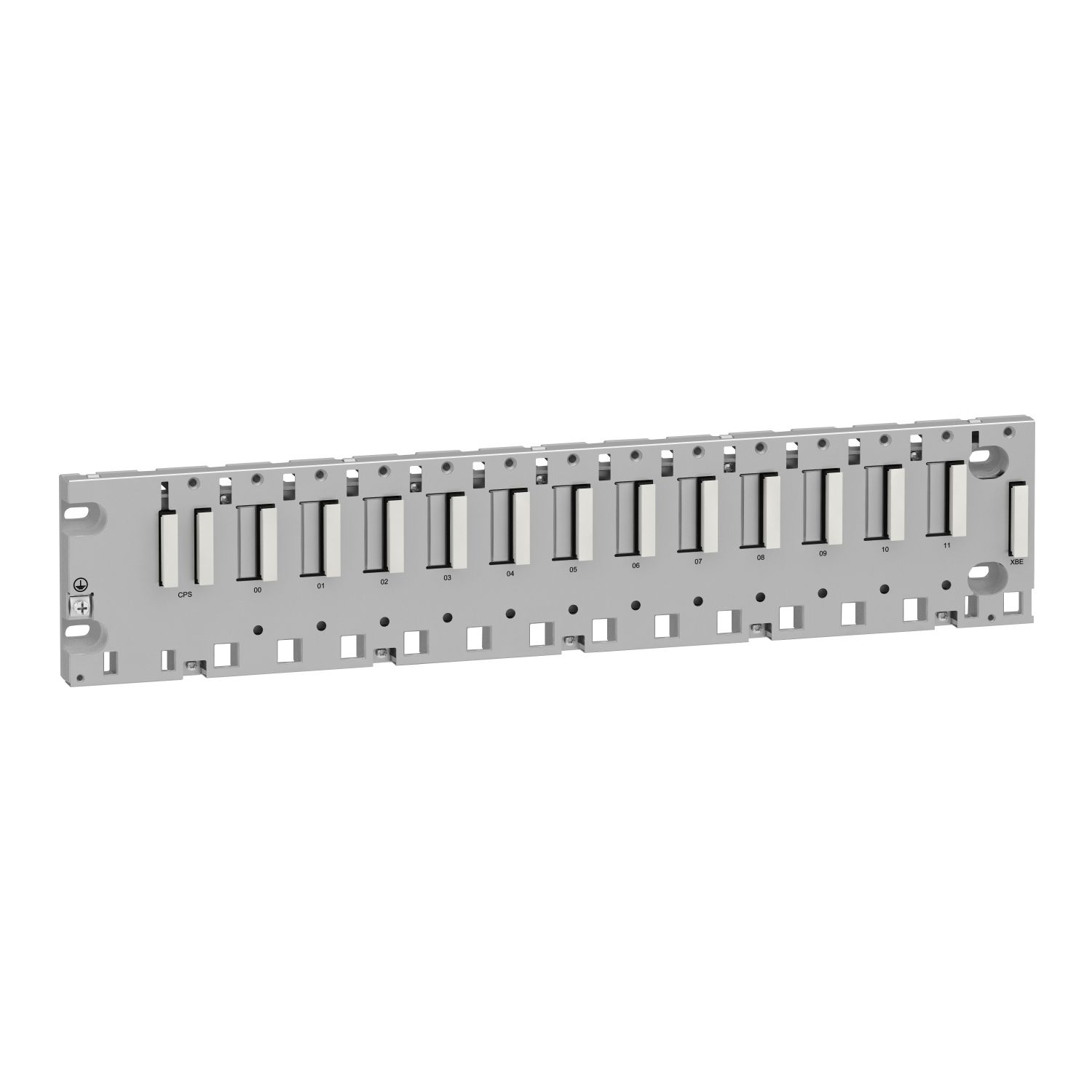

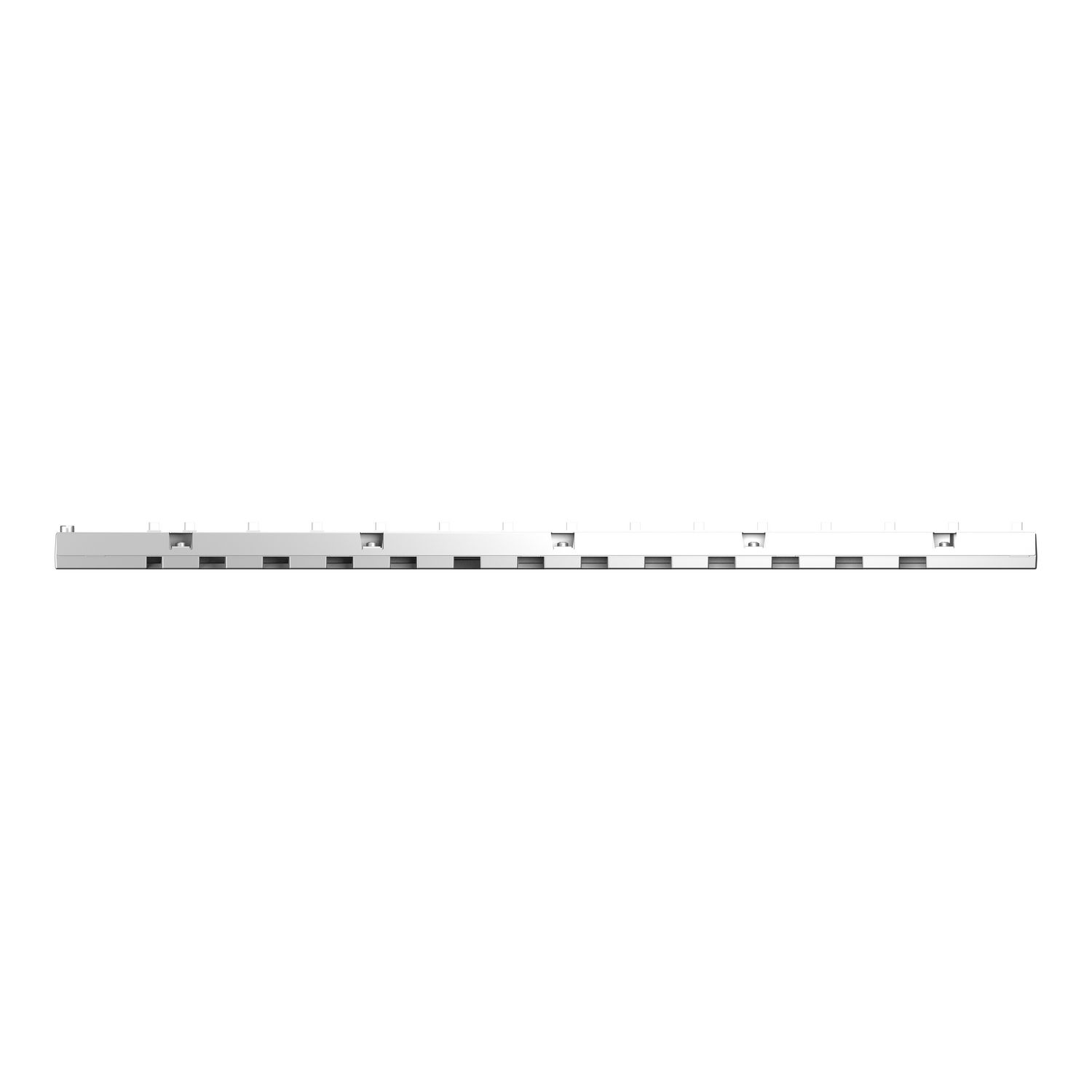

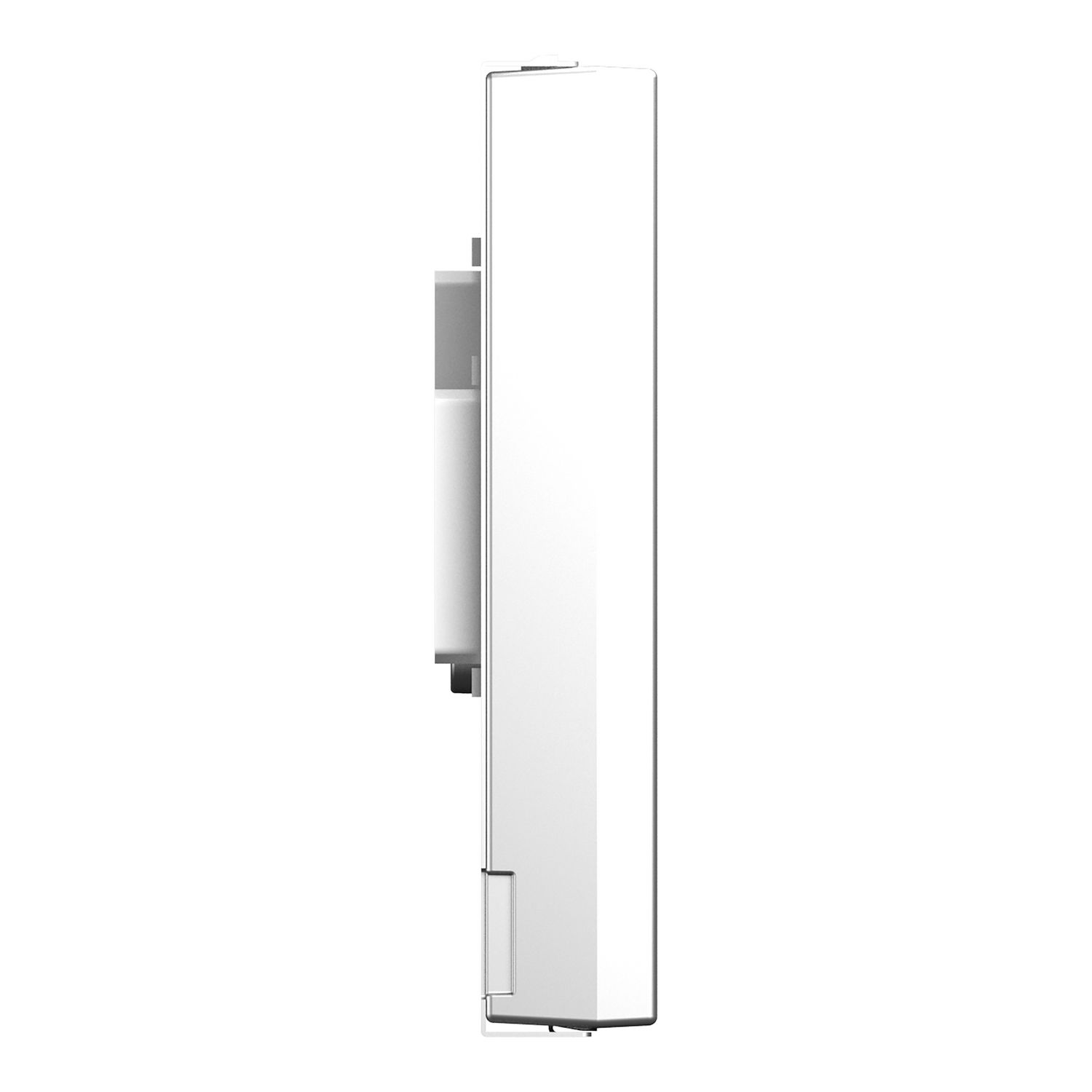

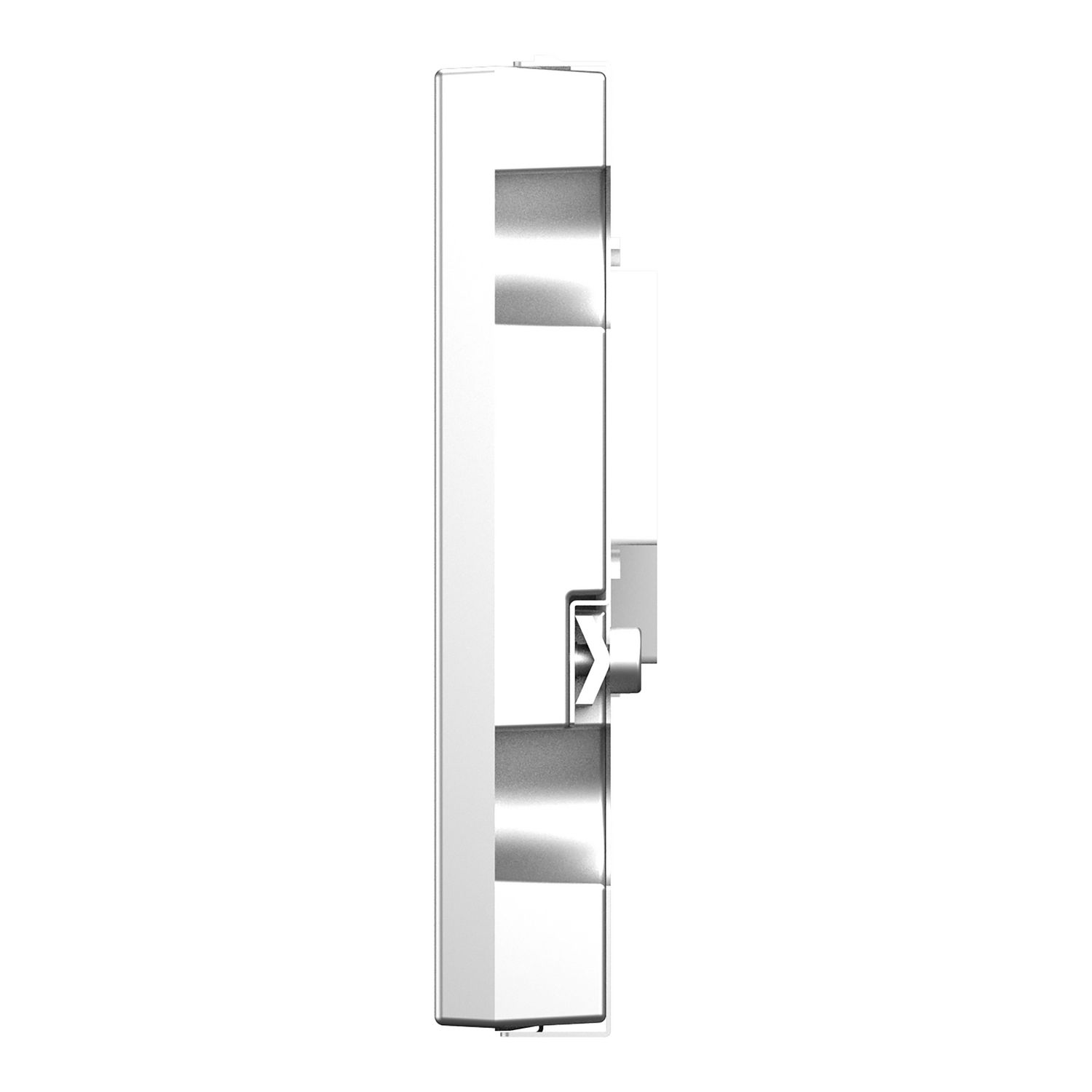

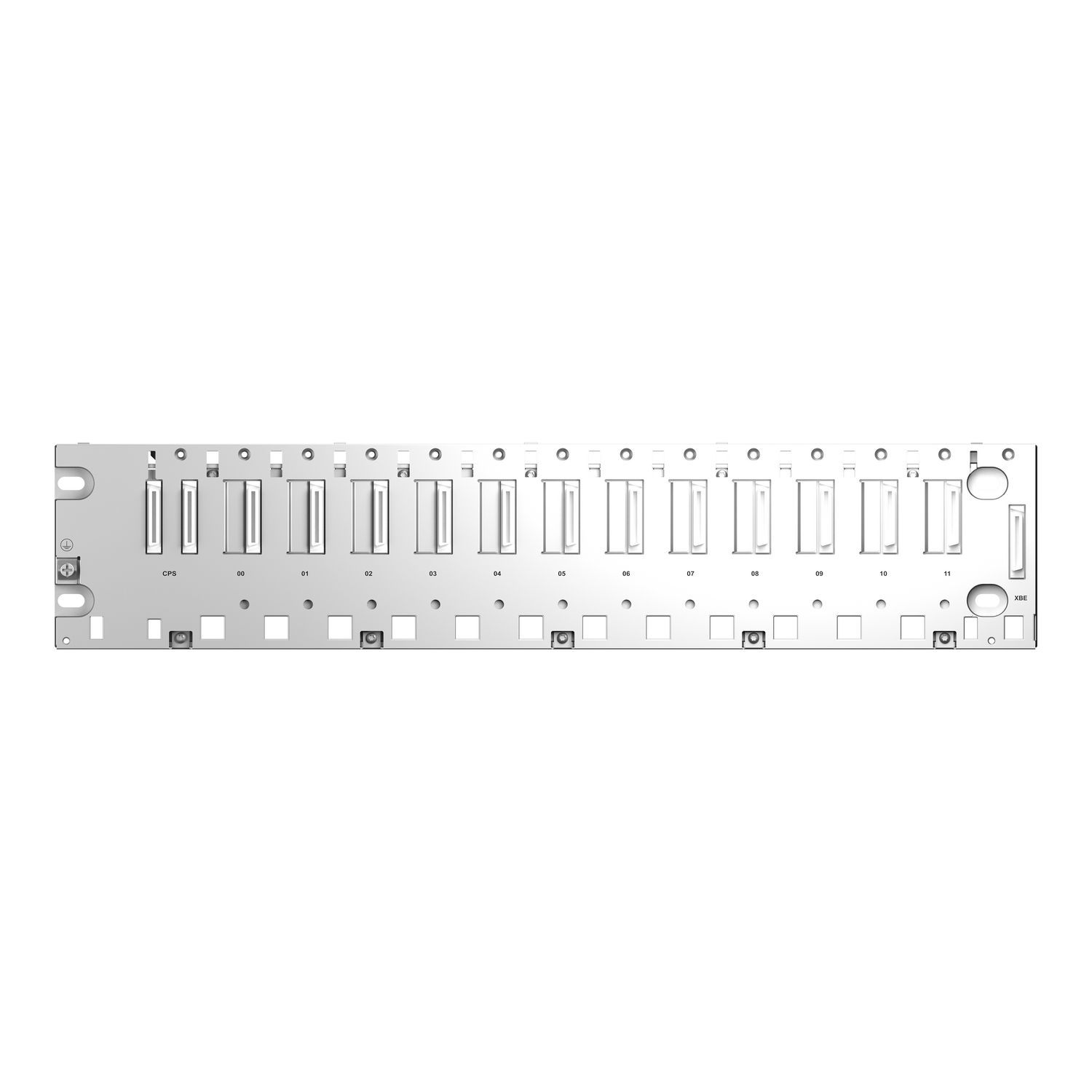

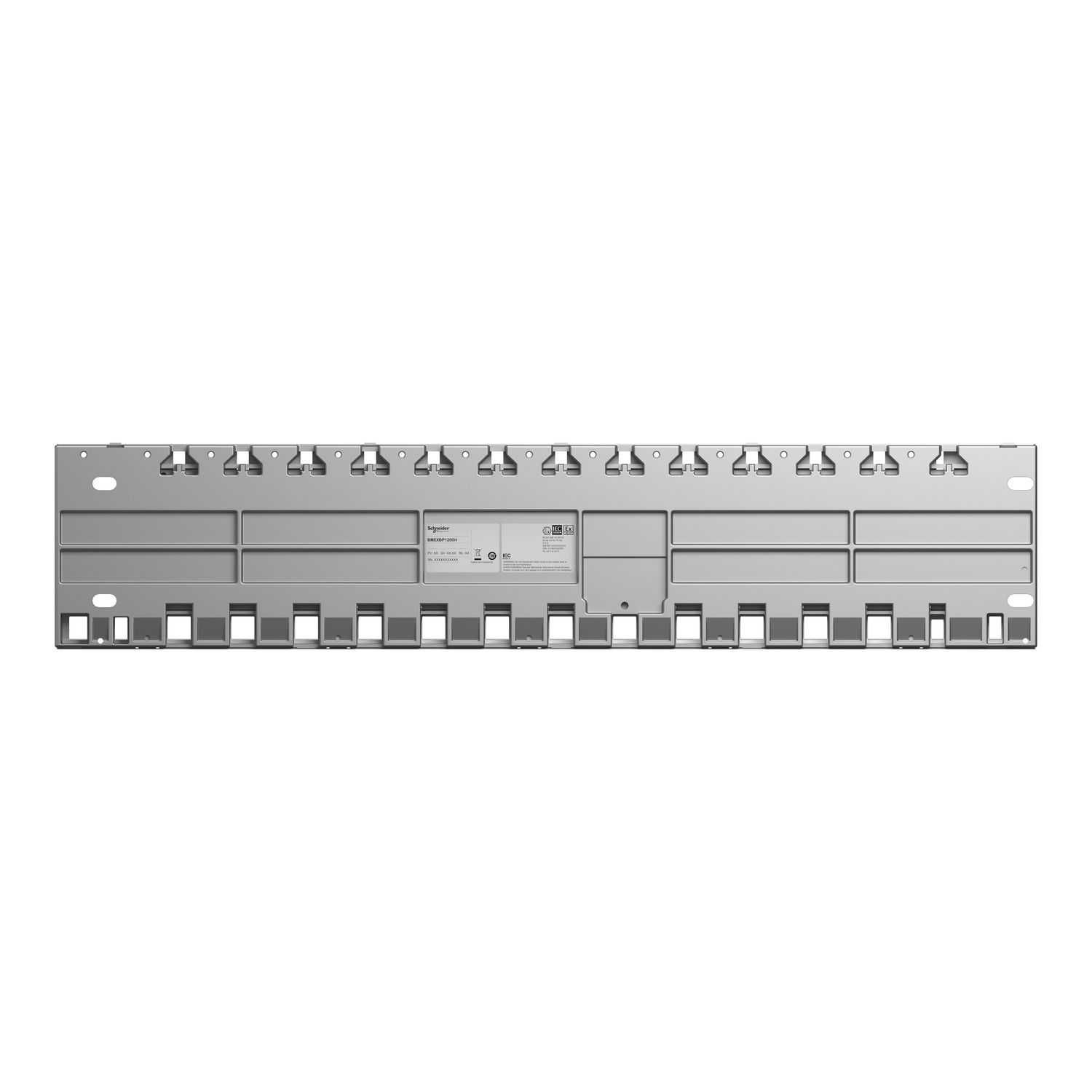

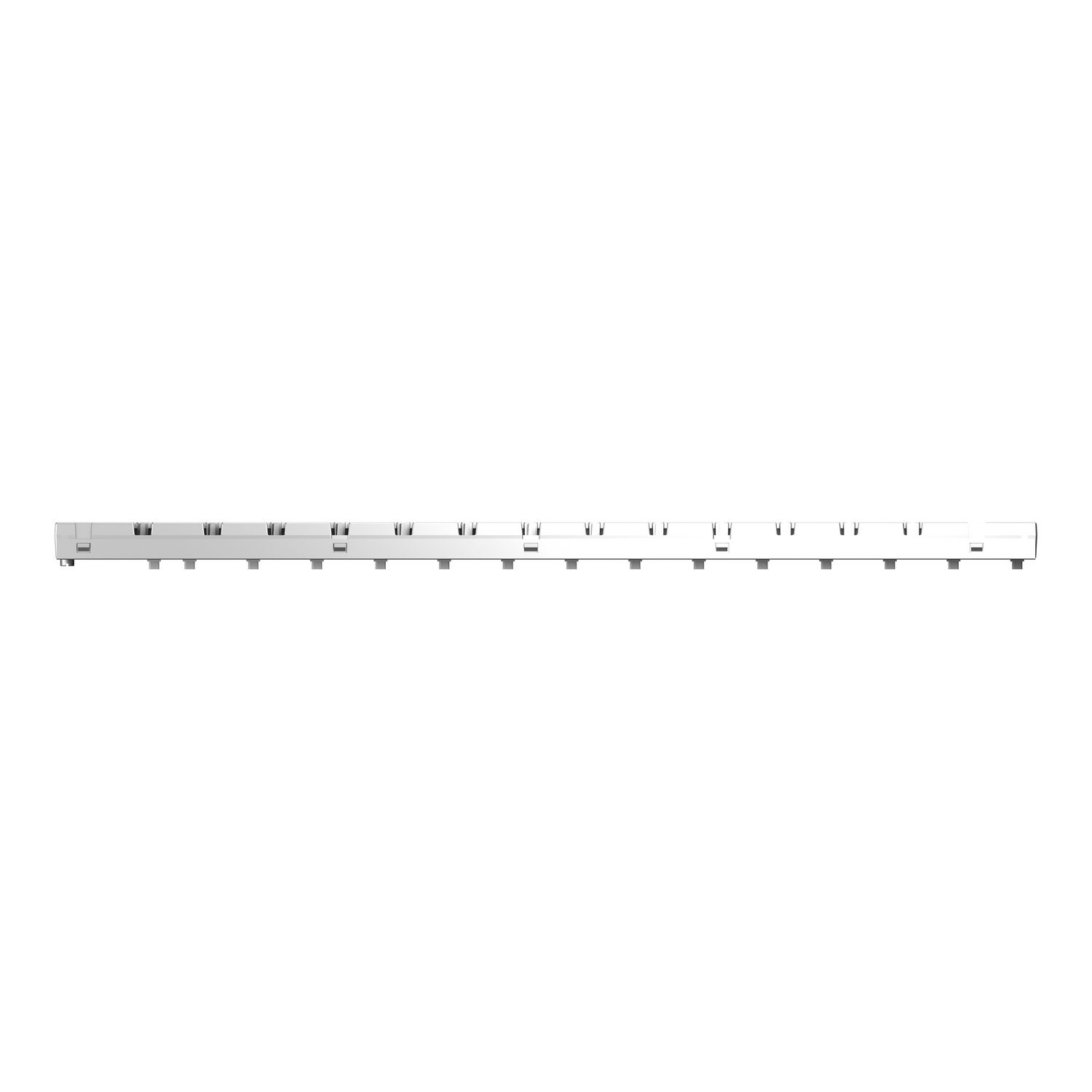

Backplane, Modicon X80, 12 slots, panel, mounting plate mounted, ruggedized

$1,480.05 INC GST

Qty:

Available for Shipping : 12-Jan-2026

Product Selector

Backplane, Modicon X80, 12 slots, panel, mounting plate mounted, ruggedized

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 12-Jan-2026

Catalog

User guide

CAD

Environmental Disclosure

Circularity Profile

Declaration of conformity

Instruction sheet

Product Page Link

Product Data Sheet

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 12 bus X slots. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a power of 0.74W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 1.27kg. It is suitable for severe environments, medium to large process applications. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply and BMXP34 processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon X80
Product specific application	for severe environments
Product or component type	ruggedized backplane
Complementary
Product compatibility	specific application module, I/O module, BMXCPS power supply, BMXP34 processor
Power consumption in W	0.83 W
Height	103.7 mm
Fixing mode	by 4 M4/M5/M6 screws, mounting on mounting plate, by 4 M4/M5/M6 screws, mounting on panel
Depth	19 mm
Width	503.2 mm
Net weight	1.27 kg
Number of slots	12 bus X
Electrical connection	1 connector (XBE) expansion module
Environment
IP degree of protection	IP20
Protective treatment	conformal coating
Relative humidity	10-95 % without condensation
Directives	2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, UKCA, EAC, RCM, CSA, UL, CE
Standards	EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation	-25-70 °C
Environmental characteristic	hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.500 cm
Package 1 Width	15.200 cm
Package 1 Length	58.500 cm
Package 1 Weight	1.326 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	11.555 kg
