SKU:

BMXXBP0600

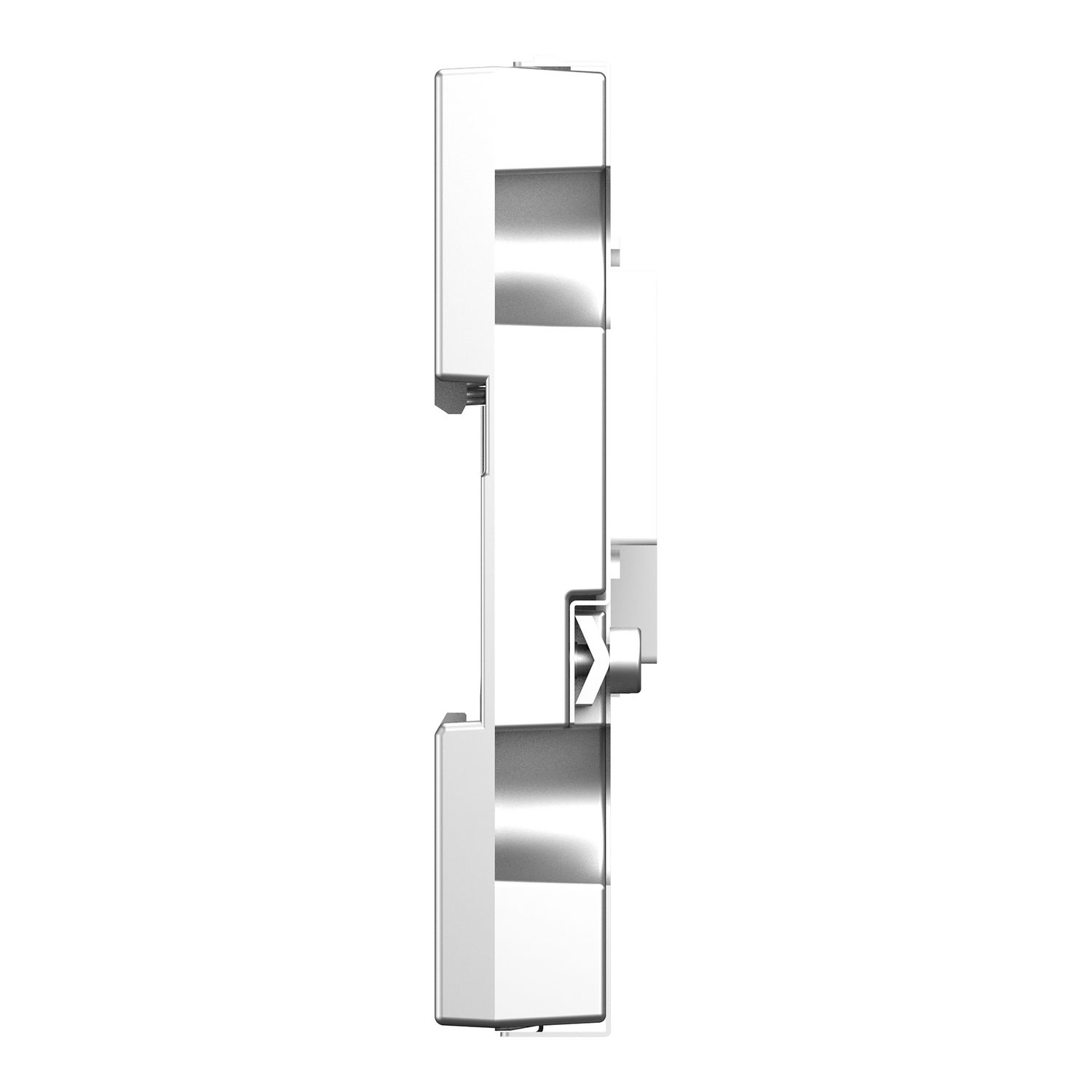

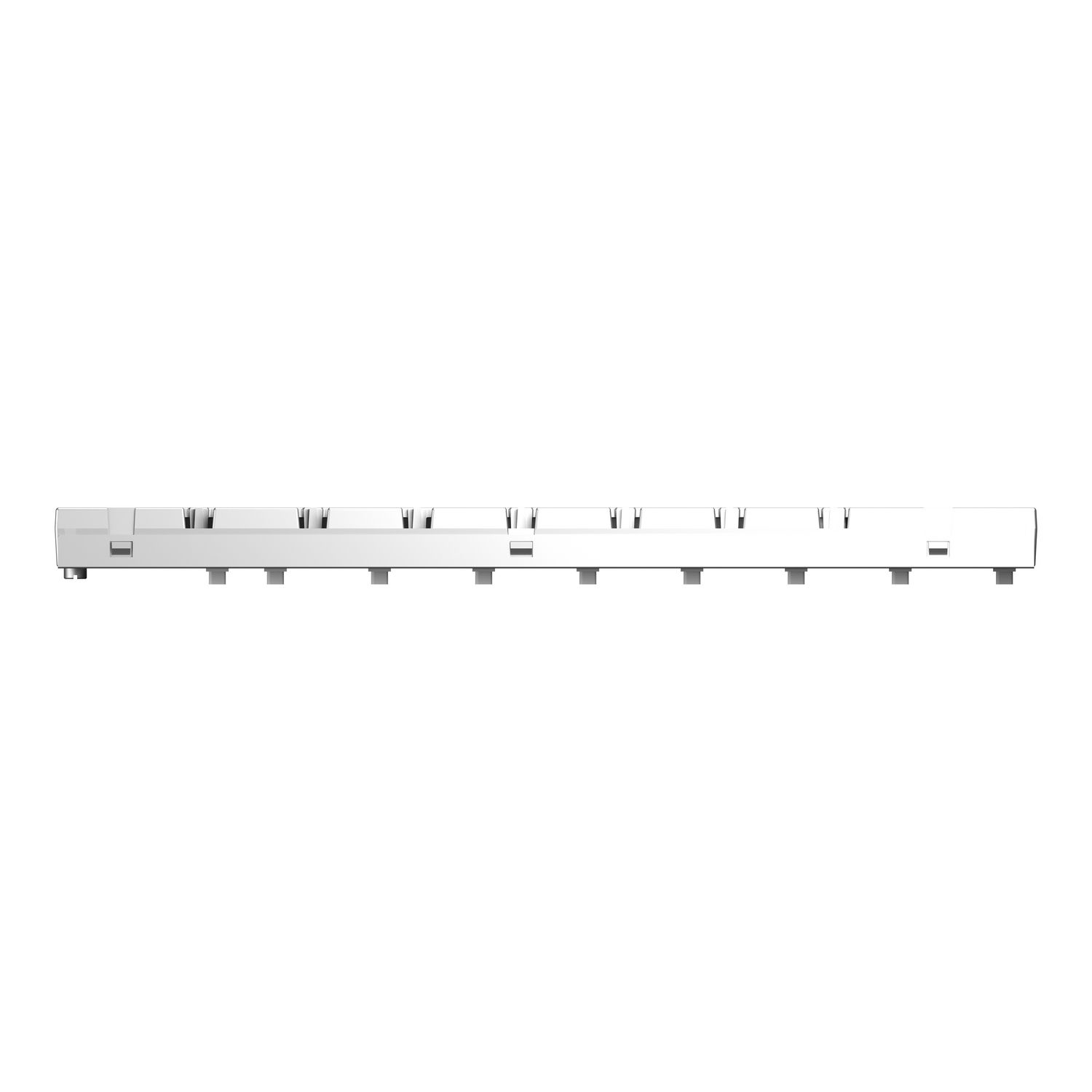

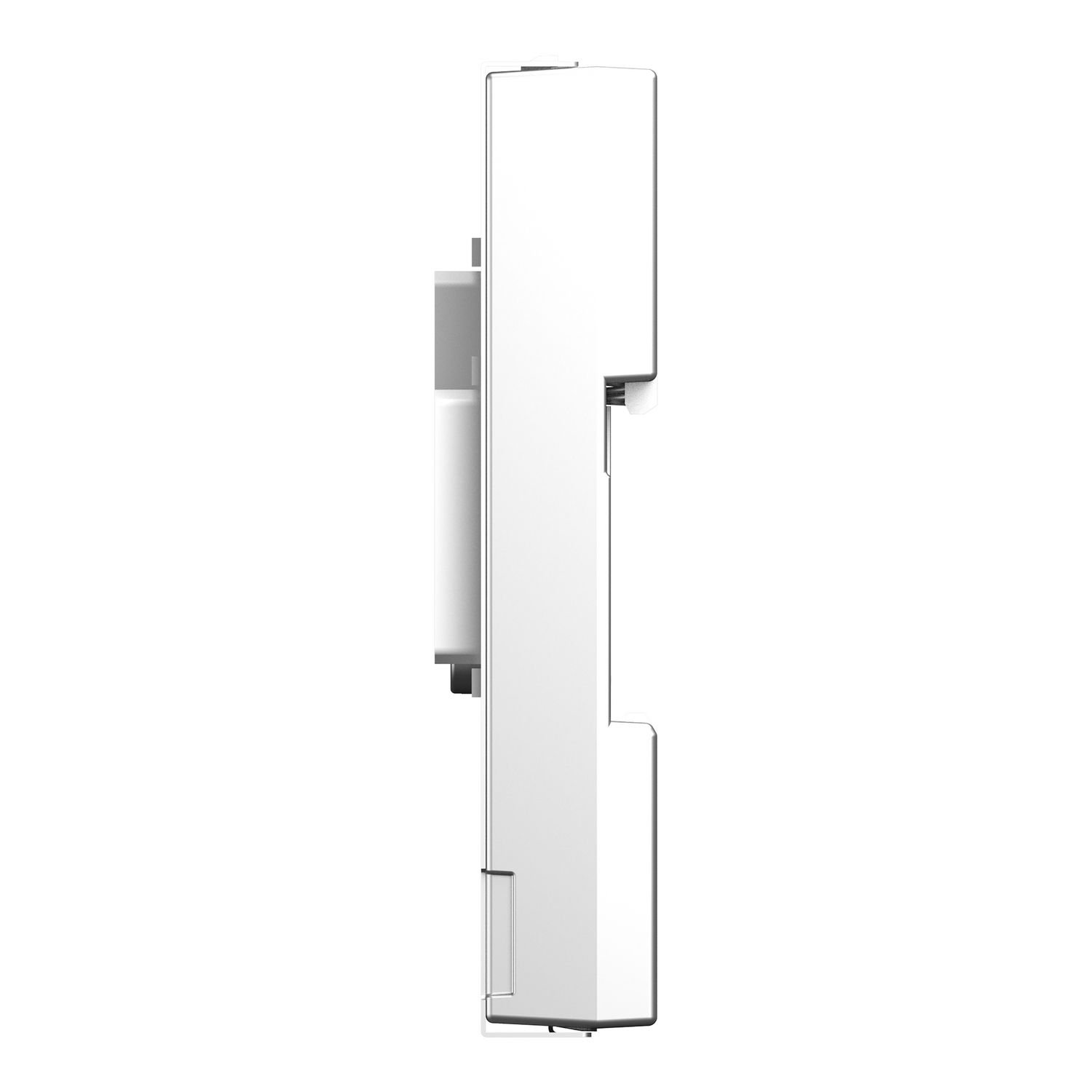

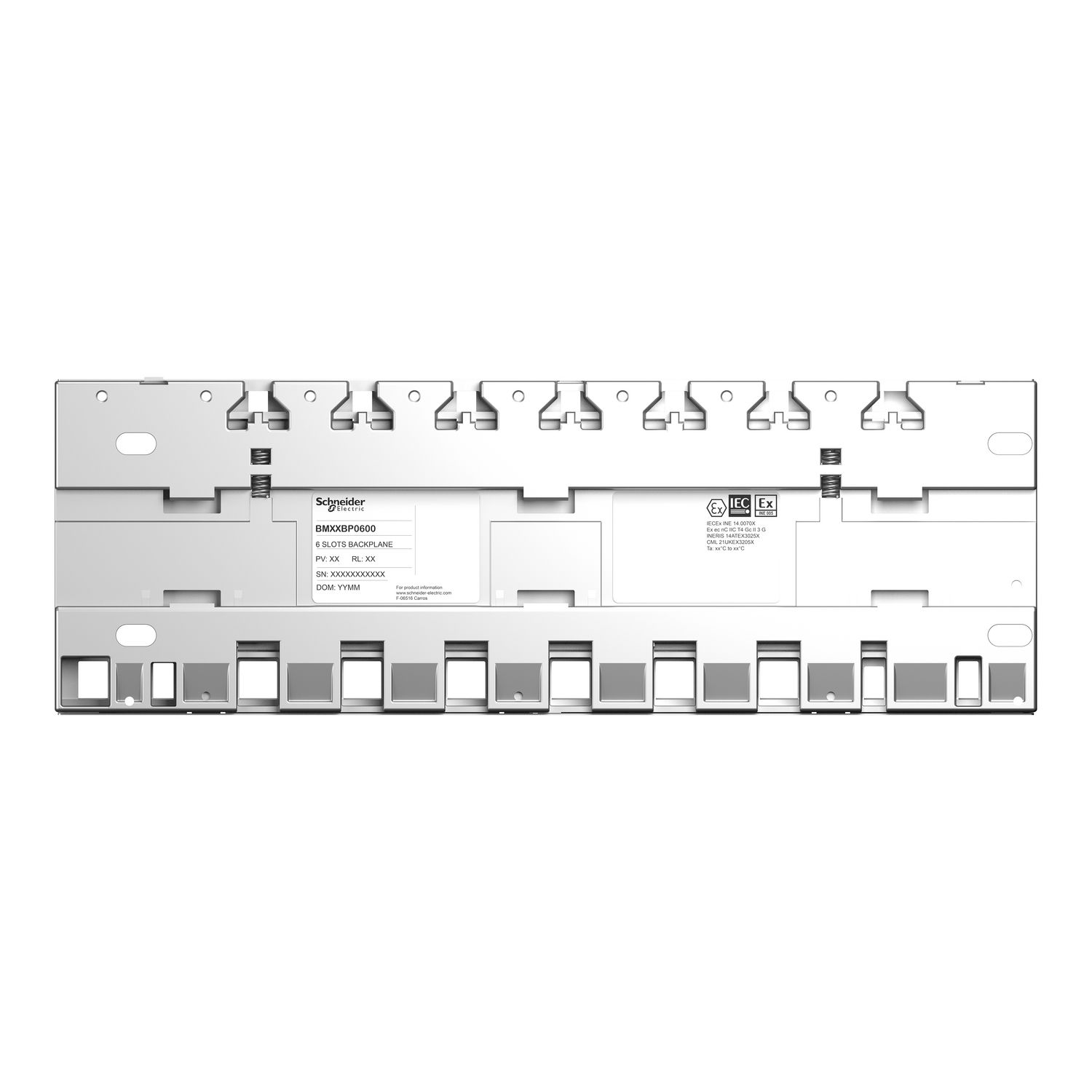

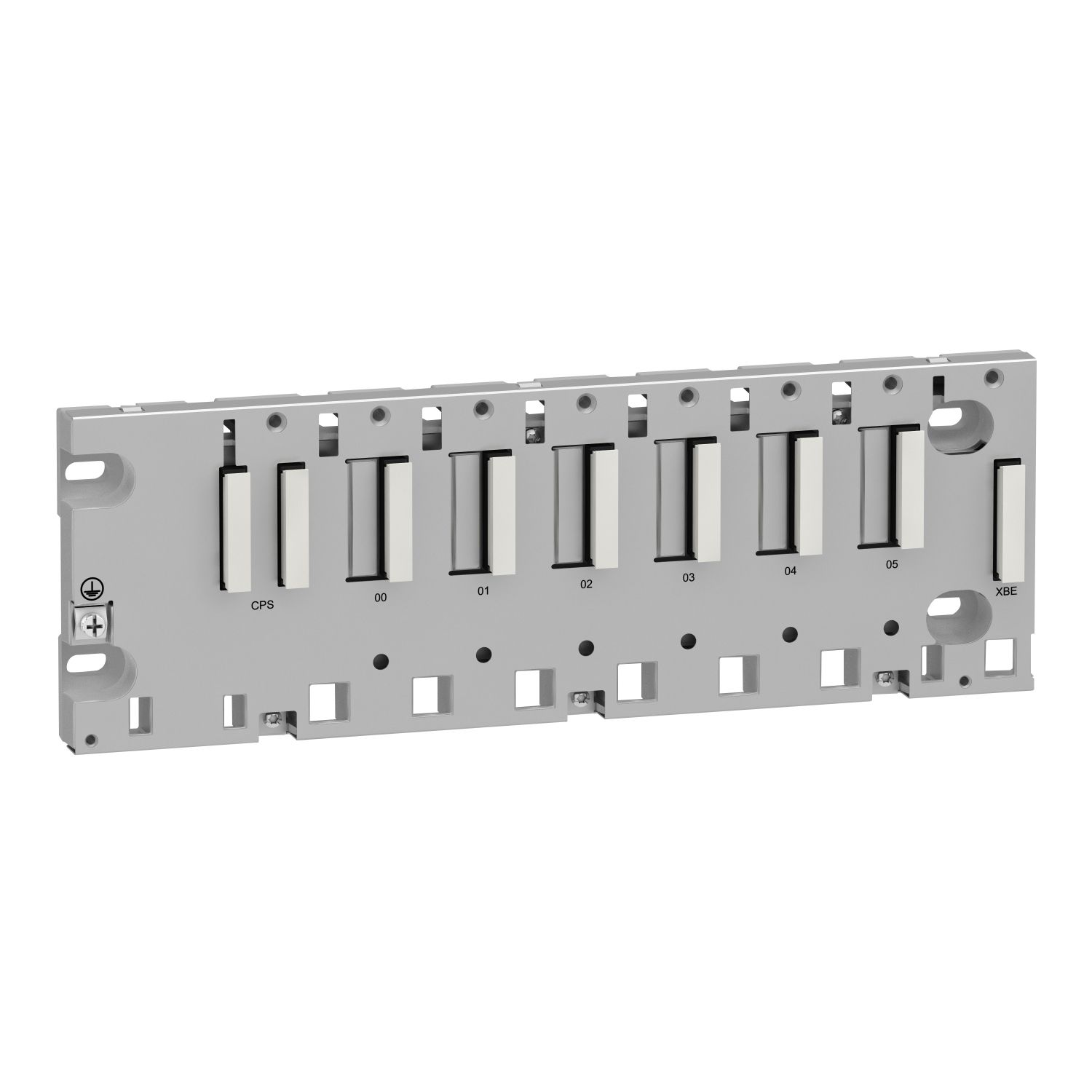

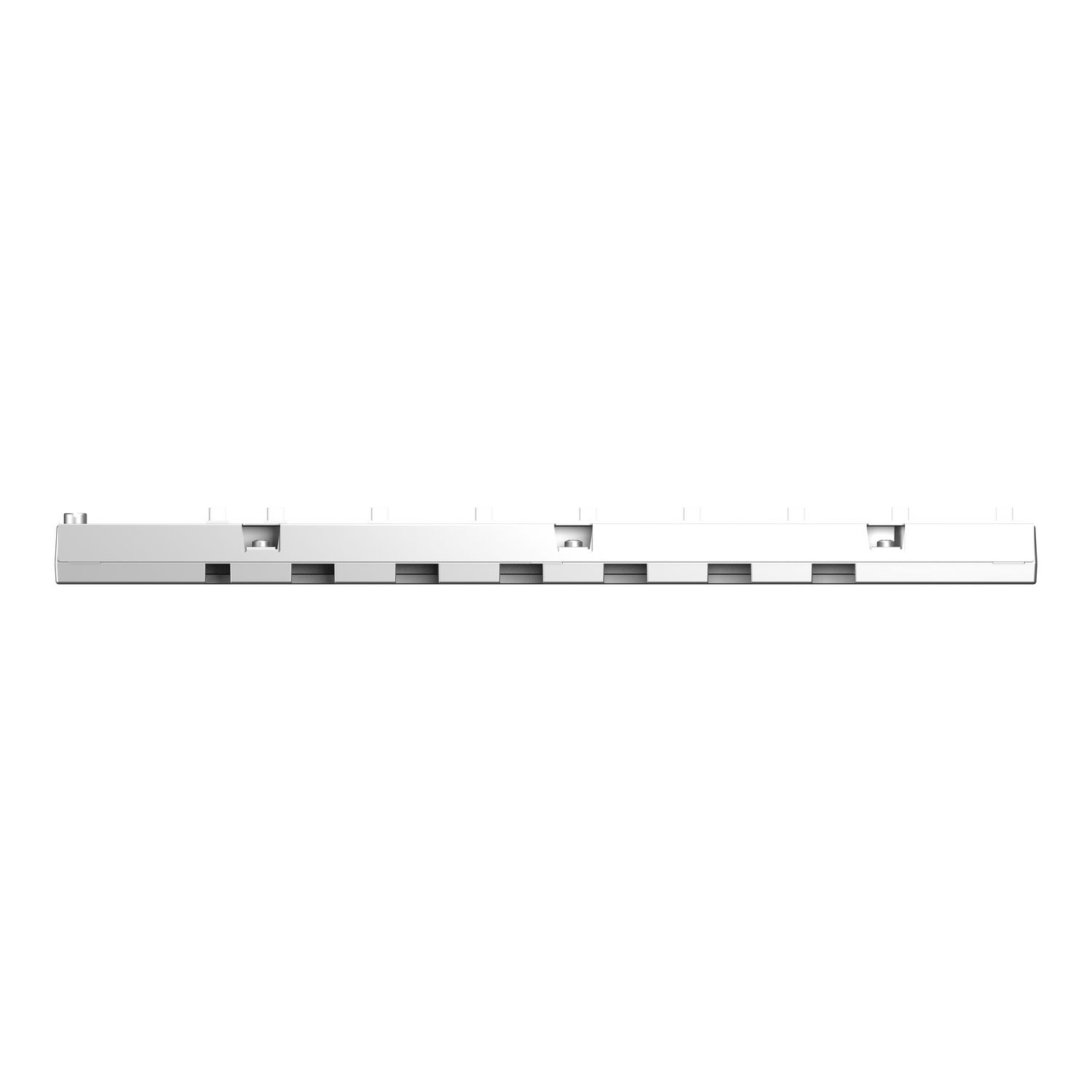

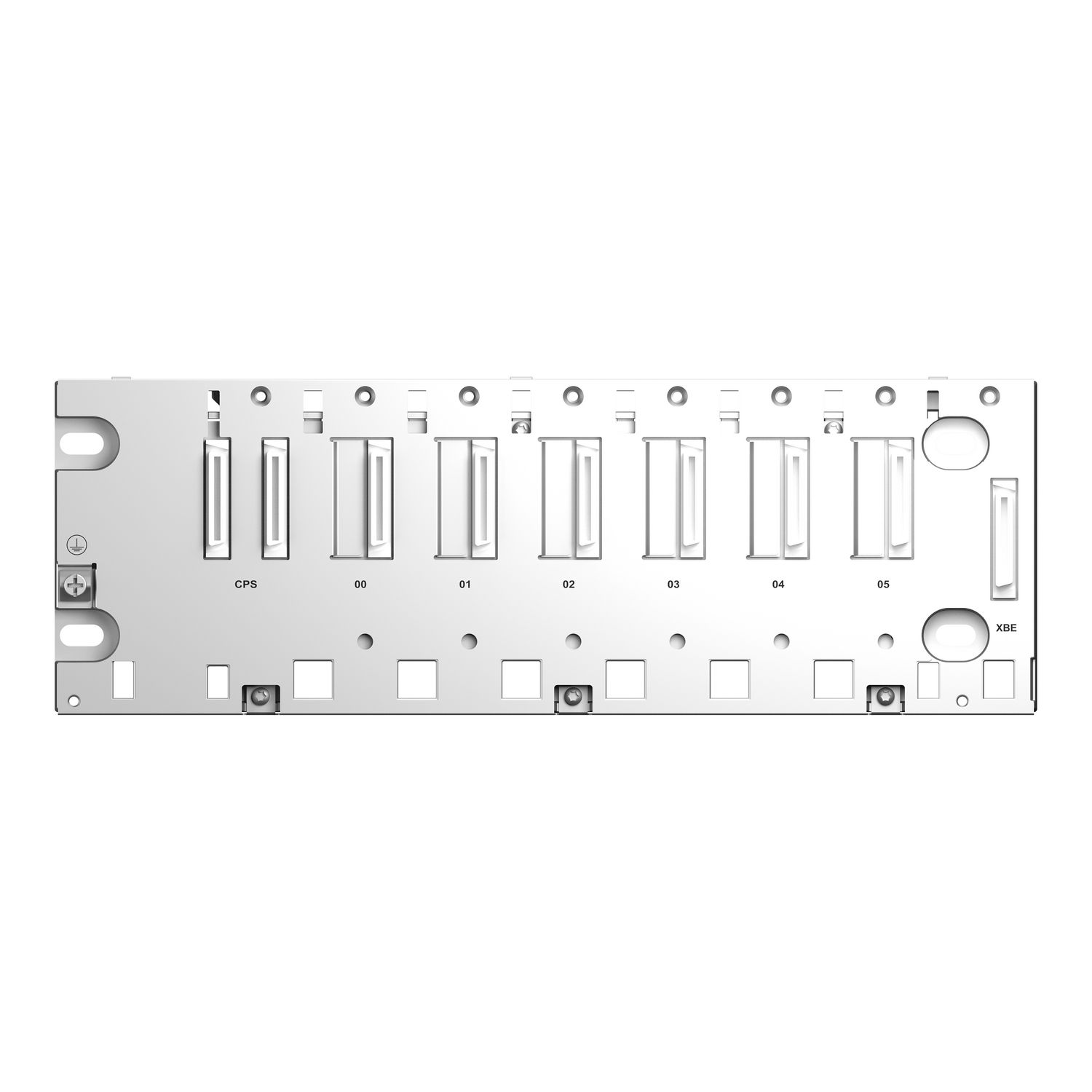

Backplane, Modicon X80, 6 slots, panel, mounting plate or DIN rail mounting

$566.09 INC GST

Qty:

Available for Shipping : 08-Dec-2025

Product Selector

Backplane, Modicon X80, 6 slots, panel, mounting plate or DIN rail mounting

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

User guide

Environmental Disclosure

Declaration of conformity

Circularity Profile

CAD

Product Page Link

Product Data Sheet

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 6 bus X slots. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a power of 1.5W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 0.79kg. It is suitable for medium to large process applications. This Ethernet backplane rack is compatible with BMXP34 processor, I/O module, specific application module and BMXCPS power supply. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon X80
Product or component type	backplane
Complementary
Product compatibility	specific application module, I/O module, BMXCPS power supply, BMXP34 processor
Power consumption in W	1.68 W
Height	103.7 mm
Fixing mode	by clips, mounting on 35 mm symmetrical DIN rail, by 4 M4/M5/M6 screws, mounting on mounting plate, by 4 M4/M5/M6 screws, mounting on panel
Depth	19 mm
Width	307.6 mm
Net weight	0.79 kg
Number of slots	6 bus X
Electrical connection	1 connector (XBE) expansion module
Environment
IP degree of protection	IP20
Relative humidity	10-95 % without condensation
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	Merchant Navy, UKCA, EAC, RCM, CSA, UL, CE
Standards	EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation	0-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.700 cm
Package 1 Width	15.300 cm
Package 1 Length	39.500 cm
Package 1 Weight	835.000 g
Unit Type of Package 2	2
Number of Units in Package 2	9
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	8.385 kg
Unit Type of Package 3	3
Number of Units in Package 3	36
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	45.540 kg
